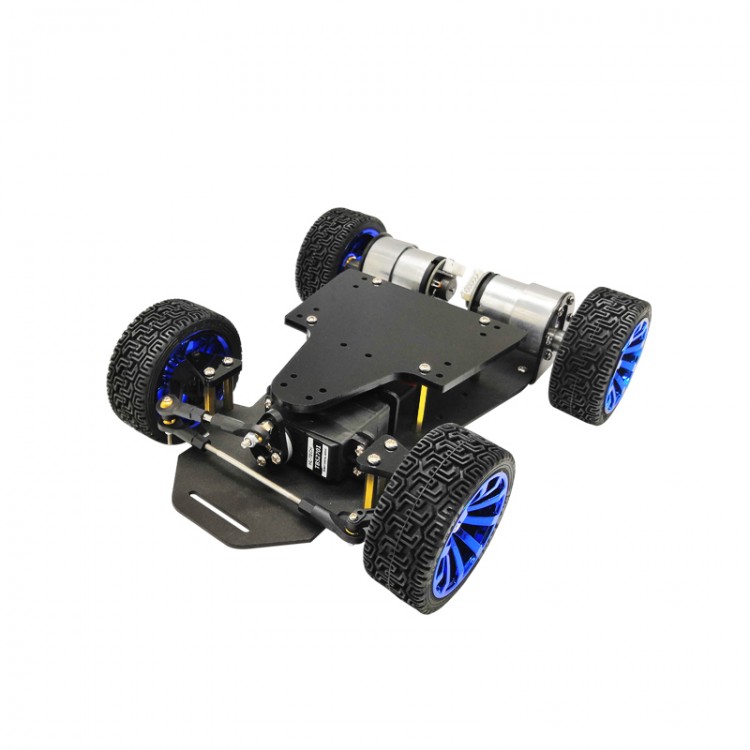

RC Car Chassis Smart Robot Chassis Assembled Faster Version Servo Steering With Encoder Motor

RC Car Chassis Smart Robot Chassis Assembled Faster Version Servo Steering With Encoder Motor

Features:
- Assembled RC car chassis model
- Dual-motor drive
- Steering gear steering structure
- Aluminum alloy bottom plate
- Premium anti-skid tires

Car Model Related Parameters:
- Base plate material: aluminum alloy
- Steering mode: steering of front wheel servo
- Drive mode: dual-motor drive for rear wheels, active differential is also possible
- Motor power: 7W
- Motor working voltage: 5-12V
- Encoder working voltage: 5V
- Servo working voltage: faster version (4.8-8V)
- Encoder accuracy: one gear revolution, 1560 transition edges for the standard version, 520 transition edges for the faster version
- Tires: 65mm high-quality anti-skid tires

Faster Version:
- Motor speed: 1500rpm
- Motor speed ratio: 1:10
- Maximum speed: 3 m/s
- Load capacity: 1.5kg
- Servo model: TBS-2701
- Servo torque: 17kg.cm

Attention:
Its motors run faster, the maximum speed can reach 4m/s, especially suitable for racing competitions. The above parameters are tested at 12V battery power supply. Battery is not included.

TBS-2701 Metal Digital Servo:
- N.W.: 60g
- Product size: 40x20x40.5mm
- Rotation speed: 0.16sec/60° (6v)
- Servo accuracy: 0.24°
- Locked-rotor torque: 15kg.cm (6.6v)
- Number of gear teeth: 25T
- Gear type: metal
- Power supply voltage: 4.8-8.4V
- Rotation angle: 270° adjustable speed
- Control method: PWM pulse signal
- Pulse width range: 0.5ms-2.5ms
- Control cycle: 20ms
- No-load current: 100mA
- Product line length: 30cm

Servo Summary:
Compared with MG996 servo, TBS2701 is suitable for racing with better performance. There is no difference in appearance between the two servos. The main difference between the two is the internal gear set and internal control chip in the servo.


Encoder Motor:
A dual-channel Hall encoder is added to the motor. In addition to CW and CCW of motor, you can control the motors to start, stop and control motors' speed. With dual-channel Hall encoder, it can measure the speed of the motor and judge their working direction, which can be controlled by PID closed loop. If PID closed-loop control is not required, it can also be used as an ordinary motor.


Package Included:
- 1 x Set of Car Chassis

Note:
- It is assembled.
- Controller board and Li-Po battery (7.4V, 2500mAH) are not included.
