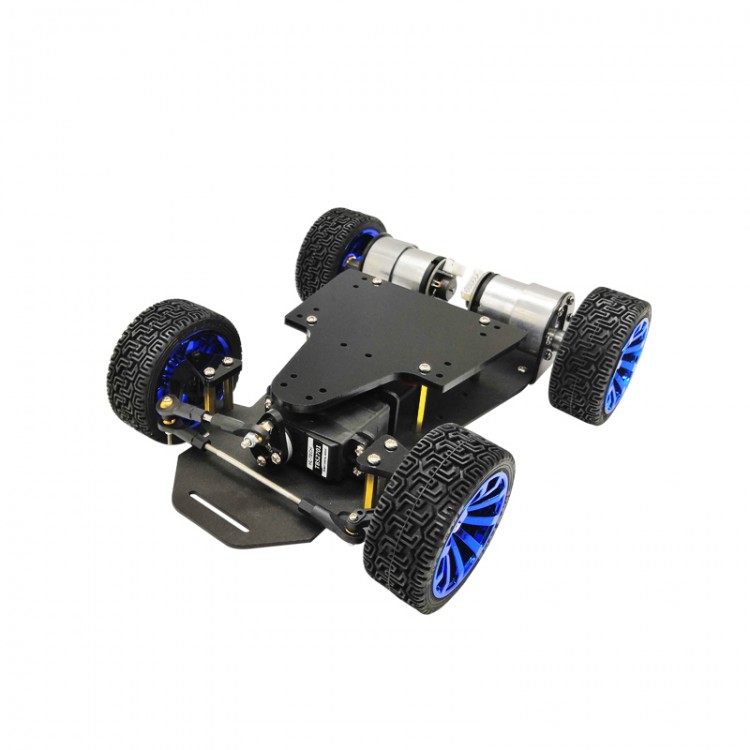

RC Car Chassis Smart Robot Chassis Assembled Standard Version Servo Steering Motor Without Encoder

Availability: In stock, usually dispatched in 1 business day

  • Price:$76.41
  • Price in reward points: 764 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.88 $73.35 $71.06 $68.00 Contact US
Quantity:

RC Car Chassis Smart Robot Chassis Assembled Standard Version Servo Steering Motor Without Encoder

Features:

- Assembled RC car chassis model
- Dual-motor drive
- Servo steering structure
- Aluminum alloy bottom plate
- Premium anti-skid tires

Car Model Related Parameters:
- Base plate material: aluminum alloy
- Steering mode: servo steering of front wheel
- Drive mode: dual-motor drive for rear wheels, active differential is also possible
- Motor power: 7W
- Motor working voltage: 5-12V
- Servo working voltage: standard version (4.8-6V)
- Tires: 65mm high-quality anti-skid tires

Standard Version:
- Motor speed: 500rpm
- Motor speed ratio: 1:30
- Maximum speed: 1.2 m/s
- Load capacity: 4kg
- Servo model: MG996
- Servo torque: 13kg.cm

Attention:
- The above parameters are tested at 12V battery power supply. Battery is not included.

MG996 Metal Analog Servo:
- N.W.: 60g
- Product size: 40x20x40.5mm
- Rotation speed: 0.16sec/60° (6v)
- Servo accuracy: 0.24°
- Locked-rotor torque: 15kg.cm (6.6v)
- Number of gear teeth: 25T
- Gear type: metal
- Power supply voltage: 4.8-6V
- Rotation angle: 180° speed adjustable
- Control method: PWM pulse signal
- Pulse width range: 0.5ms-2.5ms
- Control cycle: 20ms
- No-load current: 100mA
- Product line length: 30cm

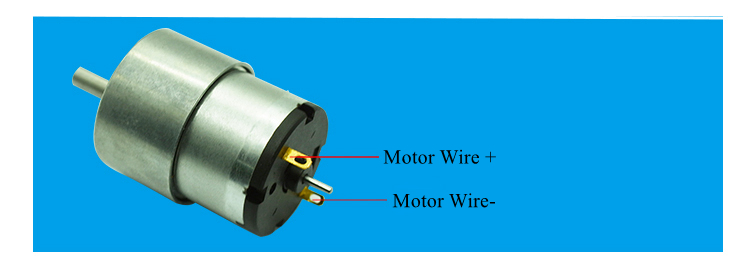

Motor Without Encoder:
Users can control the motor CW, CCW, start, stop and speed control through PWM. You can choose this version if you don't need PID closed-loop control.


Package Included:
- 1 x Set of Car Chassis

Note:
- It is assembled.
- Controller board and Li-Po battery (7.4V, 2500mAH) are not included.
