RC Car Chassis Smart Robot Chassis Assembled Standard Version Servo Steering With Encoder Motor

Availability: In stock, usually dispatched in 1 business day

  • Price:$78.39
  • Price in reward points: 784 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $76.82 $75.25 $72.90 $69.77 Contact US
Quantity:

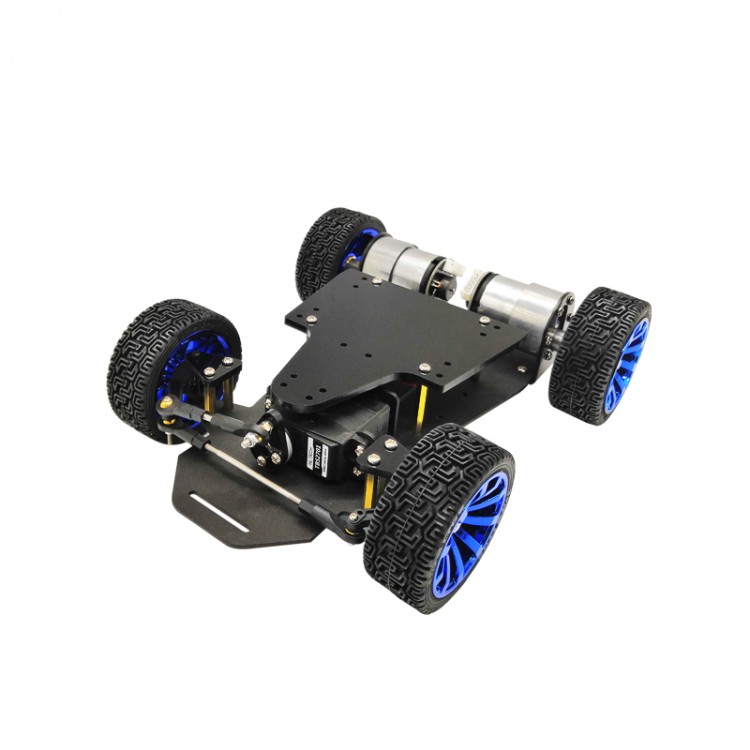

RC Car Chassis Smart Robot Chassis Assembled Standard Version Servo Steering With Encoder Motor

Features:

- Assembled RC car chassis model
- Dual-motor drive
- Steering gear steering structure
- Aluminum alloy bottom plate
- Premium anti-skid tires

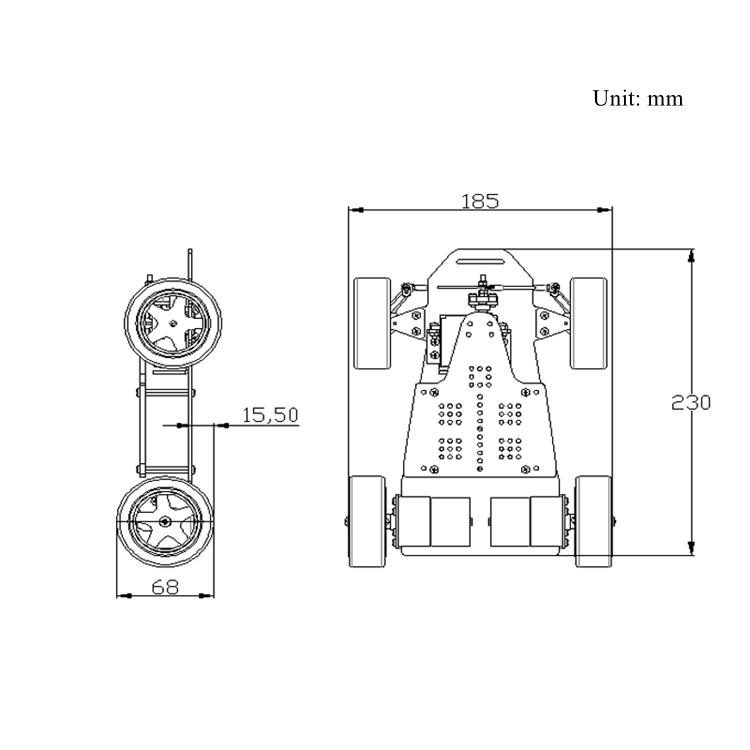

Car Model Related Parameters:
- Base plate material: aluminum alloy
- Steering mode: steering of front wheel servo
- Drive mode: dual-motor drive for rear wheels, active differential is also possible
- Motor power: 7W
- Motor working voltage: 5-12V
- Encoder working voltage: 5V
- Servo working voltage: standard version (4.8-6V)
- Encoder accuracy: one gear revolution, 1560 transition edges for the standard version, 520 transition edges for the faster version
- Tires: 65mm high-quality anti-skid tires

Standard Version:
- Motor speed: 500rpm
- Motor speed ratio: 1:30
- Maximum speed: 1.2 m/s
- Load capacity: 4kg
- Servo model: MG996
- Servo torque: 13kg.cm

Attention:
- The above parameters are tested at 12V battery power supply. Battery is not included.

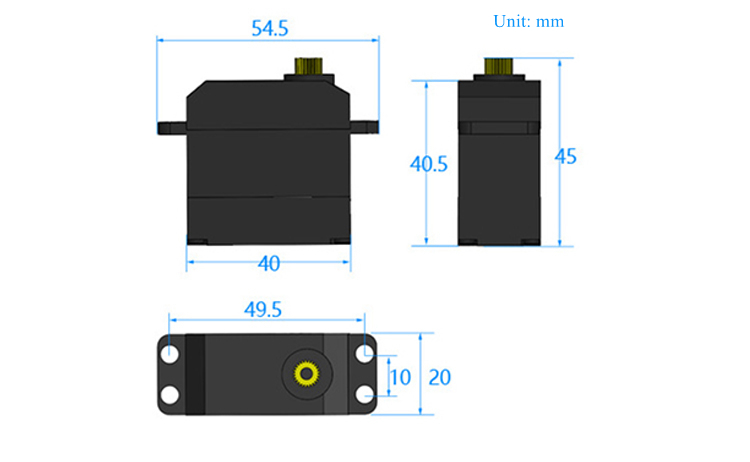

MG996 Metal Analog Servo:
- N.W.: 60g
- Product size: 40x20x40.5mm
- Rotation speed: 0.16sec/60° (6v)
- Servo accuracy: 0.24°
- Locked-rotor torque: 15kg.cm (6.6v)
- Number of gear teeth: 25T
- Gear type: metal
- Power supply voltage: 4.8-6V
- Rotation angle: 180° speed adjustable
- Control method: PWM pulse signal
- Pulse width range: 0.5ms-2.5ms
- Control cycle: 20ms
- No-load current: 100mA
- Product line length: 30cm

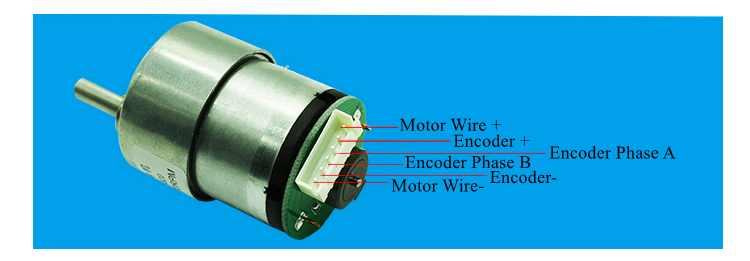

Encoder Motor:
A dual-channel Hall encoder is added to the motor. In addition to CW and CCW of motor, you can control the motors to start, stop and control motors' speed. With dual-channel Hall encoder, it can measure the speed of the motor and judge their working direction, which can be controlled by PID closed loop. If PID closed-loop control is not required, it can also be used as an ordinary motor.


Package Included:
- 1 x Set of Car Chassis

Note:
- It is assembled.
- Controller board and Li-Po battery (7.4V, 2500mAH) are not included.
