RC Logger 2.4 GHz Data TX Module

RC Logger 2.4 GHz Data TX Module
Descriptions:
The 2.4 GHz Data TX Module transmits all available sensor data to the RX LCD Monitor (not included), which displays various telemetry data and triggering alerts, for example low cell voltage and high temperature. This very compact and lightweight device fits easily onto common RC helicopters, planes or cars and transmits data securely over a fair distance. The TX is an add-on module for connecting with the RC Logger LC, which provides data transmission in real-time during flight or movement of the RC vehicle. The 2.4 GHz frequency technology provides interference-free data transmission without compromising with the radio system, even if it’s mounted in close proximity.

Features:
- 2.4 GHz
- Transmission of measuring data of all connected
- modules (e.g. GPS module, Power & RPM module,Environmental module, etc.) to receiver module
- Compact and light
- Frequency channel selector
- Status LED

Specfications:
- Operating voltage:3.6 – 6.0 V/DC
- Current consumption:max. 100 mA
- Frequency:2.405 – 2.480 GHz
- RF data rate:250 kbps
- Number of RF channel:16
- Range:max. 300 m (free field)
- Operating temperature:-10 to +60 ºC
- Antennna length:60 mm
- Storage temperature:20 to +60 ºC
- Dimensions (W x H x D):33 x 14 x 56 mm
- Weight:22 g

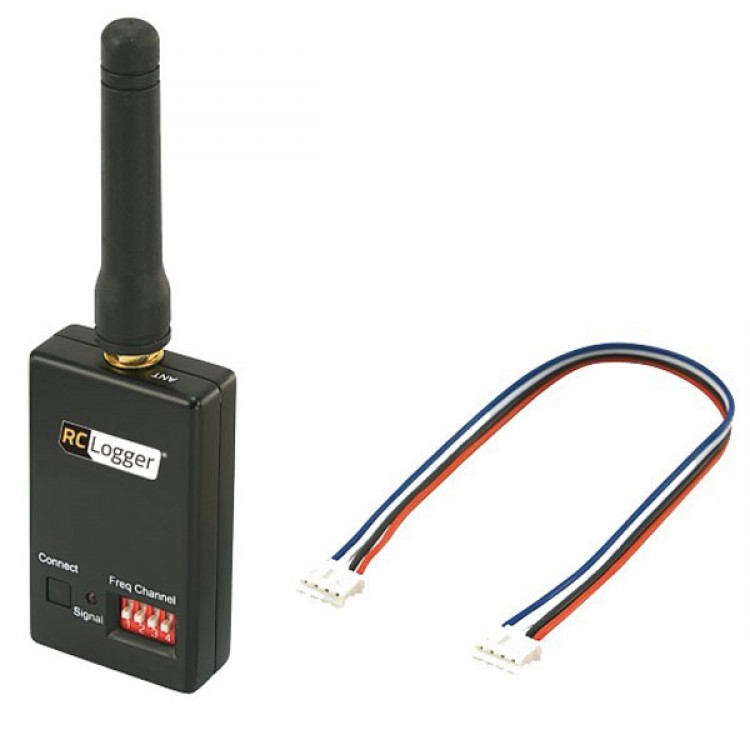

Package icluded:
- Data TX module
- Antenna
- Module connection cable
- Operating instructions
