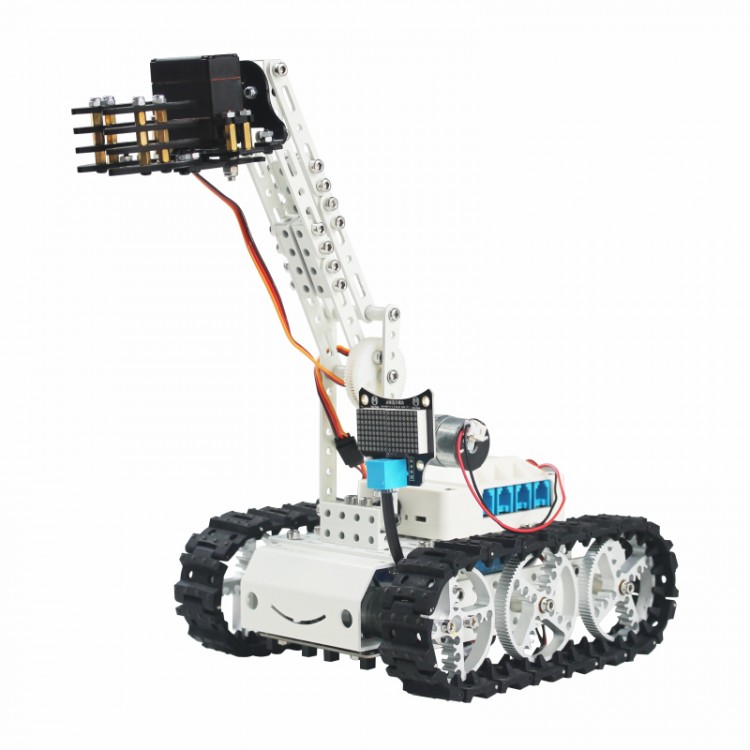

RC Track Tank w/ Acrylic Mechanical Arm Robotic Arm Unassembled For Scratch Programming Pearl White

RC Track Tank w/ Acrylic Mechanical Arm Robotic Arm Unassembled For Scratch Programming Pearl White

Attention:
- This product is an educational product for young people's artificial intelligence robot programming. Easy to build structure, graphical programming, make learning programming easy. Learning programming becomes simple.
- Assembling is needed. Provide assembly videos and learning materials.

Features:
- C language programming / graphical programming for Scratch
- RC car manipulator
- Support programming and development control in two different languages
- Main control board H1: The main controller is developed and designed based on design for Arduino UNO, which can be developed using IDE development ring programming for Arduino. Open source schematics, routine source code, and support for secondary development.
- Computer-side graphical programming: programming software Hello Maker Code developed base on ideas for Scratch 3.0, graphical programming controls the robot, teaches children to learn robot programming, improve teaching materials, and no longer need to attend expensive robot programming classes. At the same time, it can also be used for creative design and graphical programming control.
- Build DIY creatively and cultivate practical skills. Learn programming and develop logical thinking skills. Expand design and cultivate divergent thinking skills.
- Mobile APP wireless programming control for Android system. Mobile APP Bluetooth wireless remote control robot, providing APP for Android mobile phone. It can be programmed in the APP software through mobile phones and tablets, and then uploaded to the robot to achieve mobile APP programming and control of the robot.
- A variety of gameplay, fun operation. Move forward. Swivel. Clamp items. Line tracking.

Specifications:
- Name: Hello Maker Land Arm (vehicle manipulator)
- Delivery form: Need to be assembled by yourself
- Main control: Hello Maker H 1 main controller
- Programming environment: Support for Scratch 3.0/Arduino IDE/Hello Maker APP
- Working voltage: 9-12V
- Power supply mode: Lithium battery power supply (battery is not included), voltage is about 11.1V.
- Transmission method: Bluetooth/USB
- Working temperature: -10℃ to 50℃
- Whether to configure graphical programming textbooks: yes
- Other other development materials: open source schematics and C language control source code for Arduino
- Scalability: Compatible with other Hello Maker programming education mechanical structures in our shop, sensor electronic module set
- Size: width 170mm* length 200mm* height 305mm
- Net weight: about 1.37kg

Package Included:
- 1 x Main Control Board
- 1 x Dot Matrix Display Module
- 1 x Set of HM-MS07 Servo
- 1 x Tracking Sensor
- 1 x 6V 13RPM 25 Motor
- 2 x 12V 80RPM 25 Motors
- 1 x Front Cover
- 2 x 10110 Strips
- 1 x Motor Bracket
- 4 x 2020L Brackets
- 4 x 102040 Guide Rails
- 2 x Straight Side Panels
- 4 x 1070 Strips
- 6 x 90T Metal Gears
- 1 x 80140 board
- 2 x Couplings
- 1 x Set of CL-4 Acrylic Claw
- 4 x Stainless Steel Shafts
- 2 x M4*10 Bearings
- 1 x M5 Copper Gear
- 2 x Rubber Tracks
- 1 x 3D Printed Gear
- 1 x M4*12 Nylon Column
- 4 x M4*4 Nylon Columns
- 2 x M4*20 Nylon Columns
- 1 x Bag of Parts (including screws, connecting cables, USB data cable, hexagon wrenches, etc.)

Note:
- Need to be assembled by yourself.
- Battery is not included.

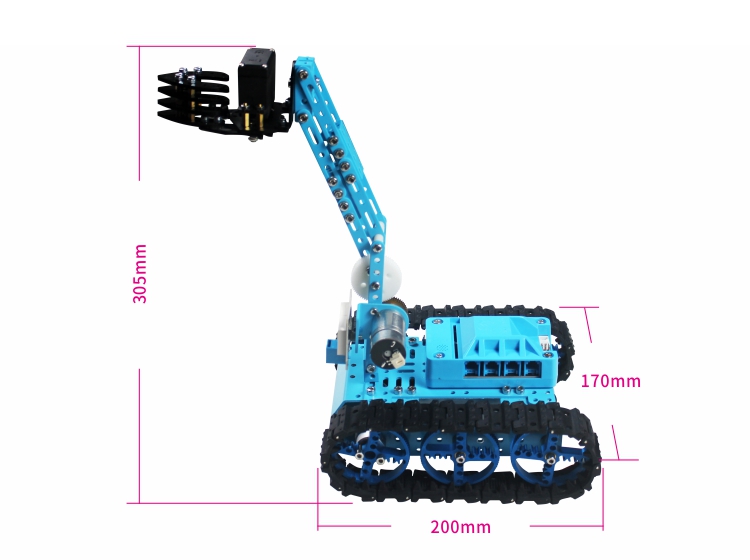

- The picture below is for size reference only. The actual color of our product is Pearl White.
