RC Transmitter Receiver RC TX RX 5.8G 2000MW Wireless Transmitter & RC832 5.8G AV Receiver for FPV

Availability: Out Of Stock

  • Price:$59.05
  • Price in reward points: 591 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $57.87 $56.69 $54.92 $52.55 Contact US
Quantity:
RC Transmitter Receiver RC TX RX 5.8G 2000MW Wireless Transmitter & RC832 5.8G AV Receiver for FPV

Transmitter:

This is a 5.8G 2000MW 8-Channel wireless transmitter. It is very small and light to mount anywhere and has a long range. It includes all cables to connect power sources and video sources. It is perfect for FPV, wireless remote control aircraft, wireless remote control vehicle and so on.

Features:
- Modulate: wideband FM modulate
- Video format: NTSC/PAL
- Output impedance: 50 Ohm
- Output power: 32-34dBm
- Operating voltage: 7-15V
- Supply current: 900mA
- Operating voltage: DC 12V
- Operating temperature: -10 to 85℃
- Video band width: 8.0 MHz
- Audio carrier frequency: 6.5 MHz
- Video input level: 0.52-2.0Vp-p
- Video input impedance: 75 Ohm
- Audio input level: 0.5-2.0 Vp-p
- Audio input impedance: 10 Ohm
- Weight: 106G/0.2LB
- Size: 17 x 3 x 2.5cm/6.7 x 1.2 x 1"

Channel Frequency:
- CH1: 5705 MHz
- CH2: 5685 MHz
- CH3: 5665 MHz
- CH4: 5645 MHz
- CH5: 5885 MHz
- CH6: 5905 MHz
- CH7: 5925MHz
- CH8: 5945MHz

Parameters of RC832 AV Receiver:
- Working rate: 5.8GHz
- Radio frequency points: 48 points
- Voltage import: 12V
- Work current: 200mA
- Antenna blocking: 50Ω
- Antenna connector: receiver end RP-SMA jack male; antenna end RP-SMA plus female
- Antenna gain: 2db
- Video Impedance: 75Ω
- Video system: NTSC/PAL automatic
- Dimensions: 85 x 65 x 15mm/3.3 x 2.6 x 0.6" (LxWxH)
- Receiver weight: 85G/0.2LB

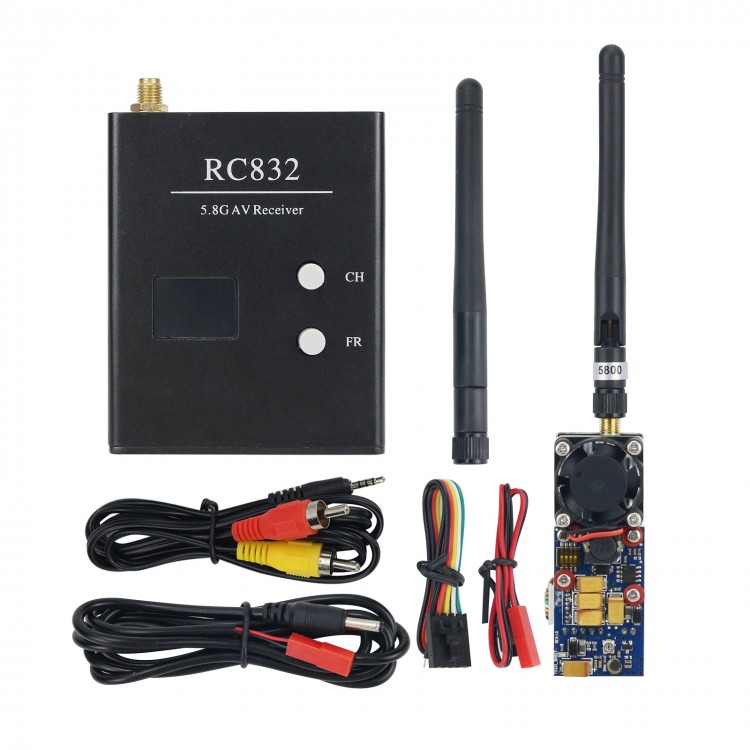

Package Included:
- 1 x Receiver
- 1 x Antenna for Receiver
- 1 x Transmitter with Antenna
- 4 x Cables
