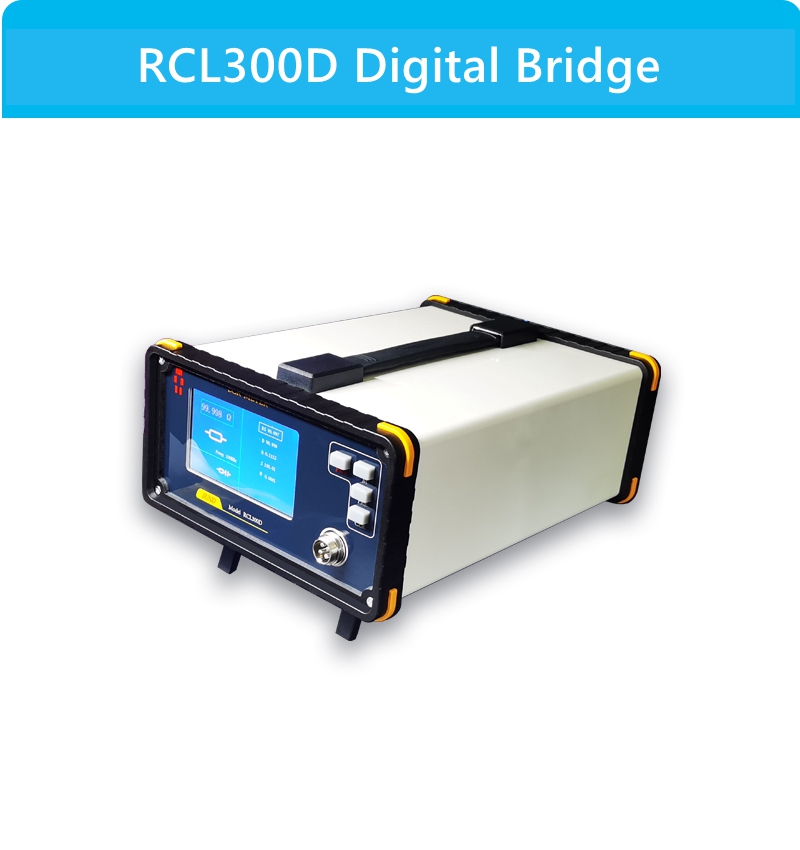

RCL300D Digital Bridge High Performance Internal Resistance Tester ESR Meter with High Accuracy and Automatic Gain

Availability: In stock, usually dispatched in 1 business day

  • Price:$299.92
  • Price in reward points: 2999 Reward Points: 30
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $293.92 $287.92 $278.93 $266.93 Contact US
Quantity:

RCL300D Digital Bridge High Performance Internal Resistance Tester ESR Meter with High Accuracy and Automatic Gain

Specification:

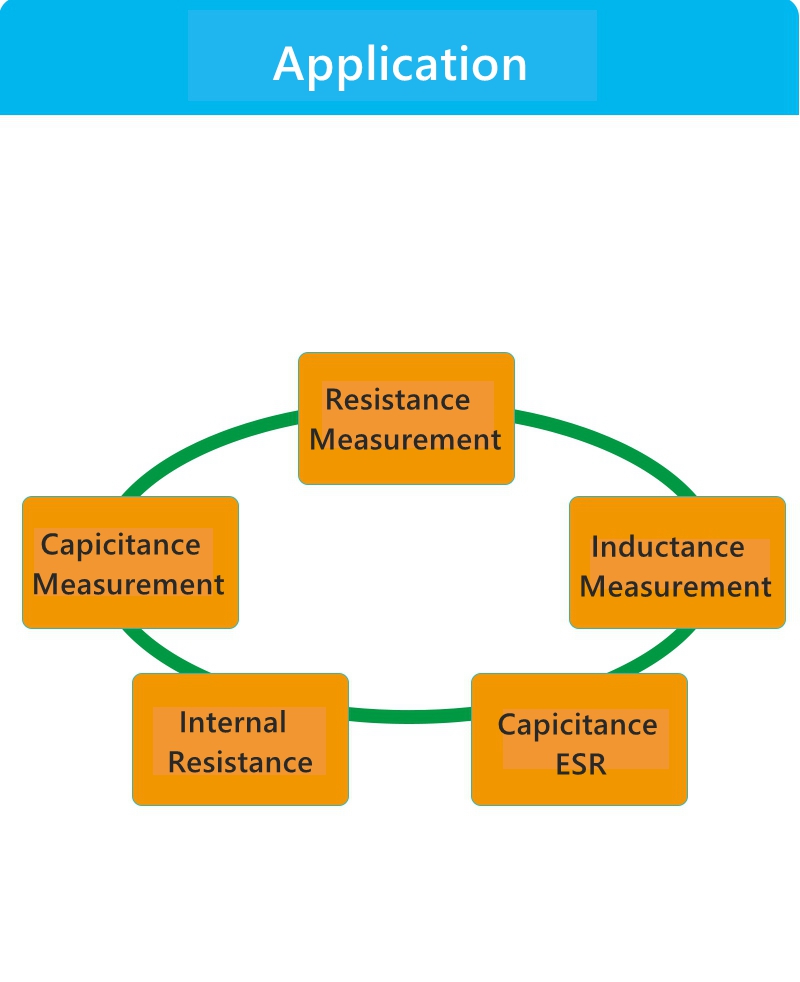

- Measured parameter: L, C, R, D, Q, ESR, θ, Z
- Basic accuracy: 0.2%
- Equivalent circuit: Serial/Parallel connection
- Range mode: Automatic
- Test speed: 2 times/second
- Calibration function: one press calibration
- Test end configuration: 4-terminal Kelvin test line
- Display mode: direct reading

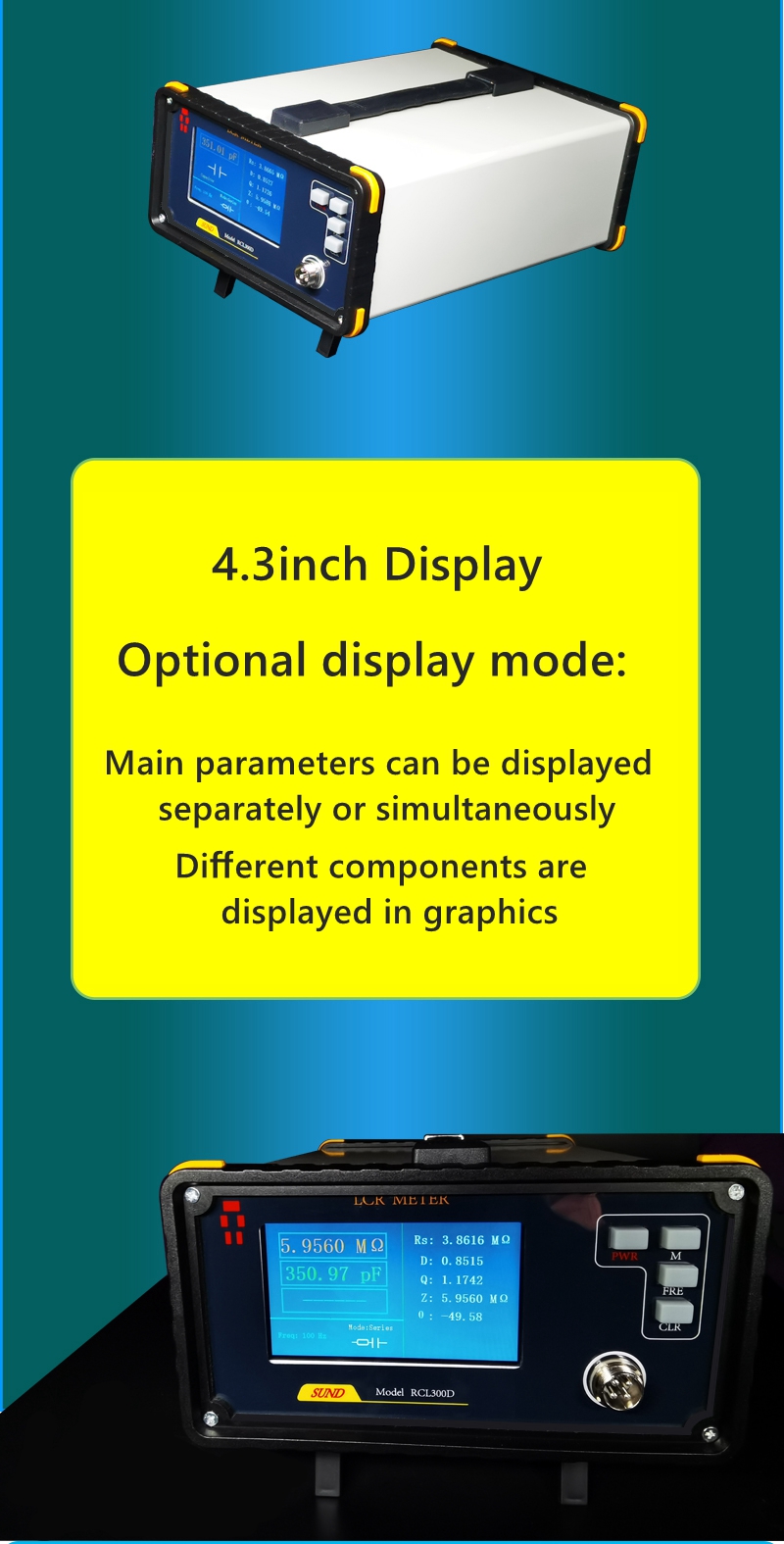

- Display: 4.3inch color display screen
- Backlight: support
- Power supply mode: power adapter
- Test signal frequency: 100Hz, 1kHz, 10kHz
- Output impedance: minimum 200ohm
- Test signal level: maximum 2.5Vrms

Measurement display range:
- R: 0.0001ohm~9999.9Mohm
- C: 0.0001PF~9999.9mF
- L: 0.0001uH~9999.9H
- D,Q: 0.0001~99999

General specification:
- Working temperature: 0℃~40℃
- Working humidity: ≤90%RH
- Power requirement: AC220V/50Hz
- Power consumption: ≤5W
- Dimension: 210 x 110 x 280mm
- Weight: 1.8kg

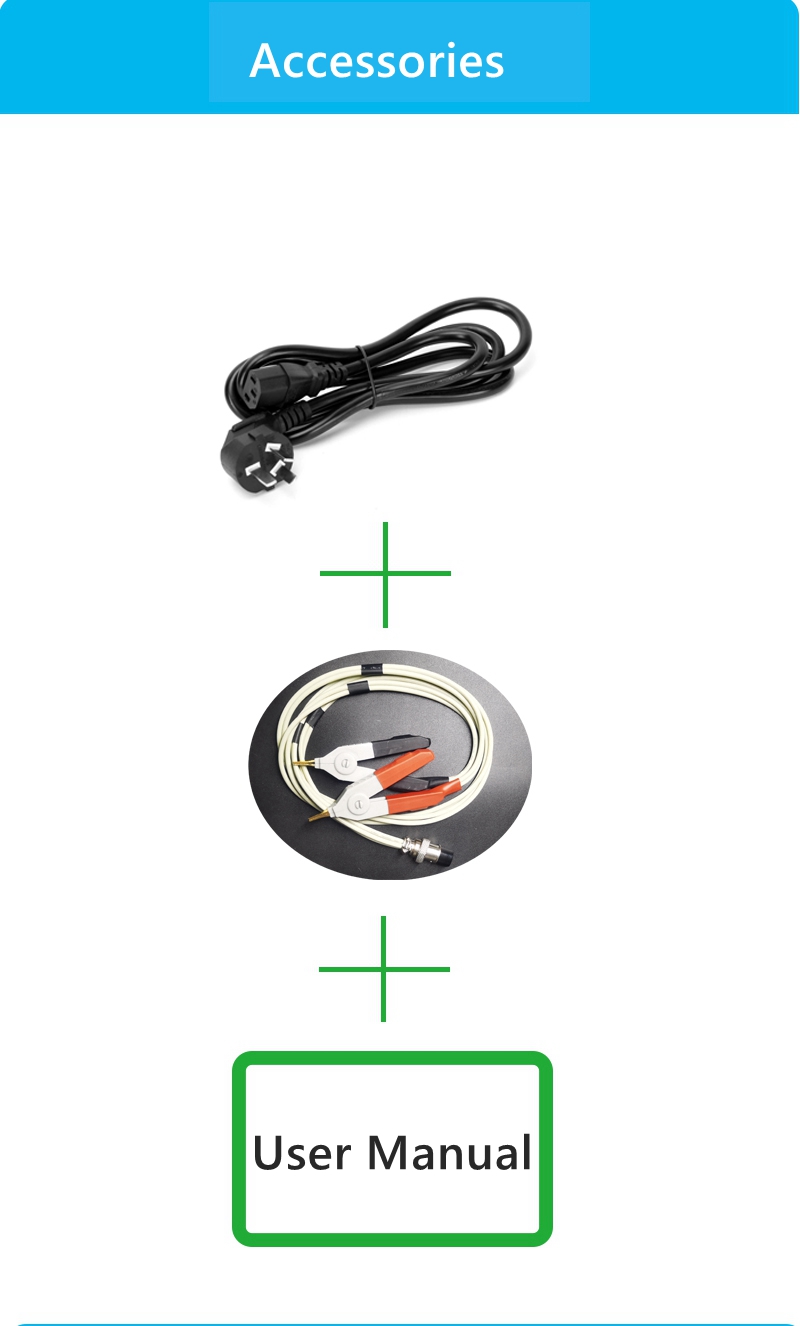

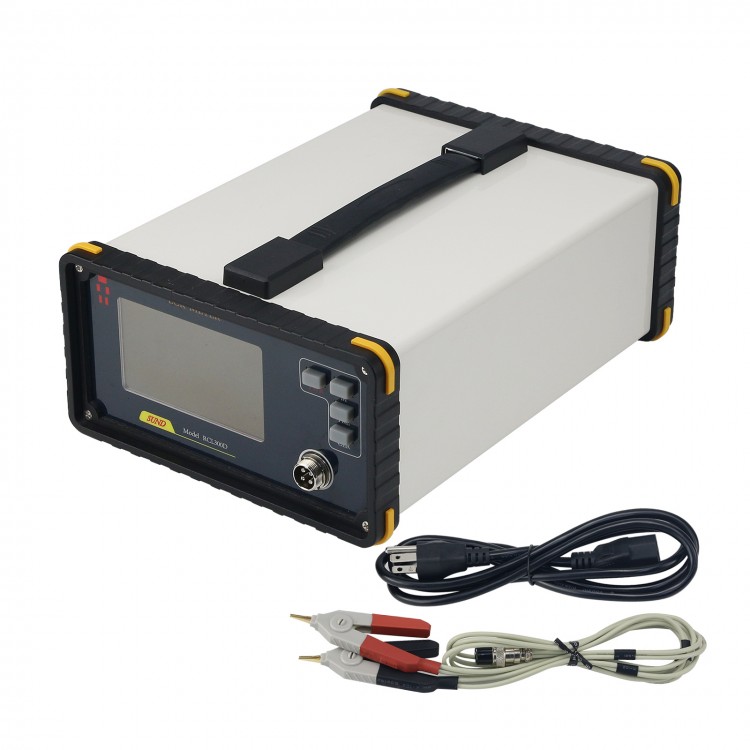

Package Included:
- 1 x RCL300D
- 1 x Cable Kit
- 1 x User Manual
