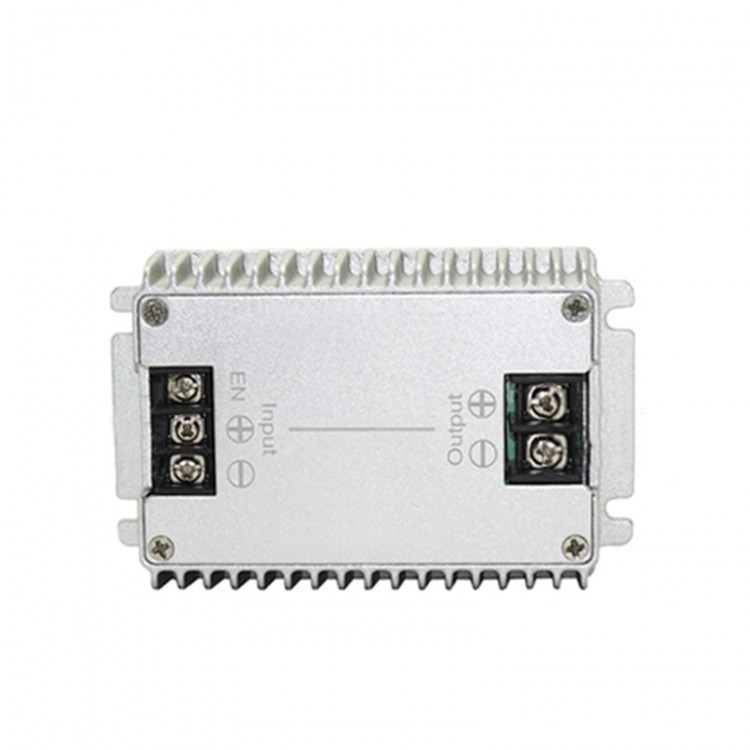

RCNUN 24V Power Converter 36V to 24V Buck Converter 8V to 24V 60V to 24V Voltage Regulator For Cars
Specifications:
Model: RCI0548S24
Input voltage: 48V (36V-75V) DC
Output voltage: 24V DC
Output current: 5Amps
Output power: 120W
Conversion efficiency: 91%
Ripple & noise: 150mVp-p
Certification & system: ISO 9001, CE, RoHS
Working temperature: -30 ℃ ~ +80 ℃
Size: 110 * 70 * 23mm
Weight: 250g
Protection function: over voltage, overload, low voltage, over temperature, anti-reverse connection protection
Features:
1. Adopt high-quality die-casting aluminum shell package, with good heat dissipation function, safe and reliable
2. Organic silicone encapsulation, waterproof, dustproof, shockproof, IP68 protection level.
3. SMT patch technology, adopt new imported high-quality electronic components (such as: TINCC, NICHICON, NIPPON, etc.), with high stability and high reliability.
4. The pure copper tape magnetic core inductor can effectively play the role of filtering, oscillation and trapping. The quality of the inductance directly affects the stability of the power supply.
5. High thermal conductivity silica gel can effectively improve the thermal conductivity of the power supply and increase the service life of the power supply. The outer wall naturally dissipates heat without fan assistance.
Package List:
1 x Buck Converter
