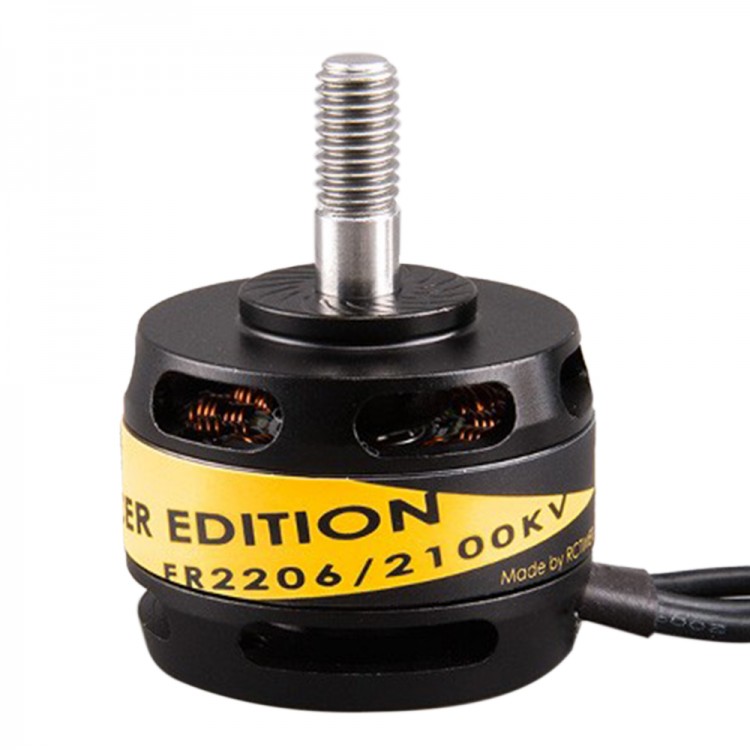

Rctimer FR2206 2100KV Brushless Motor for FPV Quadcopter Multicopter Racing Drone
Specification:
- Magnet: 42
- Bearing is NMB
- 0.20 mm lamination, maximum efficiency and minimum eddy current loss.
- Ultra flexible motor with high temperature resistance 220 C silicon rubber clues.
- 5.0 mm aluminum flange lock nut
- Stator diameter is 22mm
- Stator thickness is 6mm
- Stator slot number: 12
- Pole number: 14
- Motor KV : 2100 RPM
- No load current (IO) 0.5A @ 10V: 0.8A
- Motor resistance (RM) per phase: 0.12 ohm
- Motor resistance (RM) phase: 0.08 ohm
- Maximum continuous current: 25A
- Maximum continuous power (3 core lithium PO): 300W
- Maximum continuous power (4 core lithium PO): 380W
- Motor weight: 36.5G
- Outside diameter 27.7mm
- Motor shaft diameter is 3mm
- The prop shaft diameter is 5mm
- Body length: 22 mm
- Overall shaft length: 35.5 mm
- Motor speed: 5-10 degrees
- PWM frequency: 8-20 kHz
Package includes:
- 1 x Motor
- 2 x 5.0mm aluminum flange lock nut
- 4 x 6mm* M3 screws
