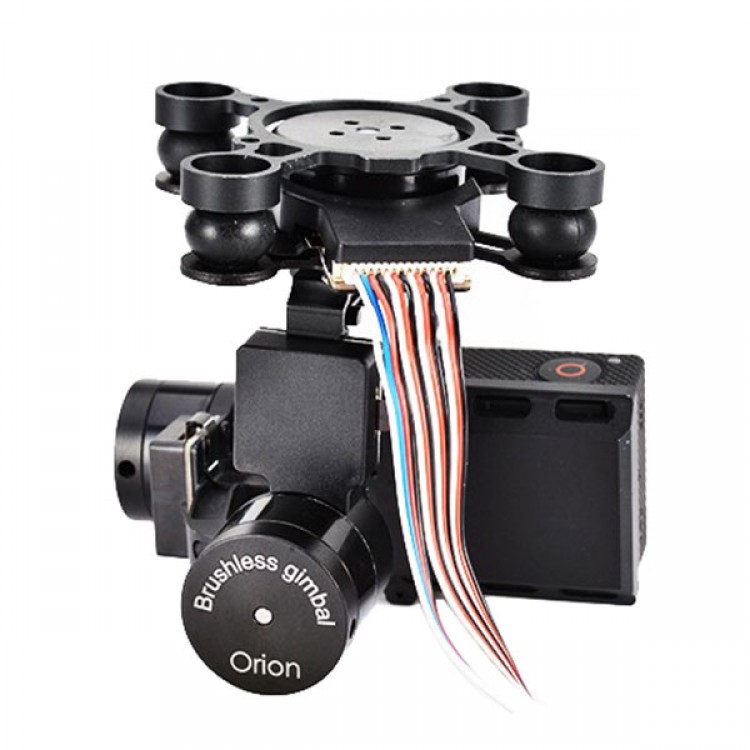

Rctimer H4-3D Gopro3 Brushless Gimbal AlexMos Controller Mini Controller
Features:
- 3-Axis gimbal
- High precision brushless servo control
- Aluminum alloy body
- Built in IMU module
- Light weight
- All of FC supported
- Gopro 3 and Gopro 3+ Gopro 4 supported
- AlexMos 32 bit technology
- Separate main board, you can put on anywhere
Peripheral:
- Supported Camera: Gopro 3, Gopro 3+ black and silver Gopro 5
- GCU input power: 3-6s lipo (12V-26V) 3S-6S Lipo (12-26V)
- Assistant software system requirement: WinXP SP3/7/8
Mechanical & Electrical:
- GimbGimbal operating current:
static current: 250mA (12V)
Dynamic current: 450mA (12A)
- Gimbal input power: 3S-6S (12-26V)
- Operating temperature: -10---50degree
- Gimbal weight: 200g(camera excluded)
- Gimbal dimensions (with damping unit): 100mm*90mm*
- Controller weight: 40g
- Controller size: 60*37*15mm
Performance:
- Controlled anle accuracy: tilt/ roll: +-0.02degree
- Yaw: +-0.03degree
- Maximum controlled rotation speed: tilt axis: +-130degree/s
- Controlled rotation range: tilt axis control: -130---45degree
