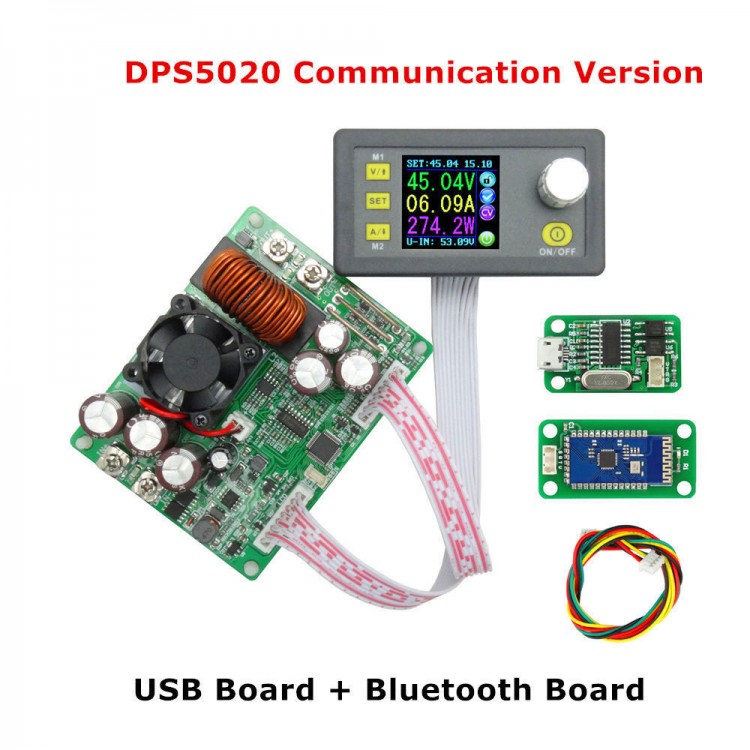

RD DPS5020-USB Buck Power Supply LCD Color Display Step-down Voltage Converter

RD DPS5020-USB Buck Power Supply LCD Color Display Step-down Voltage Converter

Very important:
1.Before buying this product, please download the upper computer software and test, if it fits your computer , you can buy

2. the upper computer only support For Win7 and above

General Information

   The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one. Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its adjustable output current range is 0-20.00A, step by 0.01A. This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value. Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc. on the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used. On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, small size, advanced function, good visual effect, high operability, high-precision, being used independently, being inset into the device and been widely applied.

Technical parameters

Input voltage range:  6.00-60.00V                                Output voltage range:  0V-50.00V

Output current: 0-20.00A                                               Output power range: 0-1000W

Product Weight: about 222g                                          Display module size: 79*43*41(mm) (L*W*H)

Open size:  71mm*39mm                                               Power module size: 93*71*41(mm) (L*W*H)

Length of connecting line: 200mm                                Fixed hole center distance: 86mm, 64mm

Output voltage resolution: 0.01V                                      Output current resolution: 0.01A

 Output Voltage accuracy: ± (0.5% + 1 digit)                   Output Current accuracy: ± (0.5% + 2 digits)

NOTE:

1, when you get the product in the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.

2.You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.

3. When the current is more than 10A or the temperature is more than 45 °c , the fan will begin to work. when the temperature is more than 65°c, the module will stop working

4,     if you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uf, C is over 2200 uf.

3. Connection description

IN+: Input positive                  IN-: Input negative:

OUT+: Output positive:              OUT-: Output negative

Note: Input voltage range is DC 6-60V and 60v is the limit voltage; please leave a room to use. Or else it will be burnt. The input must be DC power supply, not AC 220V, or else it will be burnt too. Though this module has reverse connection protection and output short circuit protection, you can muse be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt.

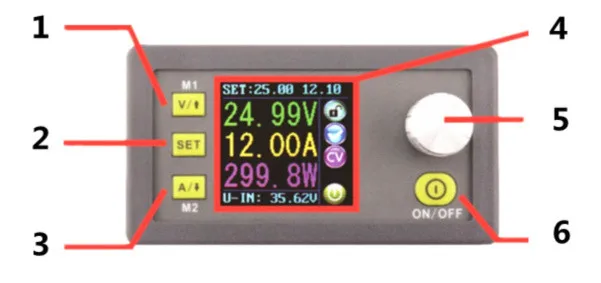

Panel description

1-Voltage setting/Page up to choose/Shortcut extract M1 data group

2-Data setting/ Extract value of the specified data group/Store value into the specified data group

3-Current setting/Page Down to choose/Shortcut extract M2 data group

4-1.44 inch color LCD screen

5-Coding potentiometer/Data adjustment/Lock all buttons

6-Open or close output

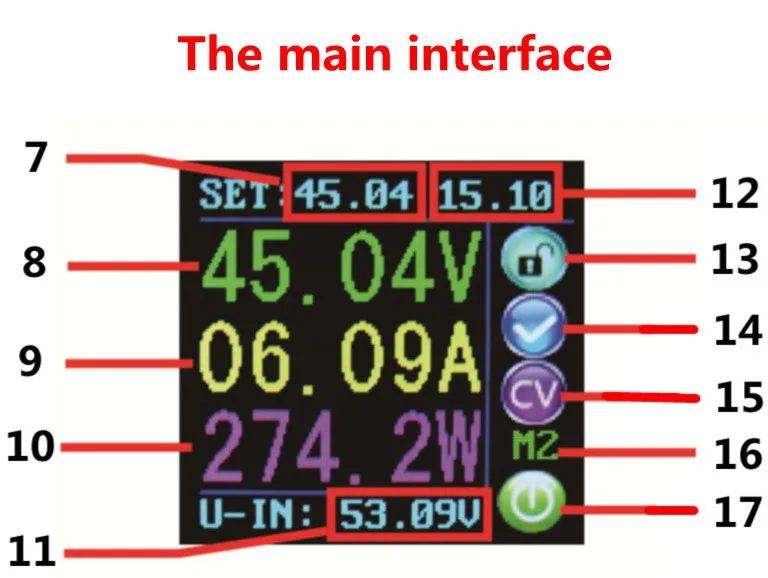

Display interface description

7-The preset value of output voltage

8- The actual value of output voltage

9-The actual value of output current

10-The actual value of output power

11-The actual value of input voltage

12-The preset value of output current

13-Key lock or unlock prompt

14-Output normal or not prompt

15-Constant voltage and constant current status prompt

16-Data set prompt

17-Open or close output prompt

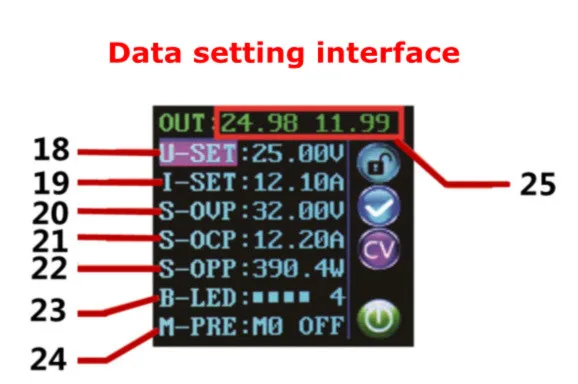

18-Preset output voltage

19-Preset output current

20-Preset over- voltage

21-Preset over-current

22-Preset over-power

23-Preset screen brightness

24-Preset data set

25-The actual value of output voltage and output current

Operating instructions

When connect the power supply, the screen shows welcome window firstly and then comes into main interface. On the main interface, the output set voltage value and the output set current value is on the top of the screen. The big font value on the left are the current real output voltage, the current real output current and the current real output power. Input voltage is on the bottom of the screen. There are some running status icons on the right of the screen, key lock icon, abnormal output status icon, constant voltage and constant current icon, data set tip icon and opening or closing output icon.

Set the output voltage and output current on the main interface.

   Press V/↑key shortly, you can enter into voltage setting status. Then press the coding potentiometer, and then enter to adjust the numerical value. Press coding potentiometer to enter into the status of adjusting the numerical value you want to adjust. Turn coding potentiometer to adjust the numerical value. Turn by clockwise rotation to increase the numerical value; Turn by counterclockwise to decrease the numerical value. If you want to exit adjusting the numerical value, press shortly V/↑. In the same time the preset value will be stored. Or you can do nothing in one minute, the status will be automatically existed and the preset will be stored too.  You can press A/↓to set the output current by the same way.

Set the data on the data setting interface

  On the main interface, you can press SET key shortly to enter into data setting interface. On the data setting interface, press shortly V/↑or A/↓ to page up or page down to U-SET or I-SET, and then set the output voltage and output current by same way used in the main interface .

Set the protection value.

Page up or page down to S-OVP, S-OCP or S-OPP place to set over-voltage value , over-current value and over-power value correspondingly; when the value is up to the setting value, output will be closed. And then press shortly the coding potentiometer to enter into the status of adjusting the numerical value you want to adjust. Turn coding potentiometer to adjust the numerical value. If you want to exit adjusting the numerical value, press shortly SET key.

   Adjust the brightness of screen.

Page up or page down to B-LED, and then press shortly the coding potentiometer to enter into the status of adjusting the brightness of screen. Turn coding potentiometer to adjust the numerical value you need. If you want to exit adjusting the numerical value, press shortly SET key. There are six brightness levels of LCD screen, 0-5 level. Rank 0 is the darkest; rank 5 is the brightest. You can choose what you like.

   Data setting and store the specified data group.

Page up or page down to M-PRE, and then press shortly the coding potentiometer to enter into the status of choosing the data groups. Turn coding potentiometer to choose the data group you need to view. Then the data group you need will be displayed. And then press the coding potentiometer to enter into status of changing output state. Turn coding potentiometer to choose ON or OFF. When choose ON, the data group is extracted and the output status remain the same. When choose OFF, the data group is extracted and the output is closed. If you want to exit choosing data set, press shortly SET key. Then press shortly V/↑or A/↓ to page up or page down to other place to adjust the data you need. After data setting done, keep pressing SET key more than 2s, all the data you set are automatically stored into the specified data group. In the same time, you can see the group number on the right of screen. At last you can press shortly SET key back to the main interface.

Set default boot open or close output

Page up or page down to S-INI, and then press shortly the coding potentiometer to enter into the setting status. Set ON, default boot open; set off, default boot close.

Function description.

   Open or close the output.
