Package list:

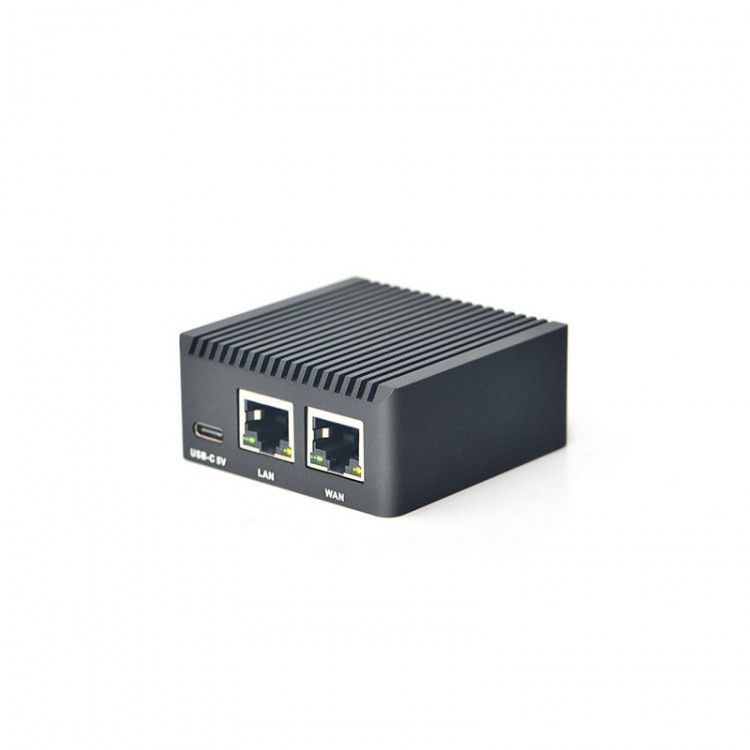

- 1 x NanoPi R2S Board
- 1 x 64G card
 |
 |
 |
 |
 |
 |
 |
|||||
| NanoPi R2S Hardware Spec | |
| CPU: | Model: Rockchip RK3328 Number of Cores: Quad-Core Cortex-A53 Frequency: 4 x Cortex-A53 Up to 1.3GHz |
| DDR4 RAM: | 1GB |
| Network: | Internal 10/100/1000M Ethernet Port x 1 USB3.0 converted 10/100/1000M Ethernet Port x 1 |
| USB Host: | Type-A x1 |
| Debug Serial Port/UART0: | 3.3V TTL, 3-pin 2.54mm pitch connector |
| Keys | KEY x 1 programmable |
| microSD Slot: | 1 |
| LED: | 3 |
| PCB Dimension: | 55.6 x 52mm |
| Power: | DC 5V/2A |
| Working temperature: | 0℃ to 80℃ |
| Software Features | |
| OS Support | FriendlyWrt 19.07.1 (64-bit) Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11) |
