Receiver 0.1MHz-1.7GHz TCXO UHF VHF HF RTL.SDR USB Tuner RTL2832U+R820T2 FM
Features:
- Direct sampling RTL-SDR TECHNICAL SPECIFICATIONS
- Fully assembled and ready to use
- Uses RTL2832U+R820T2 chip set.
- R820T2 tuner has slightly better sensitivity than the R820T and also works better at frequencies around 1.5 GHz. 100% compatible with software for the older R820T.
- 100KHz to 1766MHz, operating frequency
- 1 PPM temperature compensated oscillator (TCXO)
- Accurate tuning and almost zero temperature drift (2 PPM initial offset, 1 PPM temperature drift)
- Covers all HF amateur bands
- Covers VHF & UHF bands from 24-1766MHz
- Up to 3.2 M Sample rate. (~2.8 MHz stable)
- Receiver modes AM, NFM, FM, DSB, USB, LSB and CW
- HF Shortwave Q branch direct sampling
- Note: depends upon the SDR software used with the receiver
- 8-bit ADC giving ~50 dB dynamic range
- 50 Ohm input impedance
- SMA golden antenna connectors It is also more durable and has lower insertion losses.
- Aluminum enclosure screened panels
- Small size board
- Freeware software
- Independent antenna inputs for Shortwave and VHF
- USB computer connection ( mini usb) Powered by common USB
- All specifications subject to change without notice
Package list:
- 1 x Receiver
- 1 x USB cable
- 1 x SMA to BNC adapter
- 1 x SMA to UHF adapter

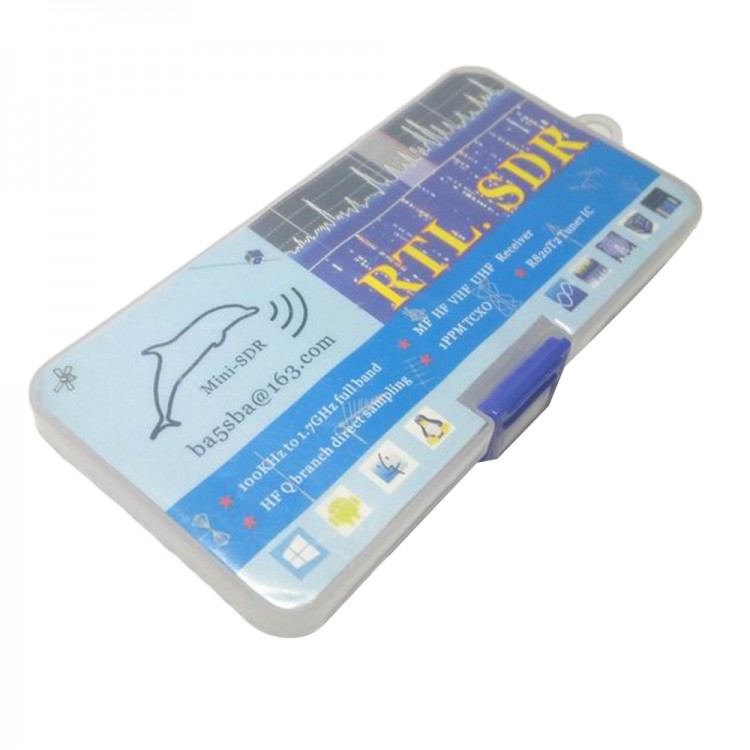

- 1 x Plastic box
