| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $100.35 | $98.30 | $95.23 | $91.14 | Contact US |

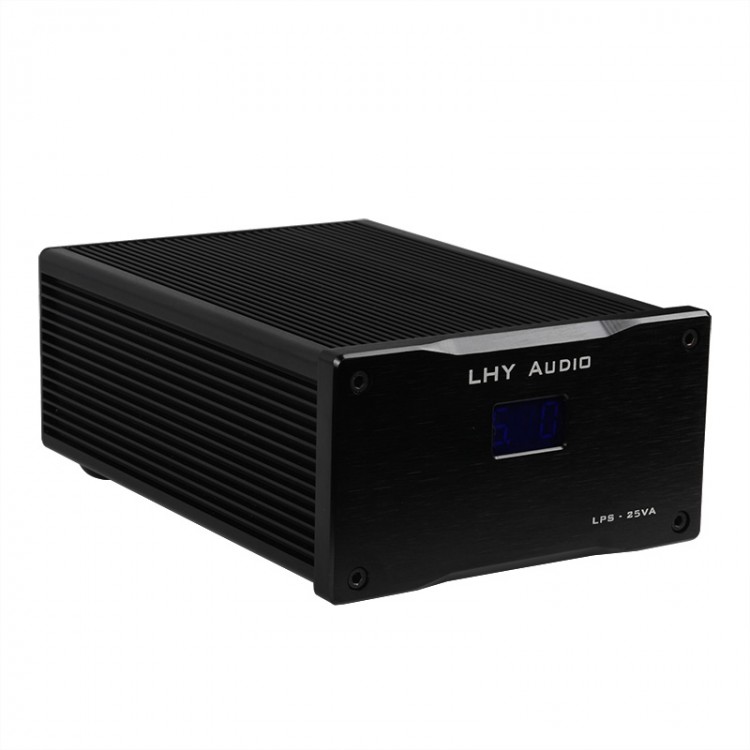

Regulated Linear Power Supply w/ Blue LED Display For Routers DAC (25W DC 5V with USB Output)
Premium Components:
- 25VA sealed transformer commonly used for imported hifi audio
- Ultra-low noise voltage regulator circuit composed of precision reference + high-speed operational amplifier + MOS output transistors
- Thick and textured aluminum alloy case with heat sink to ensure heat dissipation performance
- IEC AC power input socket + imported power switch
- Rear panel enables fine tuning of output voltage through a multi-turn potentiometer
- Imported fast recovery high-current rectifier diode
- High-current DC output copper socket made in Taiwan
- Hifi and chemical electrolysis
- Multiple precision high current filter inductors
- Front panel with 3-digit blue LED digital screen to display voltage
Applications:
- It can be used to match with your TV set-top box, broadband router, hard drive box, Hifi DAC headphone amplifier, portable computer and the like.
Specifications:
- Output Voltage: DC 5V
- Output Terminals: DC 5.5mm & 2.1mm Outputs (Inner positive & outer negative)
- Voltage Display: 3-Digit Blue LED Digital Display
- Voltage Range: ±5%
- Device Weight: 1.3kg
Package Included:
- 1 x Linear Power Supply
- 1 x Power Cord
- 1 x DC5.5-2.1mm Dual-Plug DC Power Output Cable 0.8M
Note:
- The default standard of connectors is 5.5x2.1. If 5.5x2.5 connectors are needed, please contact us.
- This version is designed with DC 5V output and USB output interfaces.
