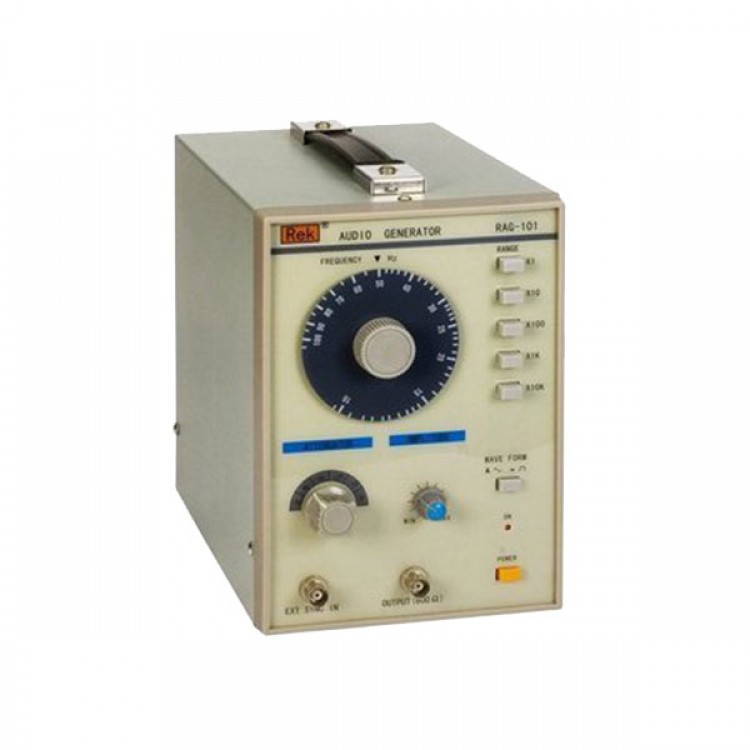

REK RAG-101 Low Frequency Signal Generator 10Hz-1MHz

Availability: In stock, usually dispatched in 1 business day

  • Price:$93.55
  • Price in reward points: 936 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $91.68 $89.81 $87.00 $83.26 Contact US
Quantity:
Buy it now Add cart

You might like

DeepSDR 101 Software Defined Radio SDR Radio Receiver FM/AM/LW/MW/SW/AIR-Band DSP Receiver

DeepSDR 101 Software Defined Radio SDR Radio Receiver FM/AM/LW/MW/SW/AIR-Band DSP Receiver

$87.29

(0)
LibreVNA 2.0 Upgraded Version 100kHz-6GHz Portable Vector Network Analyzer USB Based Full 2-Port VNA

LibreVNA 2.0 Upgraded Version 100kHz-6GHz Portable Vector Network Analyzer USB Based Full 2-Port VNA

$731.24

(0)
USB Bluetooth Virtual AOK OSC Oscilloscope Spectrum Sweeper Signal Generator

USB Bluetooth Virtual AOK OSC Oscilloscope Spectrum Sweeper Signal Generator

$63.12

(0)
Vector Network Analyzer VHF/UHF/NFC/RFID RF Antenna Analyzer Signal Generator miniVNA Tiny Plus2 2019

Vector Network Analyzer VHF/UHF/NFC/RFID RF Antenna Analyzer Signal Generator miniVNA Tiny Plus2 2019

$428.69

(0)
DSO Nano V3 32bit Digital Storage Oscilloscope Signal Generator 200Khz Full Color 2.8" TFT LCD Open Source

DSO Nano V3 32bit Digital Storage Oscilloscope Signal Generator 200Khz Full Color 2.8" TFT LCD Open Source

$106.79

(0)
1Hz-8GHz Wideband Signal Generator with Make-Break Modulation + Power Adapter

1Hz-8GHz Wideband Signal Generator with Make-Break Modulation + Power Adapter

$137.86

(0)
MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe

MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe

$62.73

(0)
OWON XSA1015P-TG 9KHz-1.5GHz Portable Spectrum Analyzer Tracking Generator with 10.4-inch LCD Touch Screen

OWON XSA1015P-TG 9KHz-1.5GHz Portable Spectrum Analyzer Tracking Generator with 10.4-inch LCD Touch Screen

$1,094.74

(0)

REK RAG-101 Low Frequency Signal Generator 10Hz-1MHz

Specification:

- Frequency range: 10 Hz ~ 1 MHz total of five measurement range.
- Accuracy: ± 5% of full scale
- Output Impedance: 600Ω
- Output Control: 0 db, -10 dB, -20 dB, -30 dB, -40 dB, -50 dB and can be fine-tuning.

Sine wave output

1 Output voltage: 5 ~ 6 V rms
2. Distortion: 500 Hz ~ 50 kHz is not greater than 0.05%
        50 Hz ~ 500 kHz is not greater than 0.5%
3, the output smoothness: In a reference ± 1.5

Square wave output

1, range: 10 Hz ~ 1 MHz
2, the output level: 10 V peak
3, the rise time: 0.5 μs

Synchronization performance

1, range: 1 V per output voltage can change the oscillation frequency 1%
2. Input impedance: 10 KΩ
Power: AC 110V / 220 V (50/60 Hz), 8 W
