RetroScaler2x AV Converter Line Doubler (Blue) for Retro Game Consoles PS2/N64/NES/Dreamcast/Saturn

RetroScaler2x AV Converter Line Doubler (Blue) for Retro Game Consoles PS2/N64/NES/Dreamcast/Saturn

Product Features:
Signals / Resolutions:
The RetroScaler2x can accept 240p/480i/288p/576i NTSC/PAL sources to converter to 480p/576p HDMI-compatible output (480p for NTSC, 576p for PAL). For example 240p signals are supported properly, allowing for a completely progressive line-double to 480p. 480i signals are de-interlaced and doubled also to 480p. Keep in mind that the output resolution of this device only up to 480p/576p.

Zero Lag:
The RetroScaler2x is a zero lag device, proven using multiple measurements and different devices.

Region Compatibility:
Both NTSC and PAL signals are supported, but they are not converted to each other. That means you can plug in whatever signal your target device is compatible with, but NTSC might not work on PAL HDMI-compatible devices and vice versa.

Filter Modes:
The "FIL" mode is completely preference-based, but the average retro-gamer prefers the FIL mode off for 2D games (for SNES, Genesis, etc.) and on for 3D games (for N64, Saturn, etc.). Also, the FIL mode might help reduce flicker with some 480i-only games.

Compatibility:
Another great feature of the RetroScaler2x is that it outputs a true 480p60 signal, making it compatible with every device I tested it with! Compatibility is a big issue for retro-gamers, as modern displays aren't used to the resolution or refresh rate of these older consoles. This device is an excellent help for streamers who want the highest chance of compatibility.

Performance–Audio:
Audio performance on the RetroScaler2X is good although we would have to stop short of saying it was perfect. In general uses there are no issues with the audio digitization but on brassiere sounds like explosions the output may sound a little rougher than it did through the OSSC. This isn't something you're likely to even notice on a TVs speakers, though you might if you have an external amp or home theatre system. In that case of course, it's usually perfectly easy to route audio around the RetroScaler2X anyway.

The Pass-through:
By putting the RetroScaler2X into pass-through mode, incoming composite, s-video or component signals are simply transparent and digitized into HDMI-compatible. Support for 240p is rare in the world of HDMI-compatible, but by adding a simple HDMI-compatible to VGA converter, you can convert the signal back to the analogue domain again. This makes the unit a perfect transcoder to go with 15 kHz displays like PVMs, or of course, the OSSC.

Supported Consoles:
- For Vic20
- For Atari2600
- For Msx
- For NES
- For N64
- For NGC
- For SFC
- For SNES
- For SuperFamicom
- For PIAYSATION2
- For SEGA Saturn
- For MD2
- For MD1
- For Dreamcast
- For Commodore64 (C64)

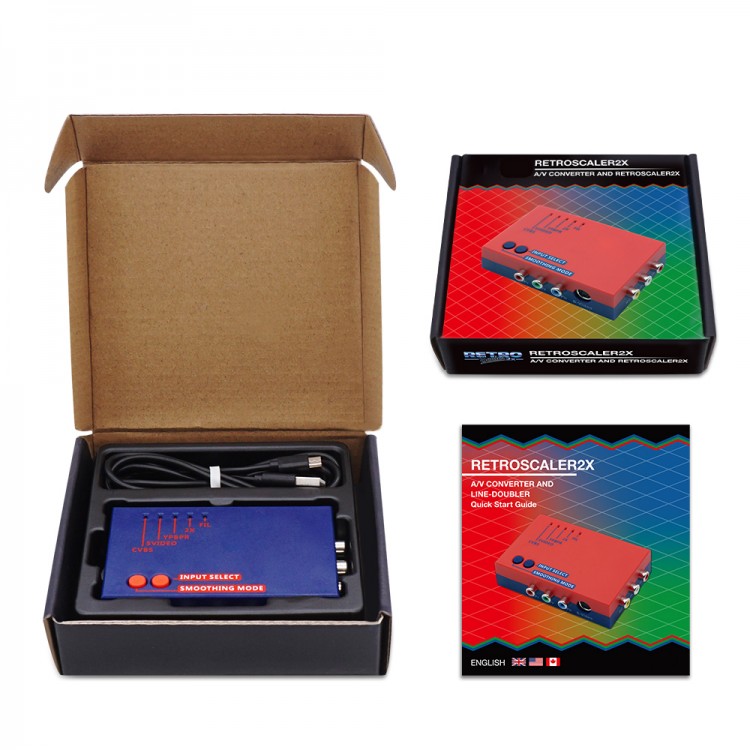

Package Included:
- 1 x RetroScaler2x
- 1 x USB Cable

Note:
- Please pay attention that the RetroScaler2X do not accept the PAL-M consoles in Brazil.

Connecting your RetroScaler2x:
1) Connect a suitable source to the composite, component (YPBPR) or S-video connectors. (The inputs can only be used one at a time and it's strongly suggested that you do not leave consoles plugged in at the same time, even if they are off)
2) Ensure you are connected to the USB power, and then switch on your RetroScaler2X.
3) Connect to the display via HDMI-compatible interface, and then play your games.
4) Select the appropriate video mode through button according to your needs.

Important Safety Information:
- Please observe the following safety precautions when using your Retro Scaler2x.
- Use the correct power supply-- the Retroscaler2x is powered by a regular 5v Micro USB port that can be powered by a normal power supply or powered by a device that has a USB port. Please make sure that the power supply you are using meets any of the above requirements.
- Never use a power supply that is not regulated to prevent damage to the equipment.
- Turn off the power before connecting/disconnecting the device - to prevent damage to the device ICs, always turn off the power before connecting the monitor or device.
- Do not expose to moisture Droplets of moisture - may contact the PCB and cause a short circuit. Never submerge the unit in water.
- Keep away from fire or high heat sources - RetroScaler2X is not flammable but high temperatures, such as those from a fire or electric heater may melt the plastic casing.
- Please supervise children: Retro is not a toy and is not designed for use by children. Please supervise children if they use the Retro.
