RF-8GHz-60DB Dual Channel Programmable Attenuator RF Attenuator (Main Unit + Type-C Cable) for PC
Parameters:
1. Number of ports: dual channels
2. Single-channel attenuation: 60DB dynamic range

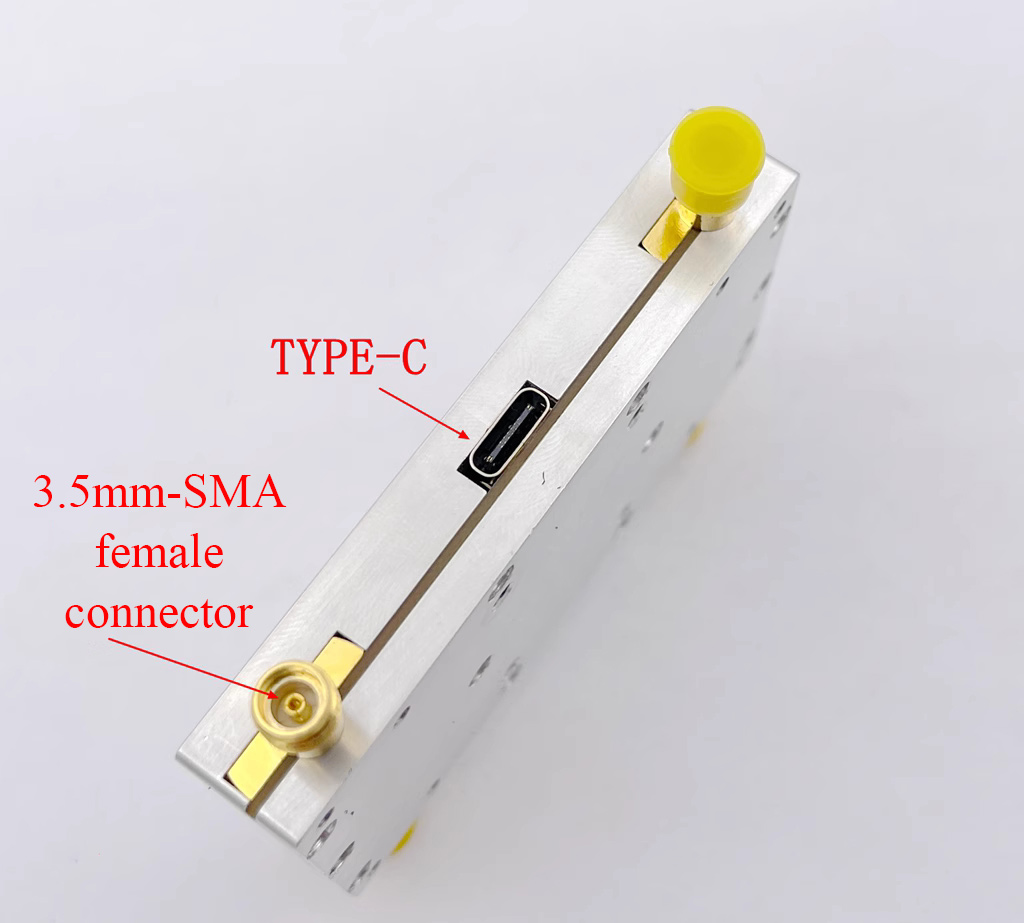

3. Input and output interfaces: 26.5G SMA female connectors
4. Input and output impedance: 50 ohms
5. Frequency range: 10K to 8GHz (do not add DC to RF port)
6. Dimensions: 72mm x 42mm x 12mm/2.8" x 1.7" x 0.5" (excluding protruding SMA)
7. Insertion loss: refer to the 0DB attenuator to set the S-curve
8. Error: refer to the measured S-curve

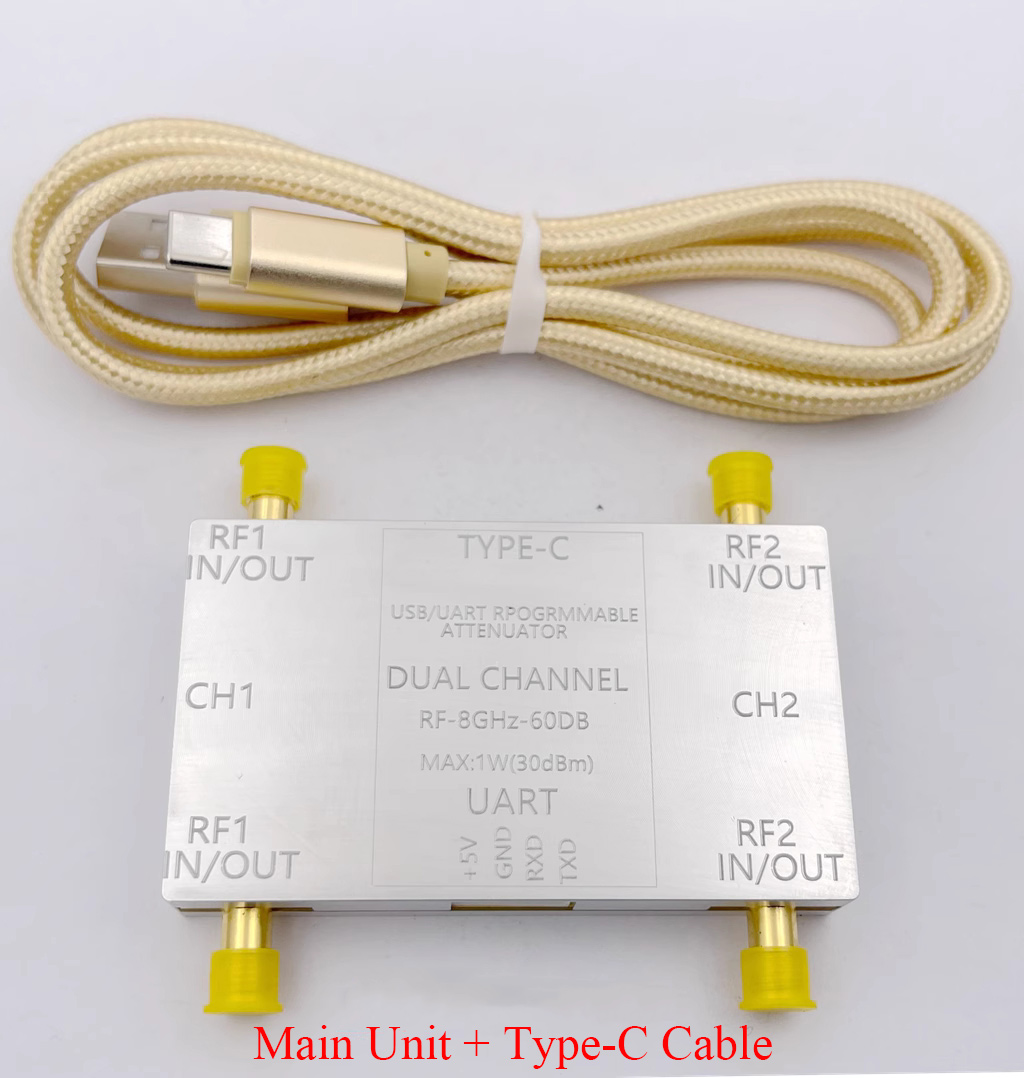

Package Included:

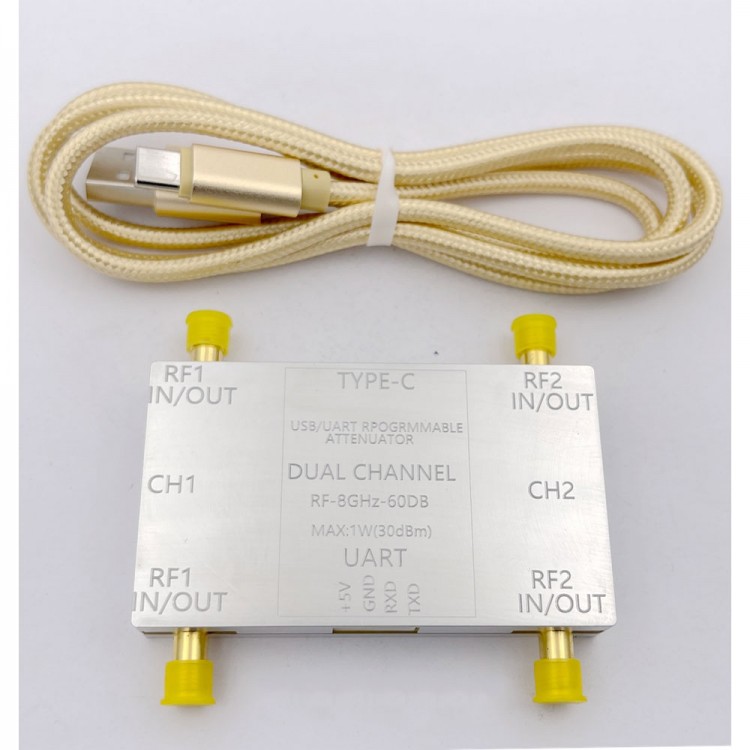

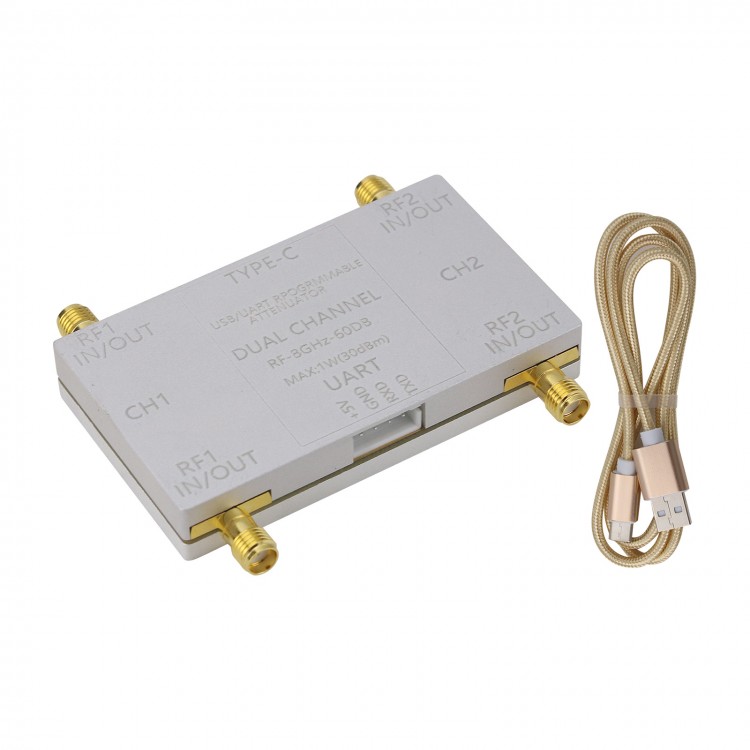

- 1 x Programmable Attenuator Main Unit
- 1 x Type-C Cable
Packaging Details:
- Weight: 0.3kg

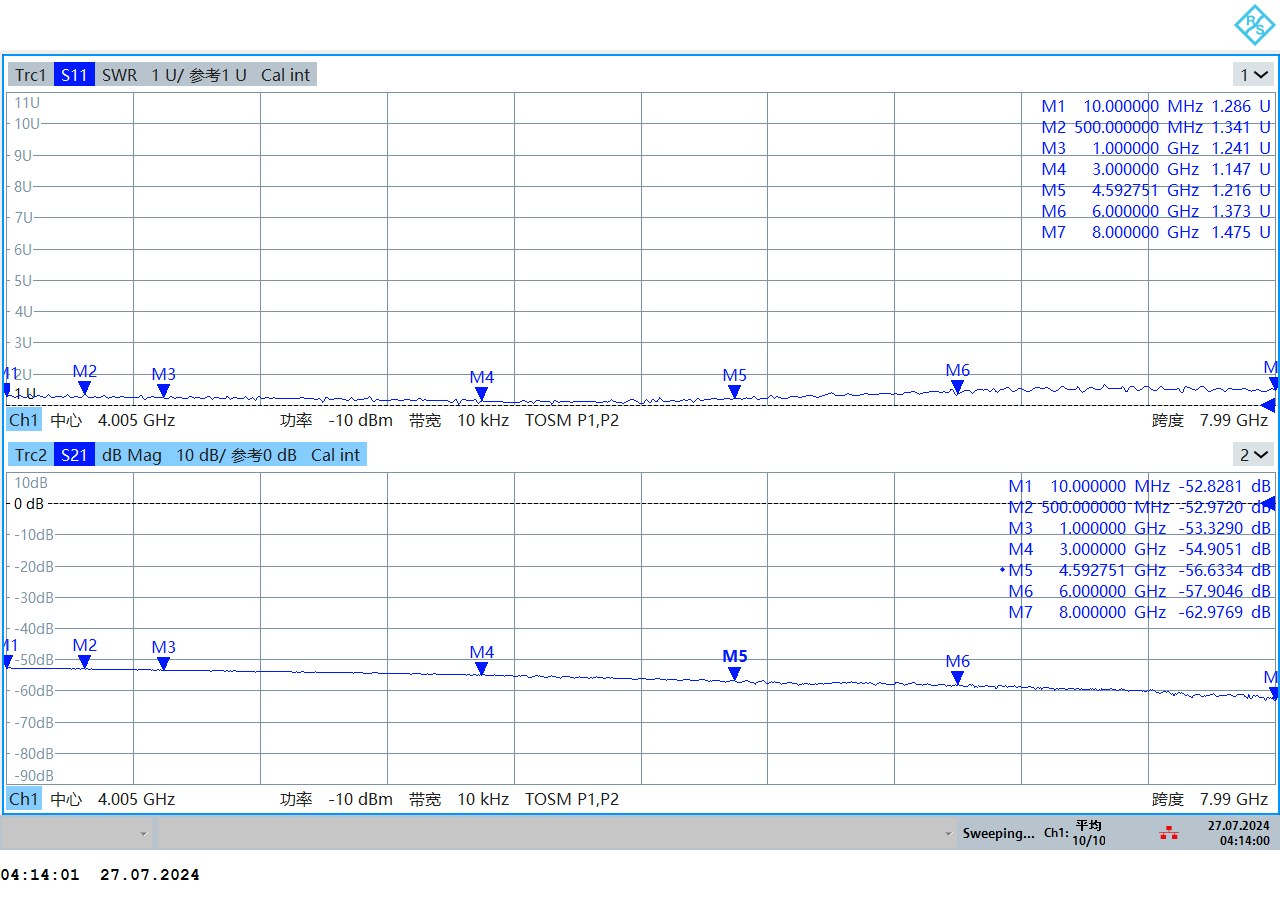

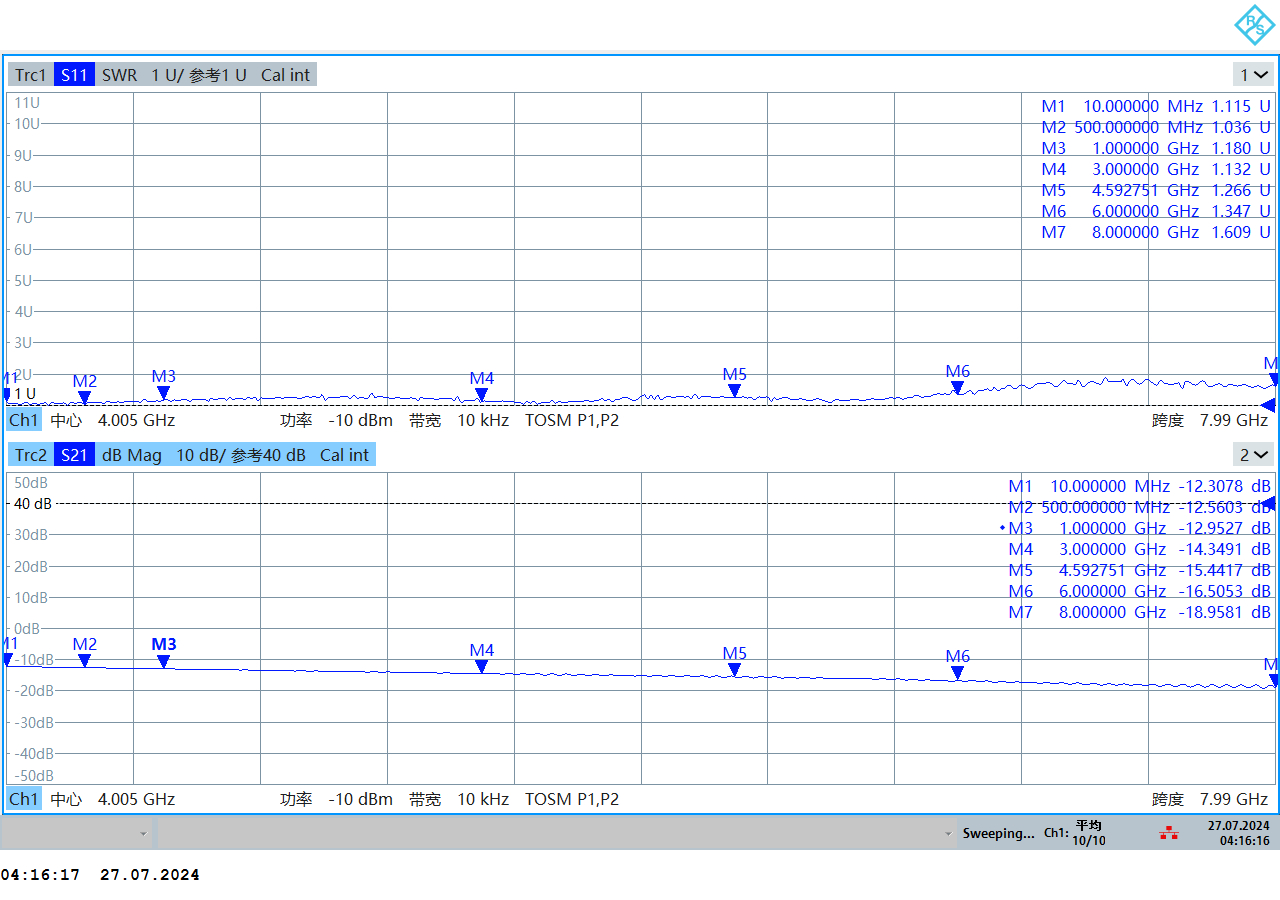

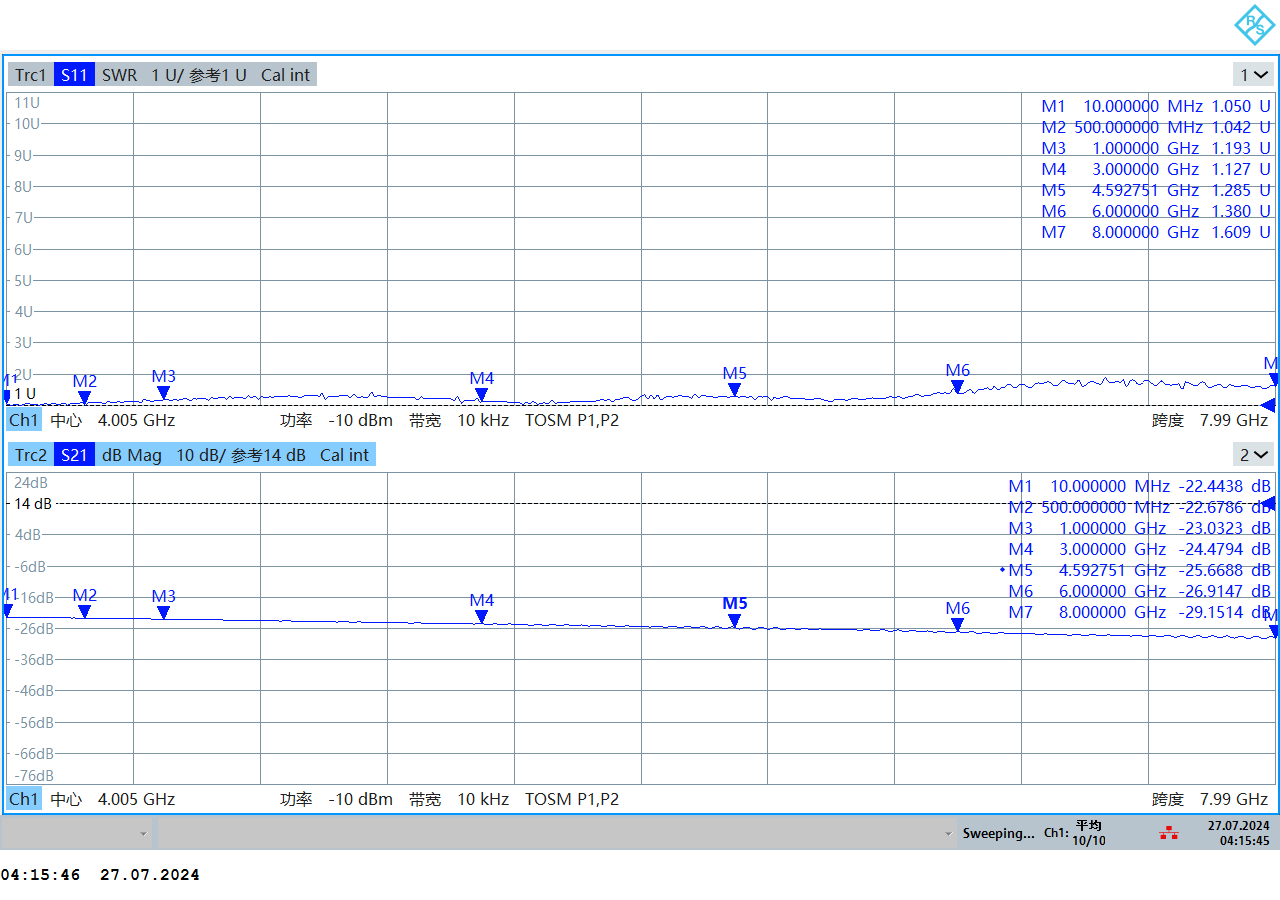

Measured S-Curve for 8G Version:

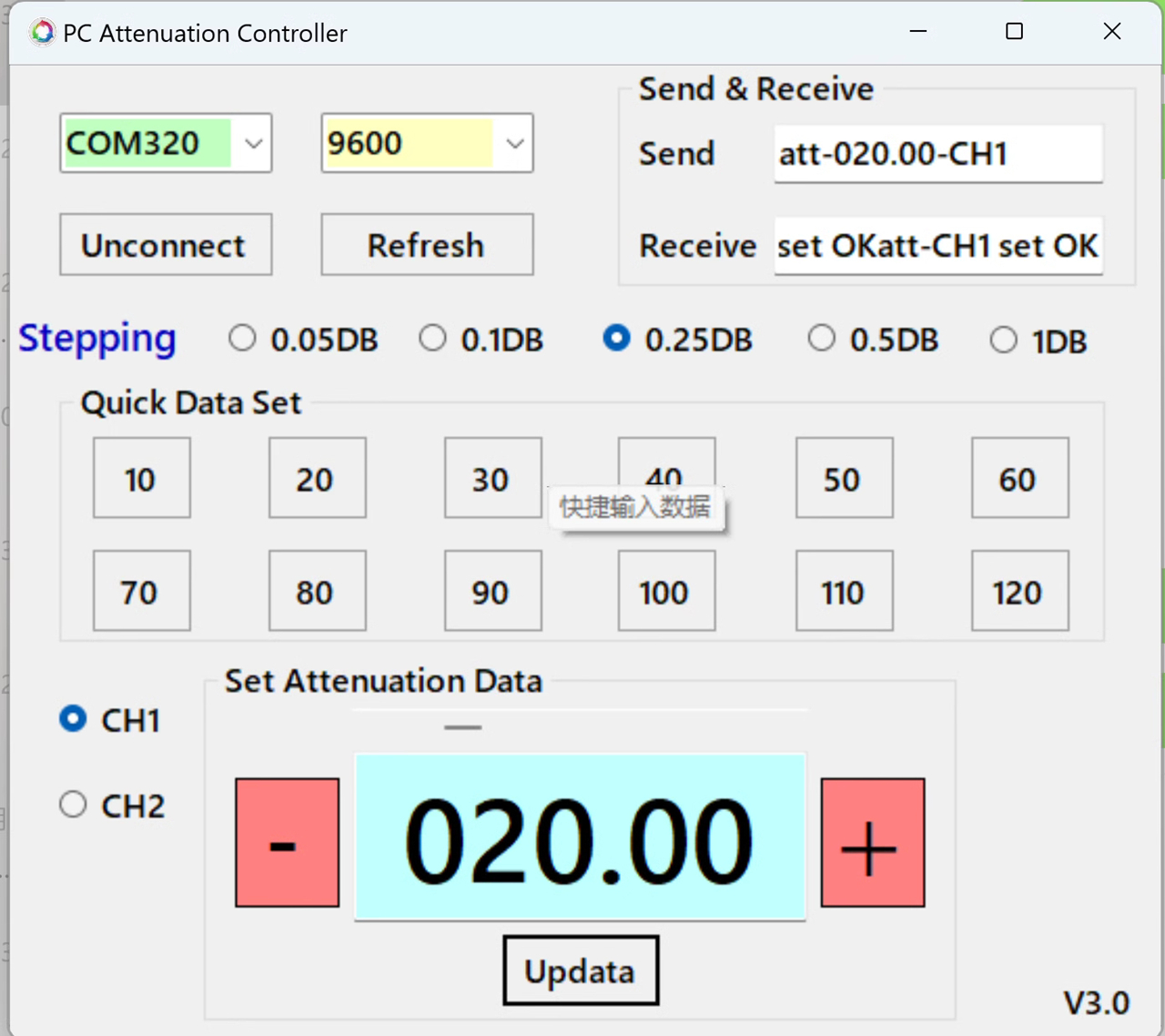

Supports Serial Communication at the Host Computer Level:
