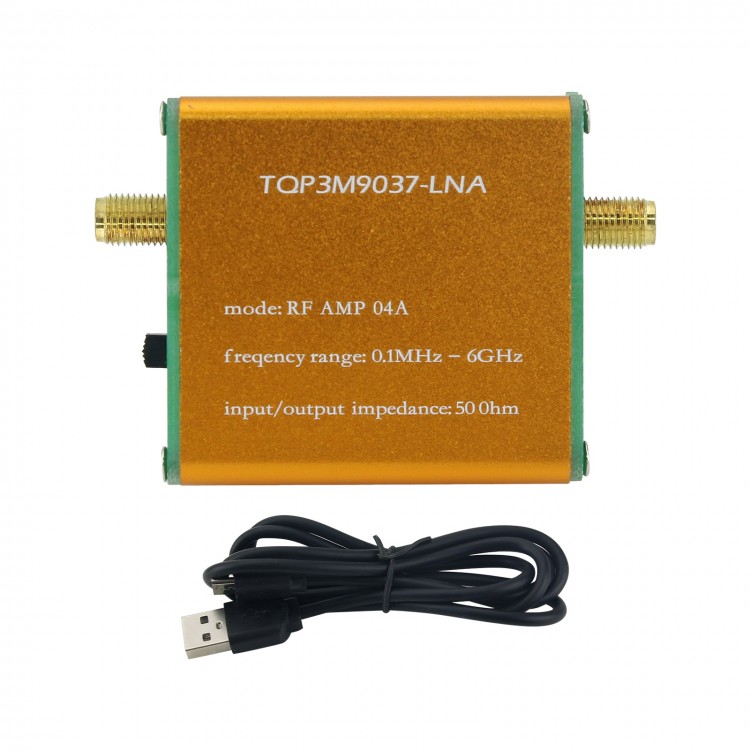

RF AMP 04A 0.1MHz-6GHz Low Noise Amplifier TQP3M9037-LNA RF Amplifier Module (with Battery)
Description:
It is a high linearity, ultra-low noise amplifier.
Specifications:
1. Power supply: 5V 70ma
2. Frequency range: 100K-6GHz
• Ultra-low noise figure, 0.4 dB NF at 1.95 GHz
• High gain at 1.95 GHz, 20 dB gain
• High linearity, +35 dBm output IP3
• High input power robustness, +22 dBm CW
• Stable performance
• 50 ohm input/output
3. Connector: SMA female
4. Size: 45*45*18.5mm (excluding connector)
5. Weight: 46g
6. With 3.7V 300mAH battery
Package Included:
- 1 x LNA
