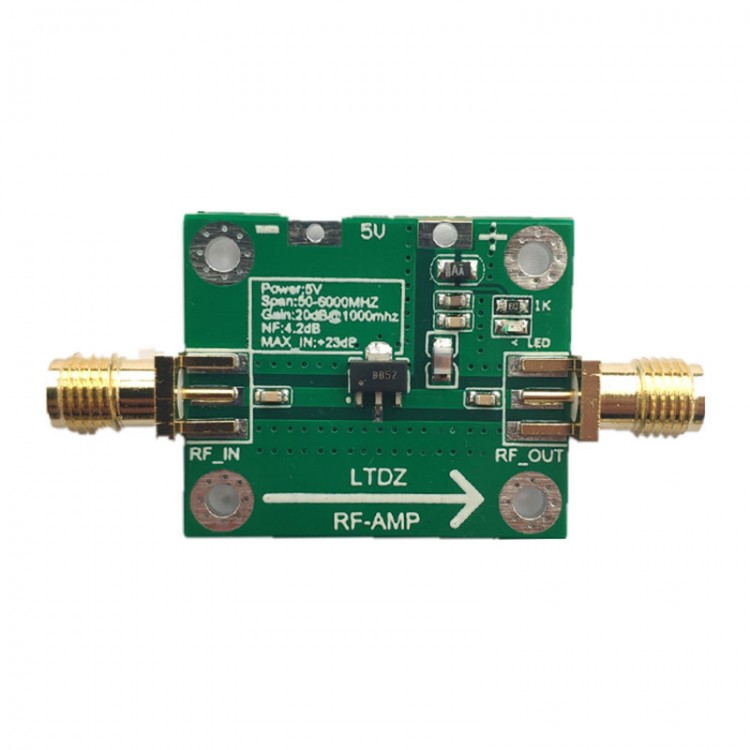

RF Power Amplifier Board Transmitter Circuit Board Amplifier Module 20dB Gain 50M-6000Mhz SBB5089
Parameter:
Size: 49mm*25mm*6.5mm
Weight: 6g
Working Voltage: 5V
Frequency Range: 50Mhz-600Mhz
Typical Gain: 20dB@1000Mhz
NF: 4.2dB
P1dB: +20.4dB
IP3: 38dBm
Maximum Input Power: +23dB
Input Impedance: 50 ohms
Application: weak RF signal amplifier, RF power amplifier pre-amplifier
Package Included:
1 x RF Amplifier Board
