RF-Power-Meter-V10 RF Power Meter Handheld Spectrum Analyzer with Spectrum Display and Type-C Port

RF-Power-Meter-V10 RF Power Meter Handheld Spectrum Analyzer with Spectrum Display and Type-C Port

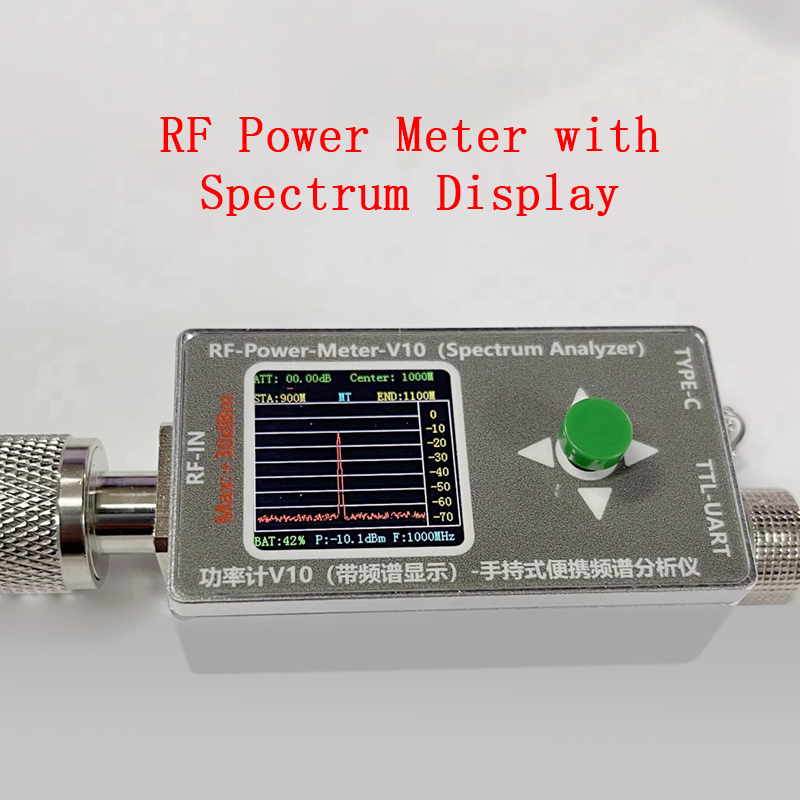

Description:
RF-Power-Meter-V10 is a high-performance, low-cost, portable RF power meter with spectrum display. TYPE-C can provide 5V power supply and high-speed data communication. It boasts compact size, stable performance, high accuracy, preset bias, wide dynamic range and fast measurement speed. It is easy to use and to carry. The software that goes with the power meter allows users to configure the power meter on a PC, making it easy to record and share data.

Features:
1. Supports a variety of high-speed dynamic acquisition and supports spectrum display. It accurately measures RF power at a single frequency
2. Supports up to 4GHz RF signal acquisition
3. Built-in numerical control attenuator (0-31.75DB). With the attenuator, it measures a maximum input power of 30dBm (1W) and a dynamic range of -70dBm to +30dBm

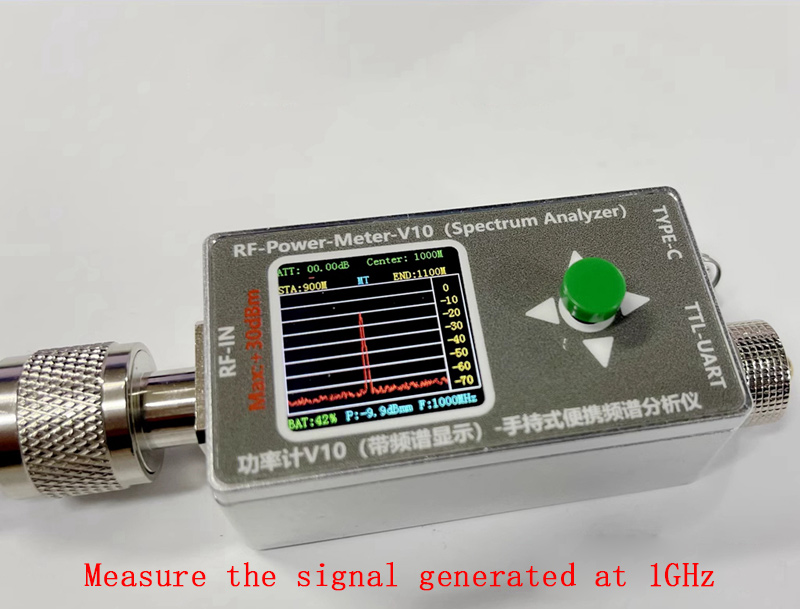

4. RF power meter with 1.3-inch TFT LCD and built-in lithium battery. It can be run offline (spectrum)

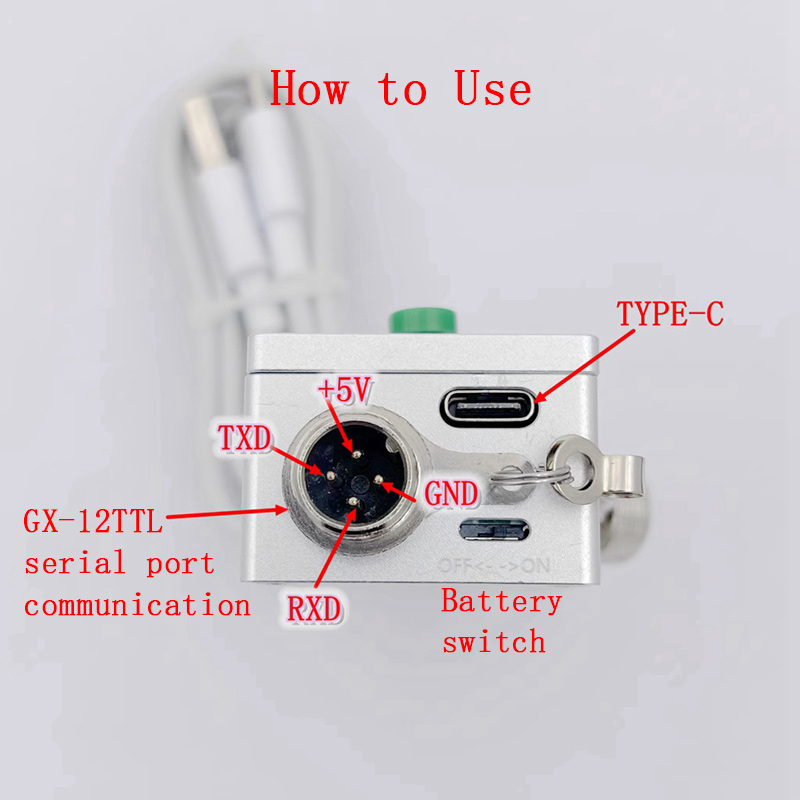

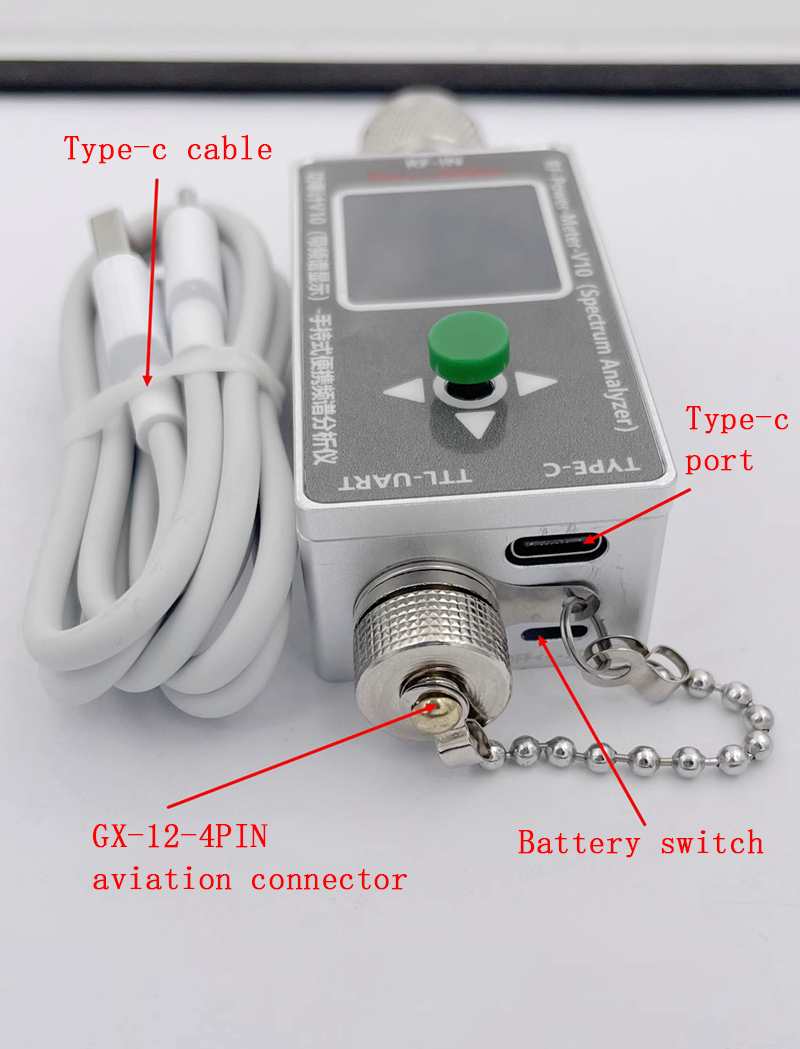

5. A 4-pin aviation connector is used to provide TTL serial port reading and writing.
6. The host computer has 2 MARK cursor functions, which is convenient for measuring the modulation pulse width. It can automatically find the maximum and minimum values
7. RF input interface: N male connector
8. Boot process: check and make sure that the battery switch is in the ON position, and then press the middle button of the panel
9. Shutdown process: Long press the middle button to shut down

Applications:
1. Calibration of RF instruments;
2. Detection and maintenance of RF equipment;
3. Measurement of SWR of RF circuit (with feedback bridge);
4. Measurement of return loss of RF circuit;
5. Interference detection between wireless communication equipment;
6. Detection of RSSI (Received Signal Strength Indication) and transmit power level;
7. Performance evaluation of step attenuator;
8. Measurement of the gain of amplifiers and the attenuation of network;
9. Measurement of forward power and reflected power in directional coupler;
10. Power measurement of GSM signal modulated by GMSK;

Specifications:
1. Measurement power range: -70 to +30dBm (-40dBm to 0dBm has a good linearity. When the input signal is greater than 0 to +30dbm, internal numerical control attenuator ATT = 30DB and OFFSET = +30DB must be set. After measurements, and it will display the measured power;
2. Measurement power resolution: ±0.1dBm;
3. Measurement frequency range: 35M~4.4GHz (different frequency ranges of different models);
4. Input impedance: 50Ω;
5. Dynamic range: 100dB;
6. Working voltage: 5VDC (powered by TYPE-C cable);
7. Charging current: 400mA;
8. Size: 66 x 36 x 24mm/2.6 x 1.4 x 0.9" (excluding the size of N connector); Weighs less than 100g/0.2lb.

Package Included:

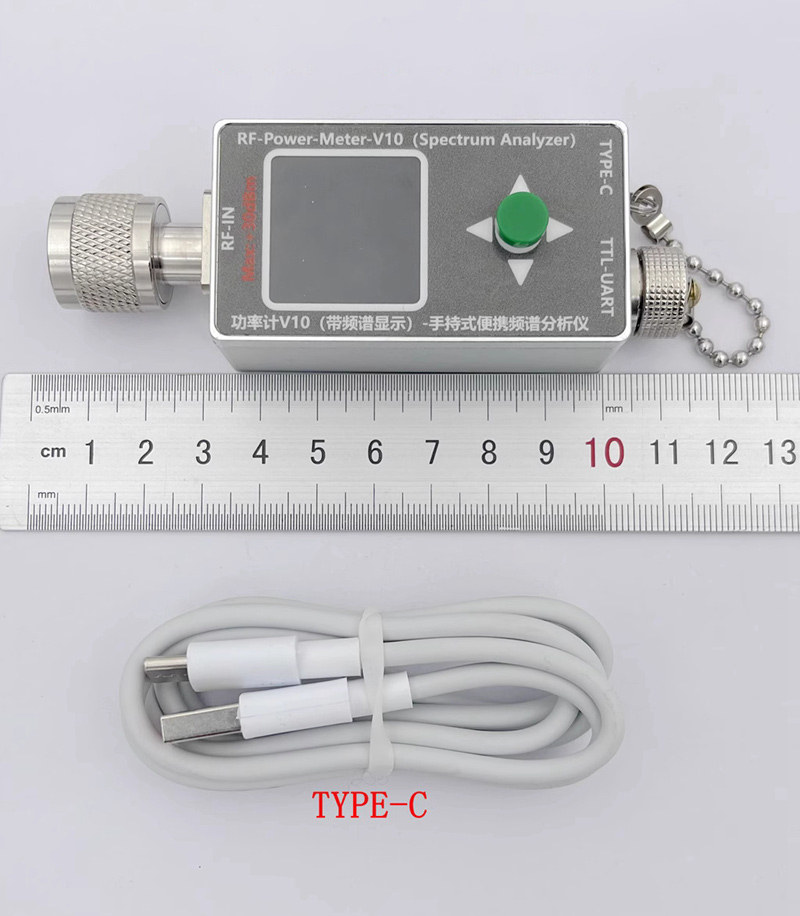

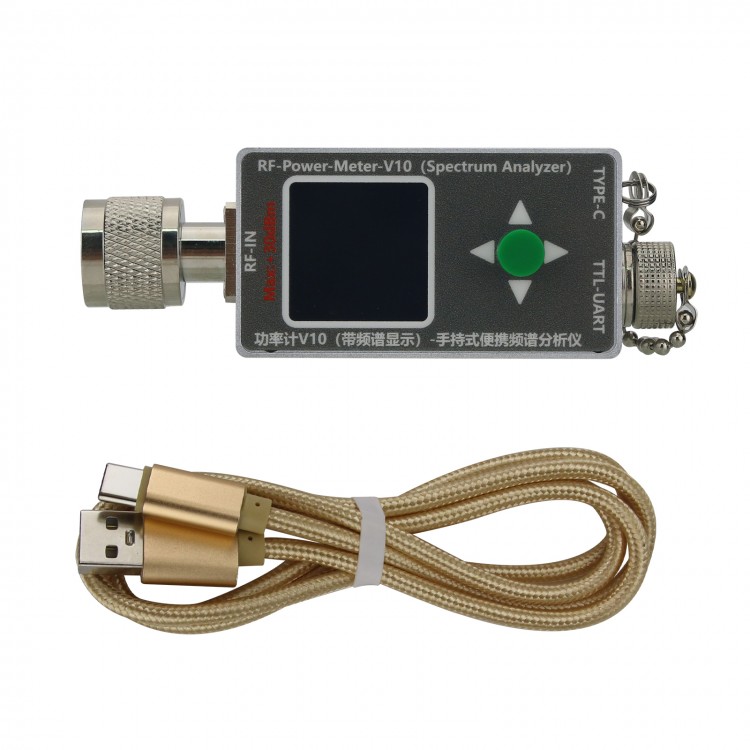

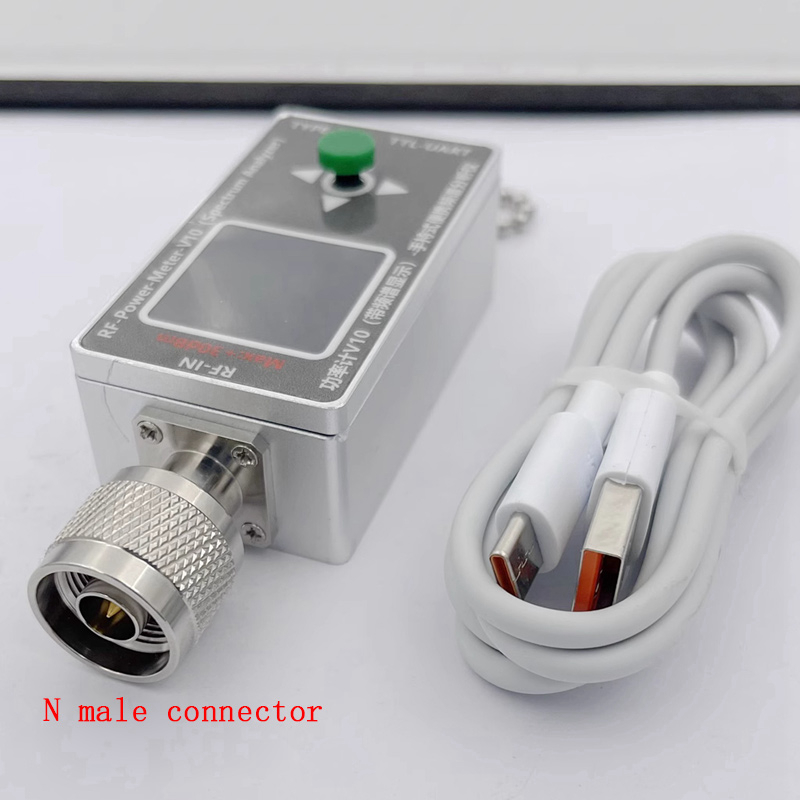

- 1 x Main unit with aluminum alloy shell
- 1 x Type-c cable

Packaging Details:
- G.W.: 0.2kg

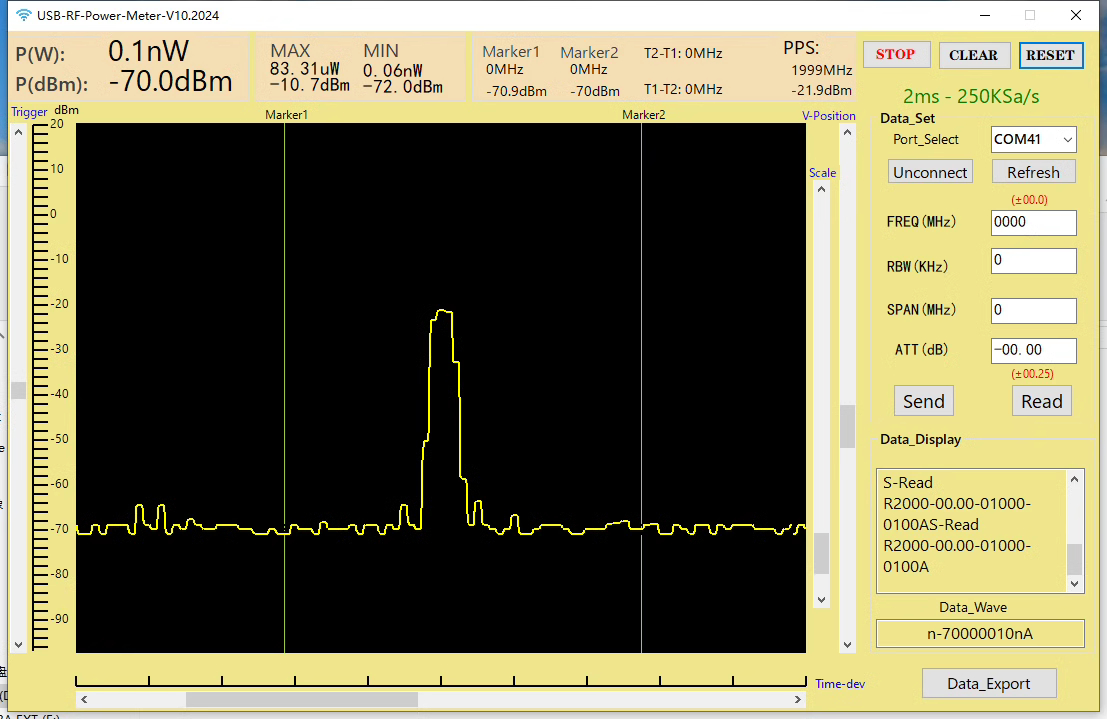

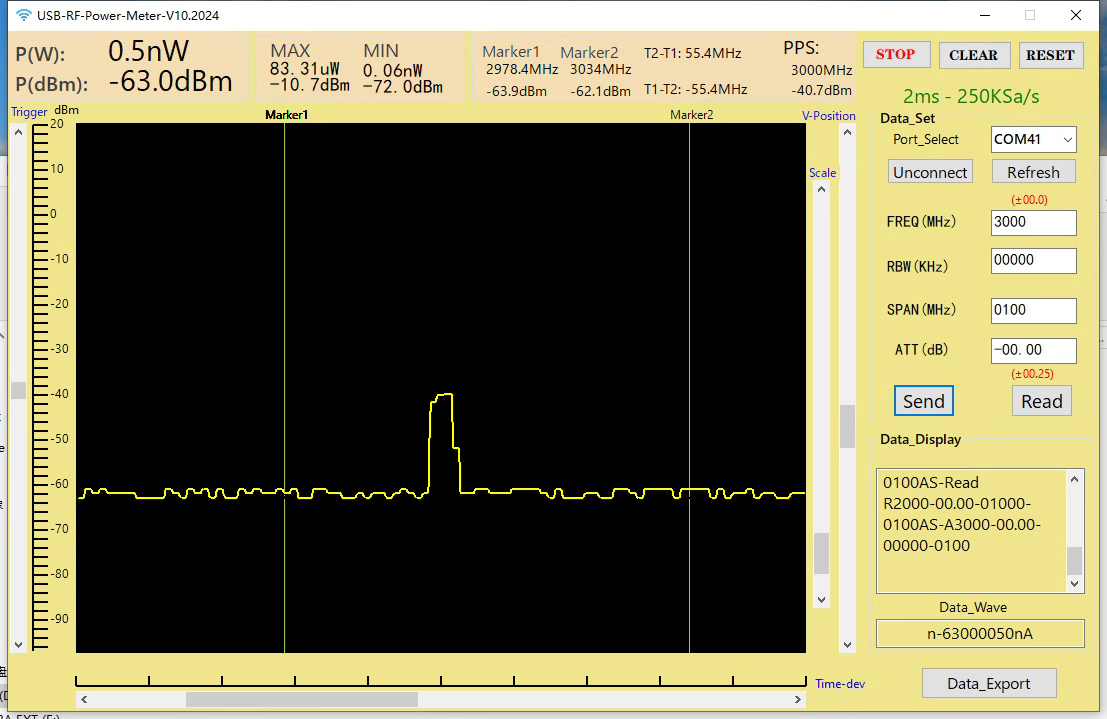

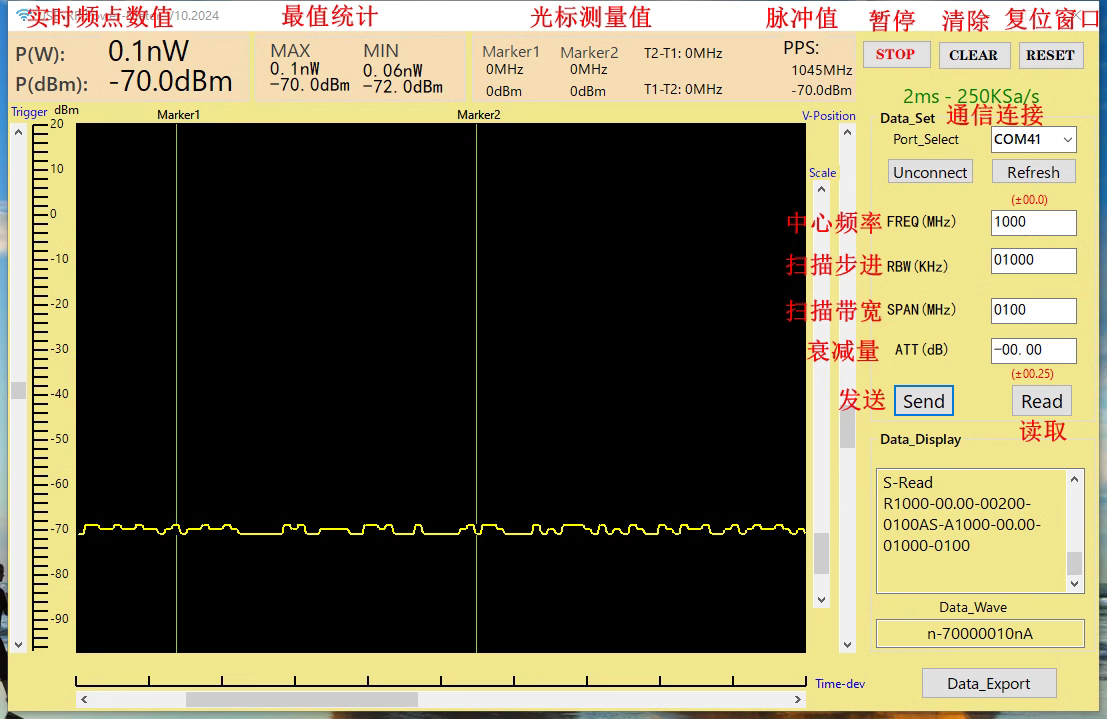

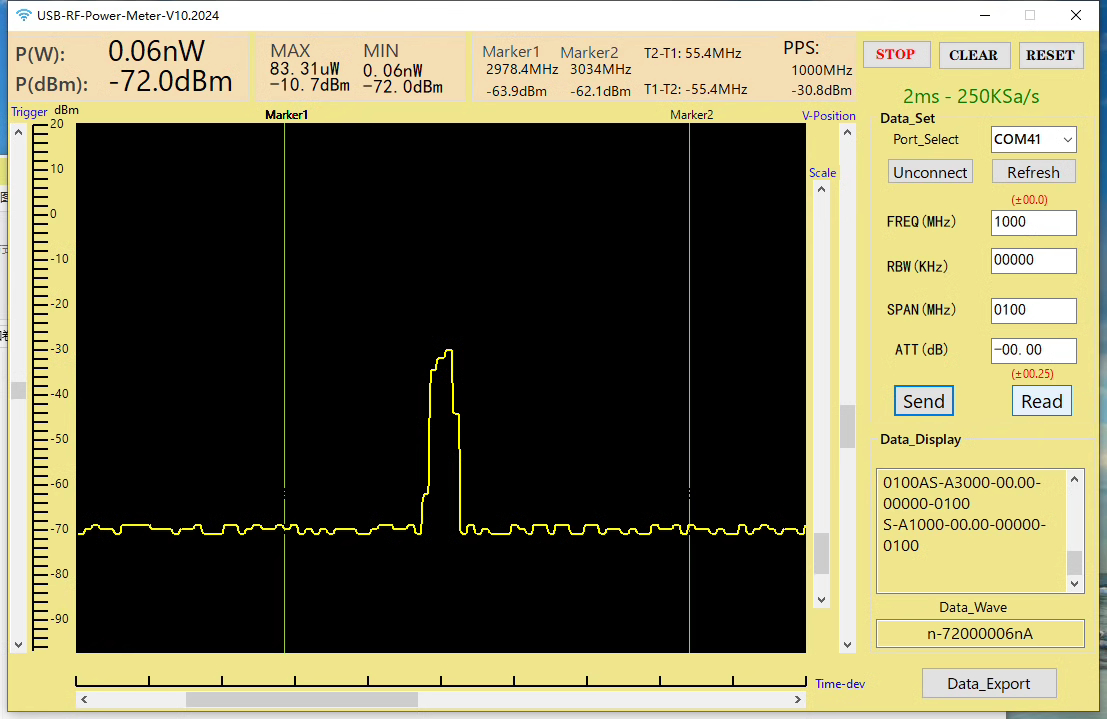

Display spectrum with host computer:

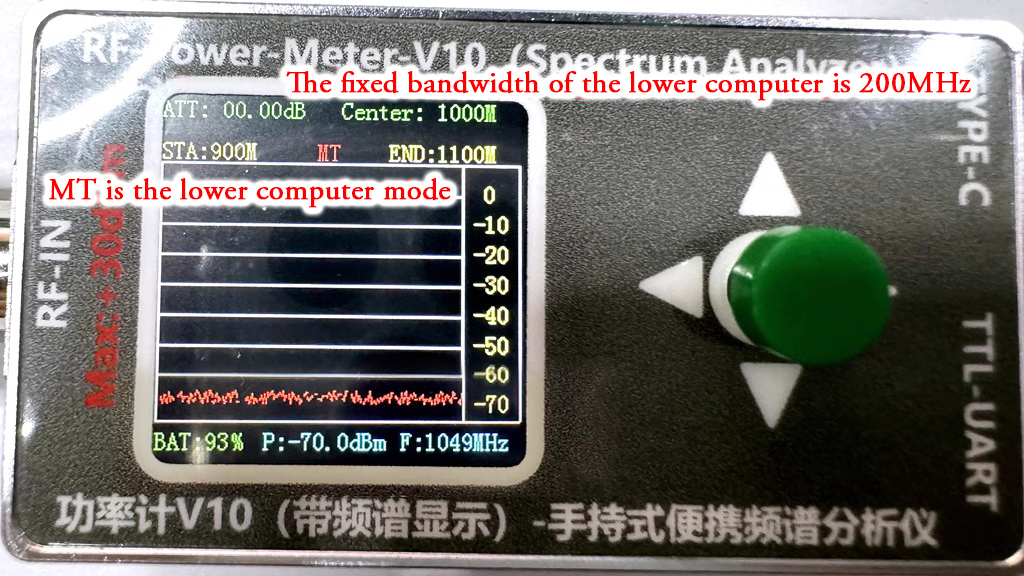

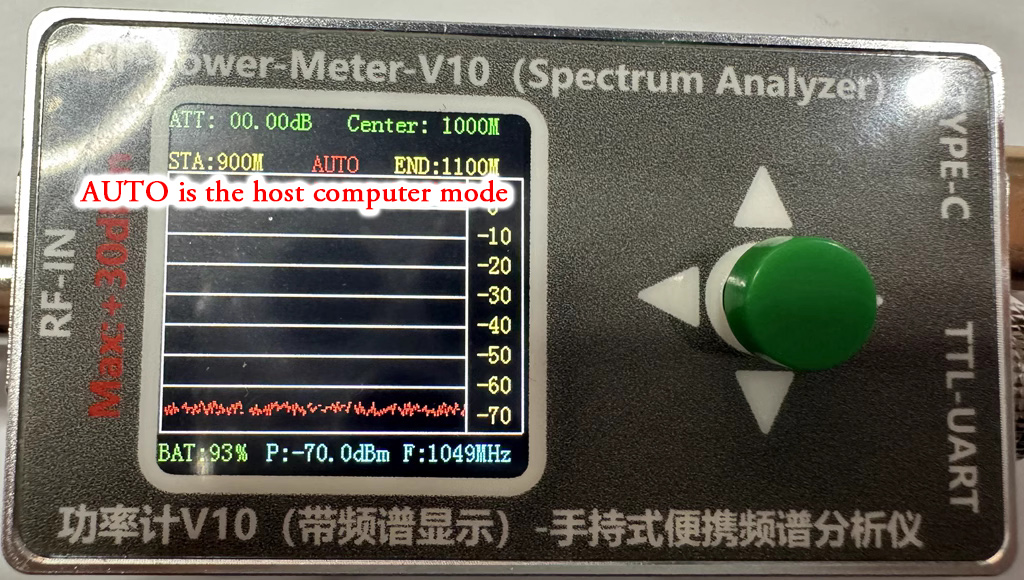

Spectrum display of the lower computer:
