RF Signal Generator RF Frequency Generator Frequency Source w/ OLED Display 35MHZ-4.4GHZ ADF4351

Availability: In stock, usually dispatched in 1 business day

  • Price:$132.08
  • Price in reward points: 1321 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $129.44 $126.80 $122.83 $117.55 Contact US
Quantity:

RF Signal Generator RF Frequency Generator Frequency Source w/ OLED Display 35MHZ-4.4GHZ ADF4351

Features:

- Operating Frequency Range: ADF4351V4.0(35MHZ-4.4GHZ)
- Frequency Step: 10KHz
- Max. Output Level Dynamic: 60DB
- Local Oscillator Stability: 0.28PPM
- Power Supply: 9-15V
- Weight: Less than 200g
- OLED display, button operation interface and USB interface
- With PC software, providing communication protocols. USB-serial chip PL2303SA, baud rate 115200BPS

Package Included:
- 1 x RF Signal Generator
- 1 x 12V Power Adapter
- 1 x SMA-Q9 Cable

Note: Please contact us for PC software after purchasing. Thank you!

Operation Introduction:
1. Display Interface When Powered


- S1: Right shift cursor
- S2: Cursor value reduces
- S3: OK (After the data is changed, you need to press the confirmation button)
- S4: Cursor value increases
- S5: Left shift cursor

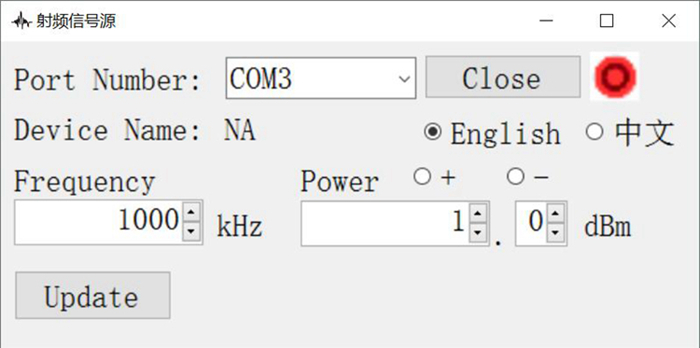

2. PC Software:

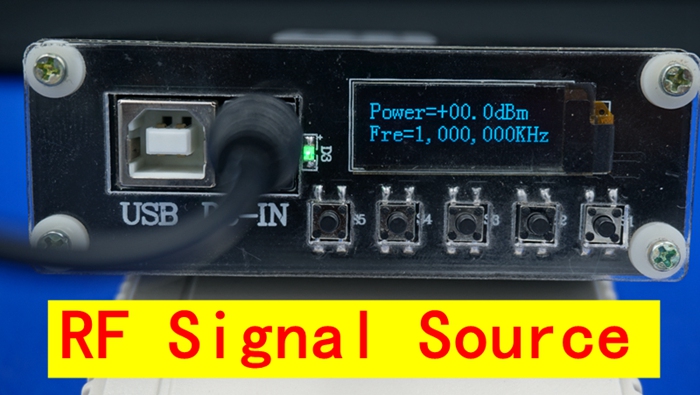

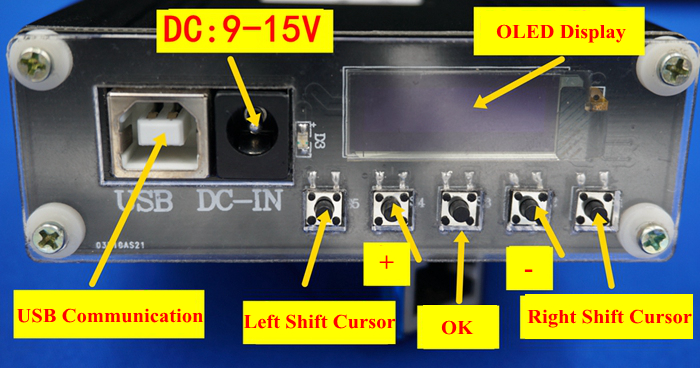

3. Front Panel:


Measured Spectrum:

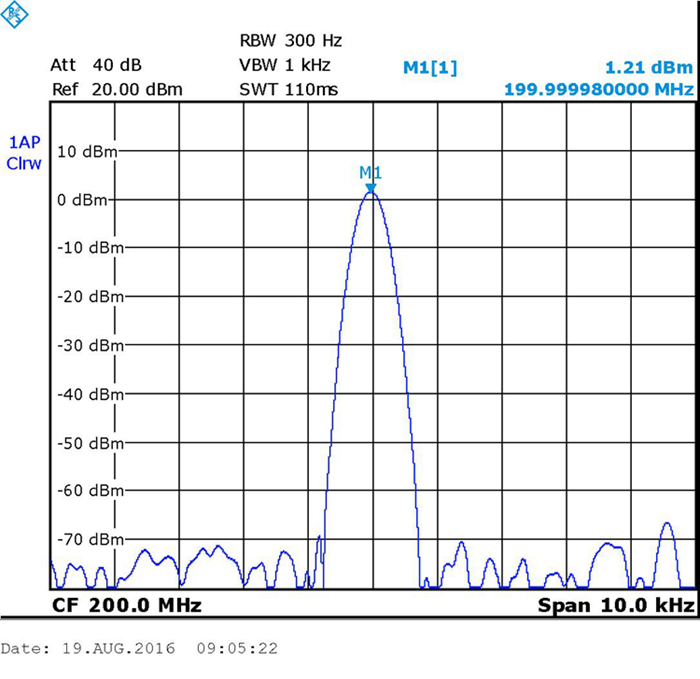

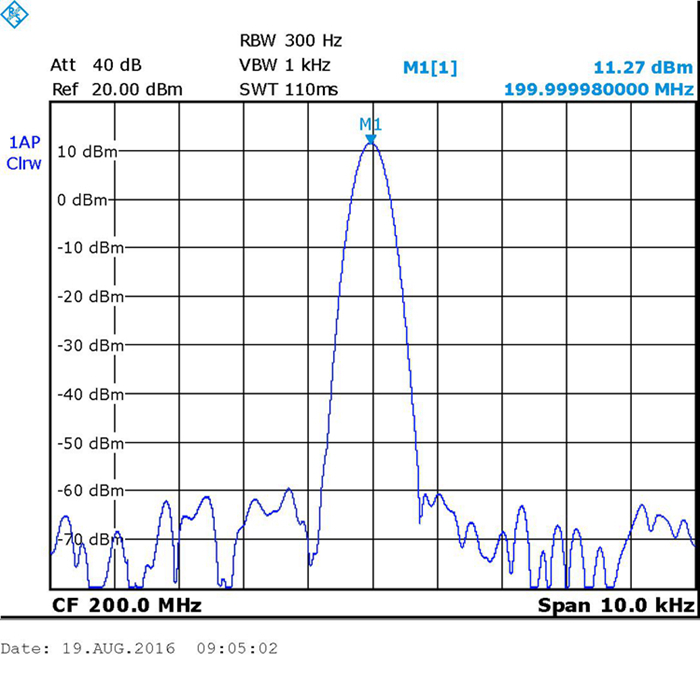

1. Test @0.2GHz

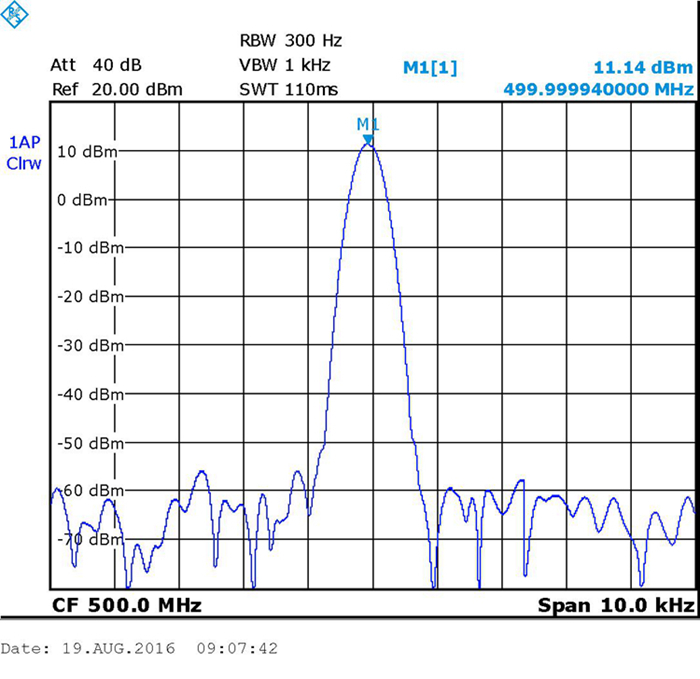

2. Test @0.5GHz

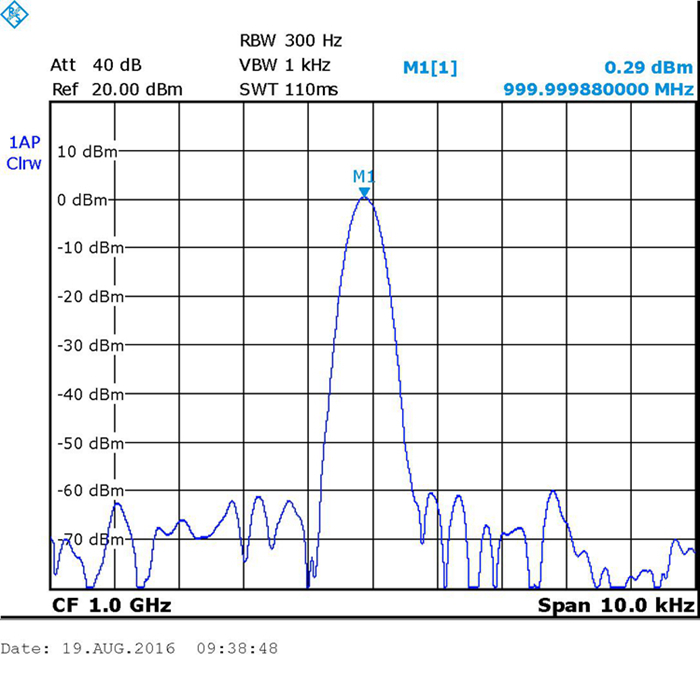

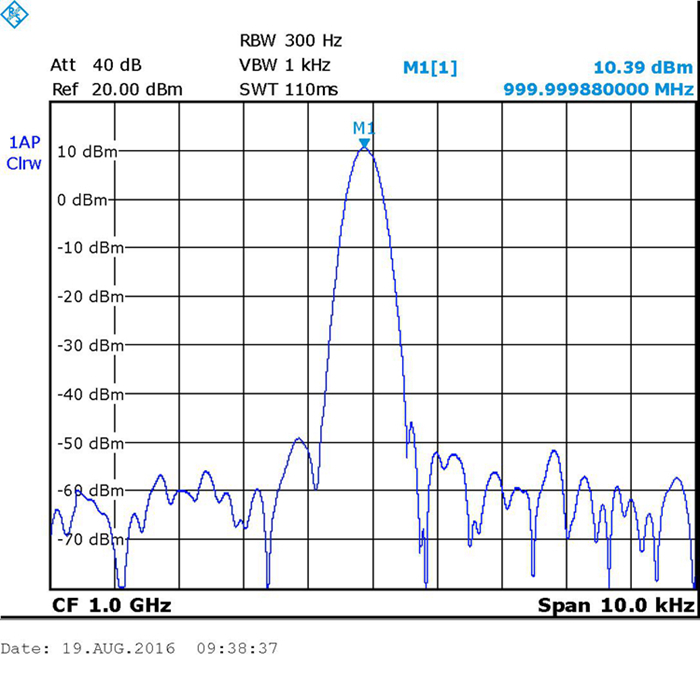

3. Test @1.0GHz

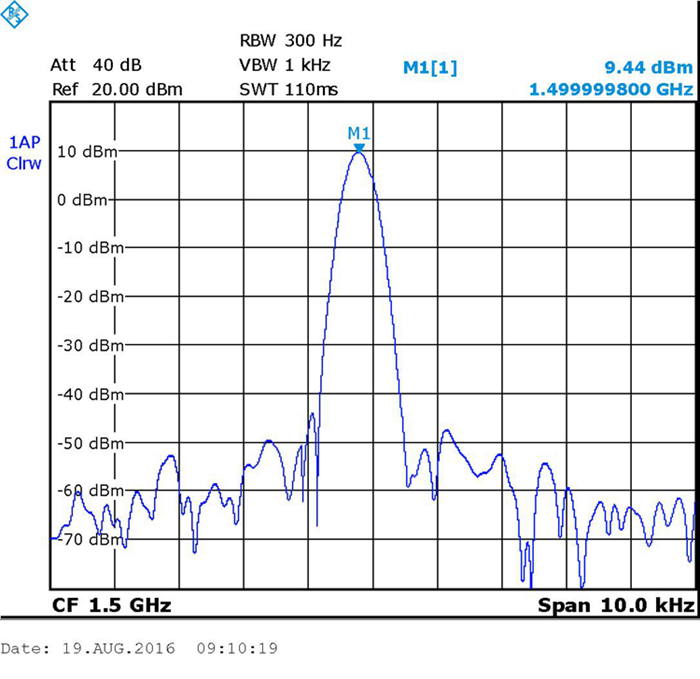

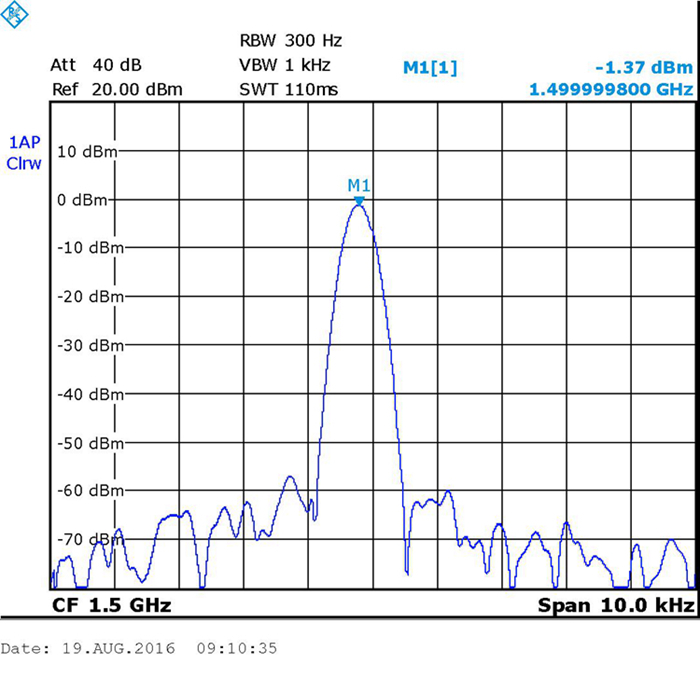

4. Test @1.5GHz

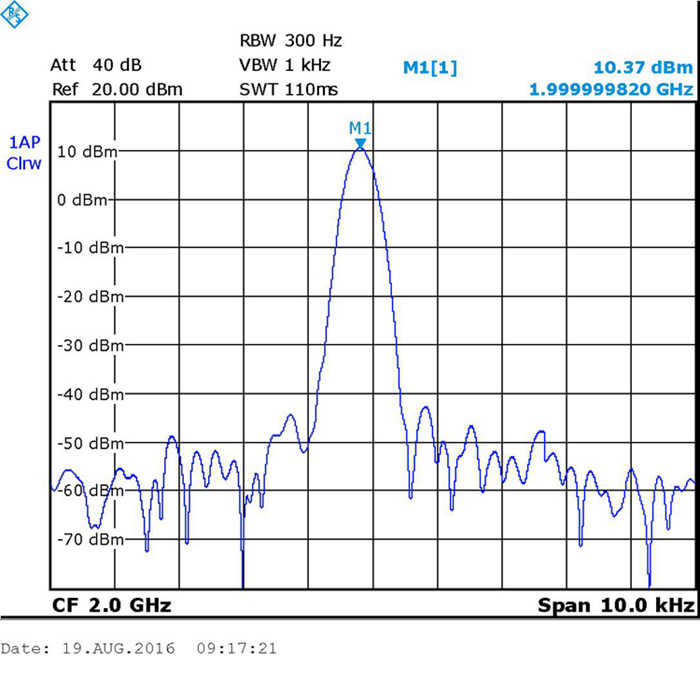

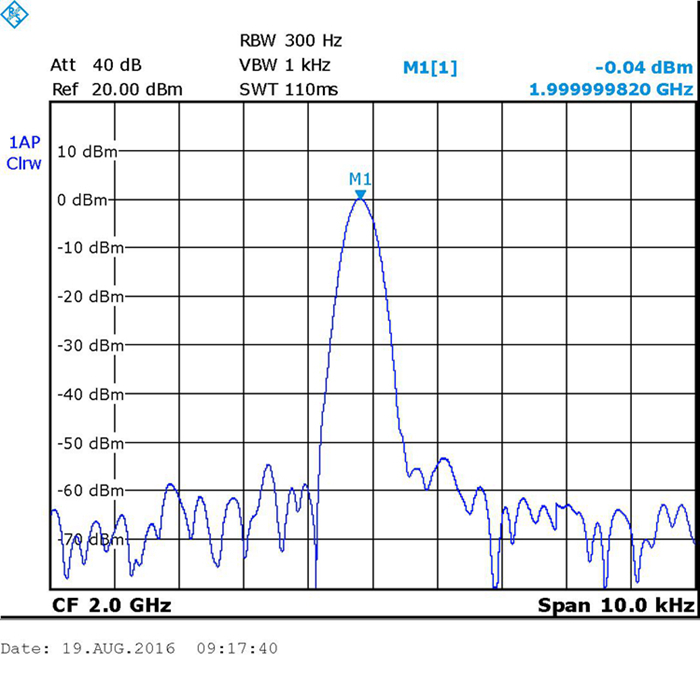

5. Test @2.0GHz

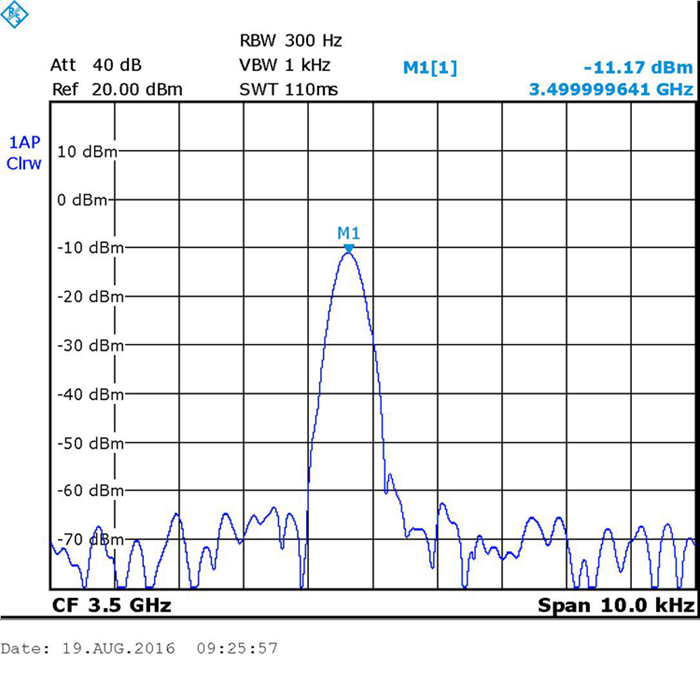

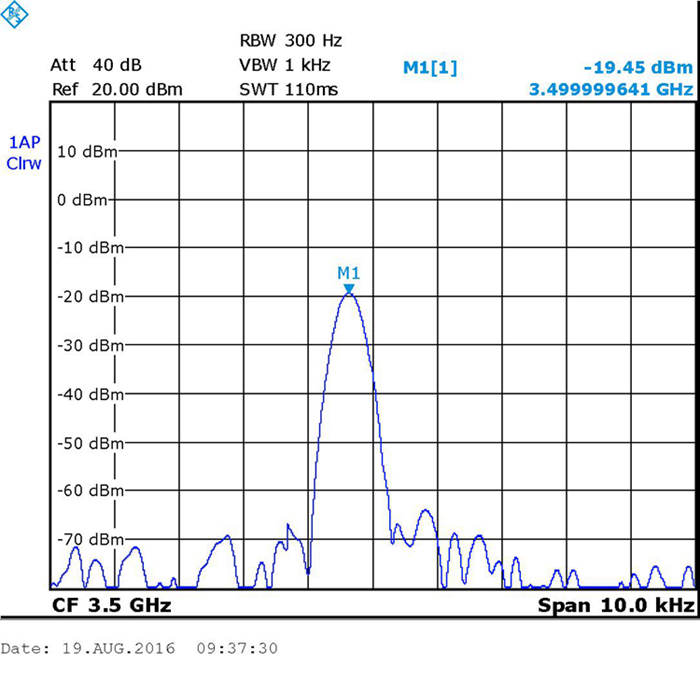

6. Test @Over 3GHz
