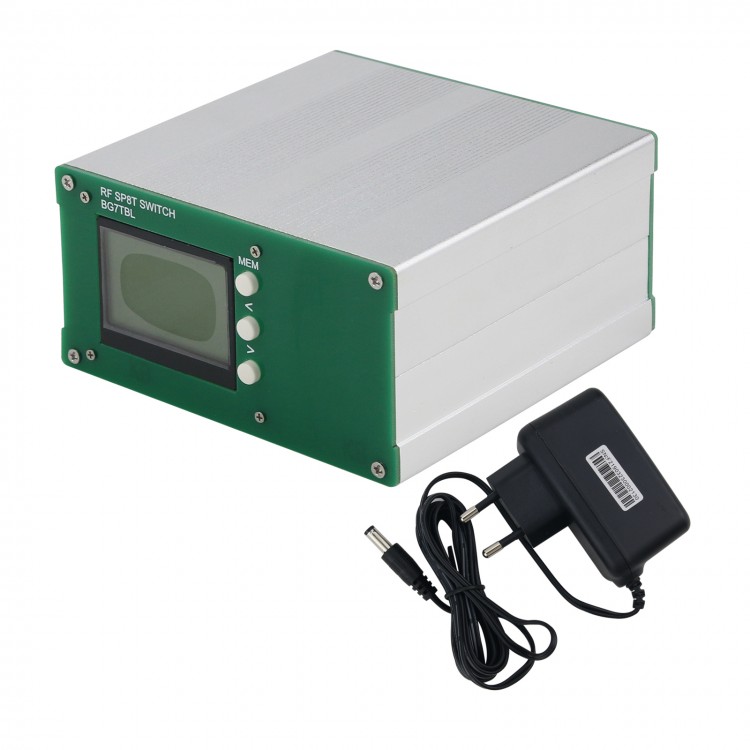

RF SP8T Switch 10K-2.5G Single Pole Eight Throw CNC Program Control RF High Frequency Microwave Switch

Availability: In stock, usually dispatched in 1 business day

  • Price:$121.00
  • Price in reward points: 1210 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $118.58 $116.16 $112.53 $107.69 Contact US
Quantity:
Buy it now Add cart

You might like

  • $0.00
  • $0.00
  • $0.00
QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

QM-SP8T-DT8D DC-8GHz SP8T Switch RF Switch Microwave Switch Single-Pole Eight-Throw Switch Module

$84.62

(0)
QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

QM-SP8T-6S 100MHz-6GHz RF Single Pole Eight Throw Switch Wideband Microwave Switch with SMA Female Connector

$59.29

(0)
QM-SP8T-DT7E DC-7GHz 8-Channel RF SP8T Switch Wideband Single Pole Eight Throw Microwave Switch

QM-SP8T-DT7E DC-7GHz 8-Channel RF SP8T Switch Wideband Single Pole Eight Throw Microwave Switch

$64.06

(0)
QM-SW-20T 0.7-5GHz 20W High Power SPDT Switch Wideband RF Single Pole Double Throw Switch 37dBm for CW

QM-SW-20T 0.7-5GHz 20W High Power SPDT Switch Wideband RF Single Pole Double Throw Switch 37dBm for CW

$45.30

(0)
Sliding Table Kit Stepping Motor Encoder Lead Screw Stroke 7.7" PLC Positioning Control Practice

Sliding Table Kit Stepping Motor Encoder Lead Screw Stroke 7.7" PLC Positioning Control Practice

$147.11

(0)
SKY13418 SP8T RF Switch Module 0.1G 10K - 6G Testing Board Single Pole Eight Throw Demo Board RF Microwave

SKY13418 SP8T RF Switch Module 0.1G 10K - 6G Testing Board Single Pole Eight Throw Demo Board RF Microwave

$38.11

(0)
HMC8038W 0.1-6GHz Wideband RF Switch Module Single Pole Double Throw Switch High Isolation Microwave Switch

HMC8038W 0.1-6GHz Wideband RF Switch Module Single Pole Double Throw Switch High Isolation Microwave Switch

$17.89

(0)
HMC7992 Module Non-reflective Module Board 0.1GHz to 6GHz Single-Pole Four-Throw SP4T Silicon Switch

HMC7992 Module Non-reflective Module Board 0.1GHz to 6GHz Single-Pole Four-Throw SP4T Silicon Switch

$26.79

(0)

RF SP8T Switch 10K-2.5G Single Pole Eight Throw CNC Program Control RF High Frequency Microwave Switch

Specification:
Type: RSW8
Frequency range: 10K-2.5G
Input/output impedance: 50 ohm
input power: max 18dbm
Interface mode: SMA, USB printer port
Switch speed:0.1μS
Insertion loss: 3dB max
Isolation: >30dB
Power supply: DC 11.7-12.5V/2W
Size: L*H*D=106*55*120mm
Weight:450g
Button function: MEM:remember state; <>: change channel
Communication: 9600BPS, $SRF1*choose RF1, $SRF2*choose RF2……$SRF8*choose RF8

Package List:
-1 x SP8T Switch
-1 x Adapter DC 12V
