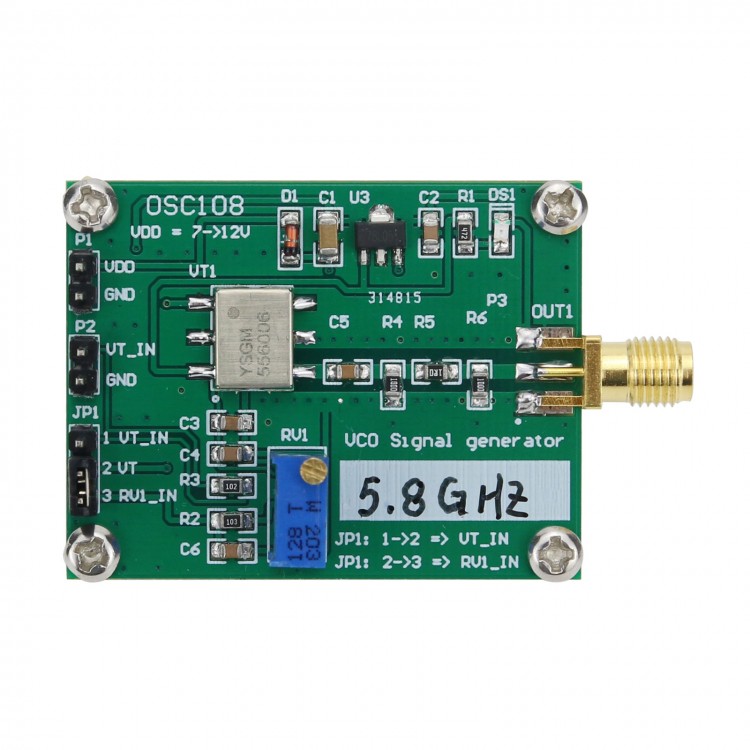

RF VCO Signal Source Microwave Voltage Controlled Oscillator Signal Generator 5.8G 5725-5850MHz

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.53
  • Price in reward points: 225 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.08 $21.63 $20.95 $20.05 Contact US
Quantity:
Buy it now Add cart

You might like

RF VCO Signal Source Microwave Voltage Controlled Oscillator Signal Generator 2.4G 2300-2485MHz

RF VCO Signal Source Microwave Voltage Controlled Oscillator Signal Generator 2.4G 2300-2485MHz

$20.99

(0)
2.4G RF Microwave Voltage Controlled Oscillator RF VCO Signal Generator RF Signal Source For Radios

2.4G RF Microwave Voltage Controlled Oscillator RF VCO Signal Generator RF Signal Source For Radios

$24.62

(0)
25MHz-6GHz HMC833 Phase-Locked Loop Module RF Signal Generator 7V to 9V HMC833 Core Board

25MHz-6GHz HMC833 Phase-Locked Loop Module RF Signal Generator 7V to 9V HMC833 Core Board

$64.45

(0)
ADF4355 250Mhz to 6.8G Sweep RF Signal Source Generator VCO Microwave Frequency Synthesizer PLL

ADF4355 250Mhz to 6.8G Sweep RF Signal Source Generator VCO Microwave Frequency Synthesizer PLL

$133.36

(0)
ADF5355 Colour Touch Screen Module VCO Microwave Frequency Synthesizer PLL

ADF5355 Colour Touch Screen Module VCO Microwave Frequency Synthesizer PLL

$150.33

(0)
AD9959 4-Channel DDS Module RF Signal Generator AT Commands Serial Output Frequency Sweep AM

AD9959 4-Channel DDS Module RF Signal Generator AT Commands Serial Output Frequency Sweep AM

$145.31

(0)
HW205 5.8GHz VCO Sweep Signal Generator Module RF Signal Source Sweep Generator With Sweep Frequency

HW205 5.8GHz VCO Sweep Signal Generator Module RF Signal Source Sweep Generator With Sweep Frequency

$41.55

(0)
HackRF One R9 V2.0.0 SDR Radio + PortaPack H2M + Plastic Shell Assembled + 5 Antennas + USB Cable

HackRF One R9 V2.0.0 SDR Radio + PortaPack H2M + Plastic Shell Assembled + 5 Antennas + USB Cable

$179.00

(0)

RF VCO Signal Source Microwave Voltage Controlled Oscillator Signal Generator 5.8G 5725-5850MHz

Specification:
Output frequency range: 5725~5850MHz
Maximum output amplitude: <5dBm
Working voltage: 7~12V
Size: 45*35mm
Weight: 12g
2.0 P1 interface: VDD: positive power supply; GND: negative power supply
P2 interface: VT_IN: input tuning voltage (VCO) signal (0~9V); GND: negative power supply.
P3 interface: output signal (RP SMA KE KHD outer screw inner hole)
JP1 jumper: select external or internal (potentiometer) input tuning voltage; JP1: 1->2 => VT_IN; JP1: 2->3 => RV1_IN
RV1: internal (potentiometer) input tuning voltage

Package List:
1 x Voltage Controlled Oscillator
