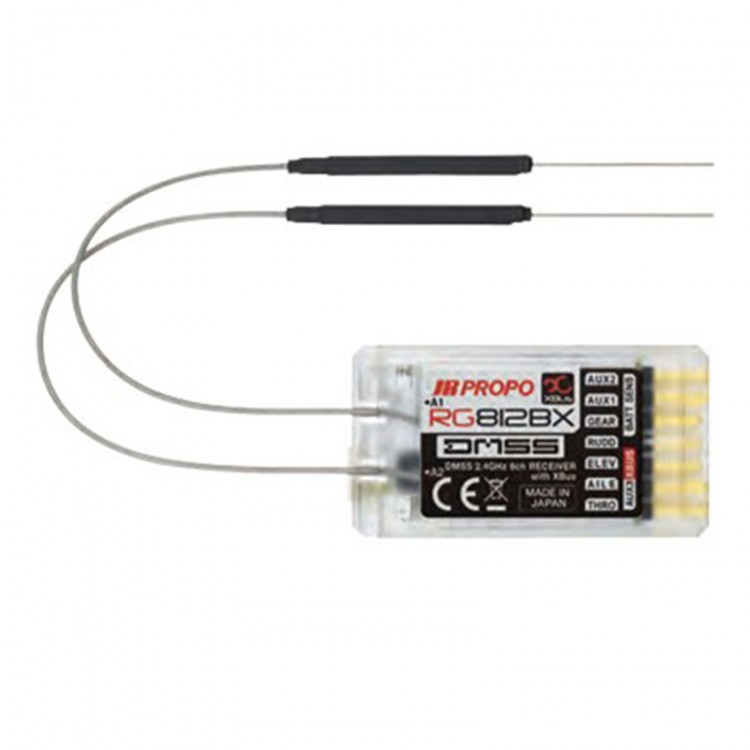

RG812BX 8-Channel Rx with XBus&Antenna Diversity Full Range Telemetry Receiver for RC FPV Multicopter

RG812BX 8-Channel Rx with XBus&Antenna Diversity Full Range Telemetry Receiver for RC FPV Multicopter

Description:
Dual Modulation Spectrum System (DMSS) 2.4GHz protocol offers a secure radio link that combines DSSS and FHSS capabilities into a wide-band
transmission system that includes high speed response and high resistance against RF noise. One benefit of DMSS is the JR® Intelligent Output System (IOS), which automatically selects control signals that need to be transmitted at exactly the same time and delivers the data as one complete signal frame. IOS ensures there is no time delay when commanding servos used for critical functions, such as a CCPM swash plate on a helicopter or when operating a wing control surface with multiple servos. To meet the needs of all sport and competition RC aircraft – either engine or electric powered – the DMSS 8-channel RG812Bx receiver features a hard plastic case . JR DMSS receivers, like the RG812Bx, are the lightest and smallest in their class and have the ability to work within a voltage range from 4.8–8.5 volts to giving you a wide choice of power options. And they are compatible with all JR® DMSS transmitters including the XG6, XG8 and XG11 transmitters, and include bi-directional communication to handle real-time telemetry information. Receiver input voltage telemetry is standard, and there is the option to add on other sensors (available separately) vital to the status of your aircraft such as RPM, temperature and altitude.
- The AUX3 port can be interchanged between PWM/XBus Output.
- Easy Bind method.

Specification:
- Dimensions: 14.5 x 25.5 x 47.5mm
- Weight: 15g
- System: DMSS 8-Channel
- Operating Voltage: 4.5 - 8.5V
- Two-way communication
- XBus Compatible
- Diversity antenna type
- Remote antenna (1) can be added
- Full range
- Long distance telemetry

Package included:
- 1* RG812B X receiver
- 1* Plug
