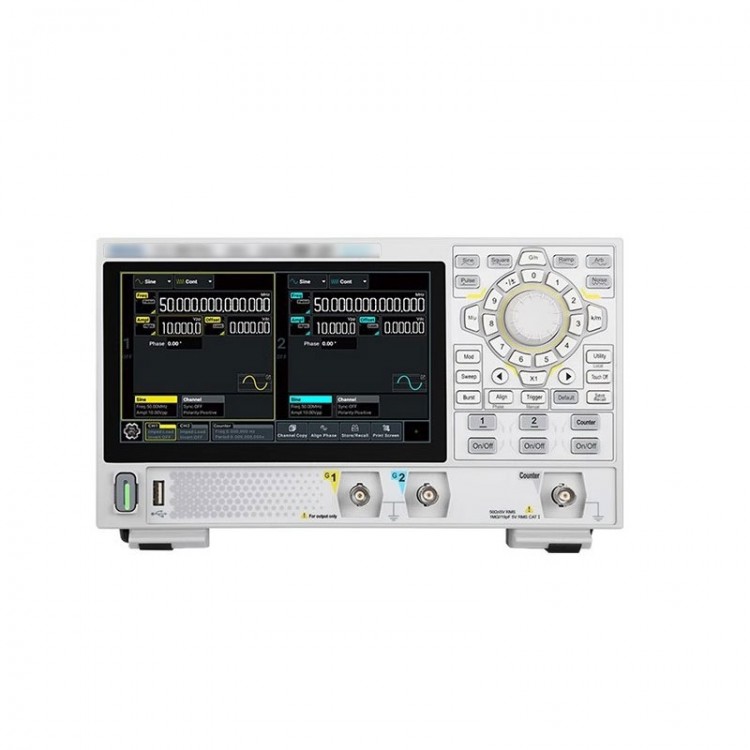

RIGOL DG822 Pro 25MHz Dual Channel Function Arbitrary Waveform Generator with 7-inch Touch Screen

RIGOL DG822 Pro 25MHz Dual Channel Function Arbitrary Waveform Generator with 7-inch Touch Screen

Description:
- DG8xx Pro series is a multifunctional AFG that integrates functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, frequency meter, etc. The brand new appearance and user-friendly interface design bring a friendly user experience.

Features:
- Max. sample rate: 625MSa/s
- Max. output frequency: 25MHz
- 16-bit vertical resolution
- Arbitrary waveform editing function with a max. Arb waveform length of 2Mpts/CH
- Built-in high-order harmonic generator (max. 20th order)
- Independent signal frequency measurement channel with a max. frequency of 500MHz
- USB and LAN interfaces for remote connection
- Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field
- Standard Web Control function for easier remote cooperation

Outstanding Accuracy:
- 625MSa/s maximum sampling rate, 16bit vertical resolution, more accurate waveform output, and cost-effective choice for entry-level signal sources.

7-inch Color Touch screen display:
- 7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

Equipped with Type-C Connector:
- Type-C connector enable DG8xx Pro to be powered up by mobile power supply, make on-site testing more convenient.

Smart Appearance:
- The 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.

Fast Rising Edge:
- 40MHz square wave and 25MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

Ultra Low Signal Jitter:
- Based on RIGOL's SIFI ll technology, the DG8xx Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable. Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

Rich Modulation Functions:
- Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

Sequence Function:
- Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

Maximum 20th Harmonic Generation Function:
- Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices.

High Resolution Frequency Meter:
- A 7-bit 500MHz frequency meter that can measure parameters such as frequency, period, duty cycle, positive and negative pulse width from external input signals, and supports statistical analysis of measurement results.

Package Included:
- 1 x Generator
- 1 x Power Adapter
- 1 x USB Data Cable
- 1 x BNC Cable
