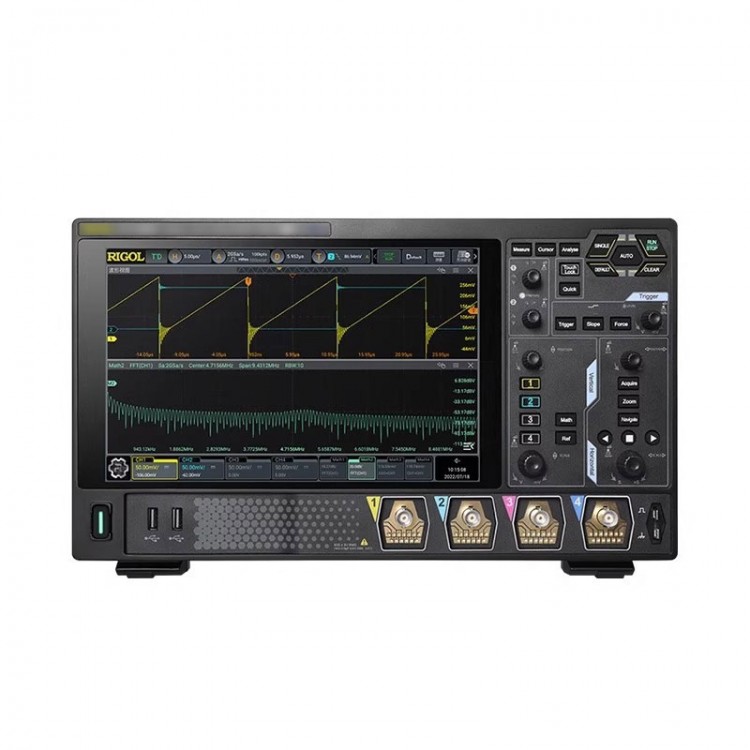

RIGOL DHO4204 200MHz 12Bit High Resolution Multifunctional Digital Oscilloscope with 10.1-inch HD Touch Screen

RIGOL DHO4204 200MHz 12Bit High Resolution Multifunctional Digital Oscilloscope with 10.1-inch HD Touch Screen

Description:
- The DHO4000 Series provides improved signal integrity and capability with our latest oscilloscope technology. Our Ultra Vision III platform combined with a new ASIC chip design that provides true 12 bit samples makes the HDO4000 a great solution for high speed, high signal fidelity applications. With bandwidths from 200 MHz to 800 MHz, these 4 channel oscilloscopes have our best signal visualization capabilities for design and debug. Combine 500 Million points of memory, our new Ultra Acquire burst acquisition mode, and advanced analysis functions for the best signal fidelity value on the market.

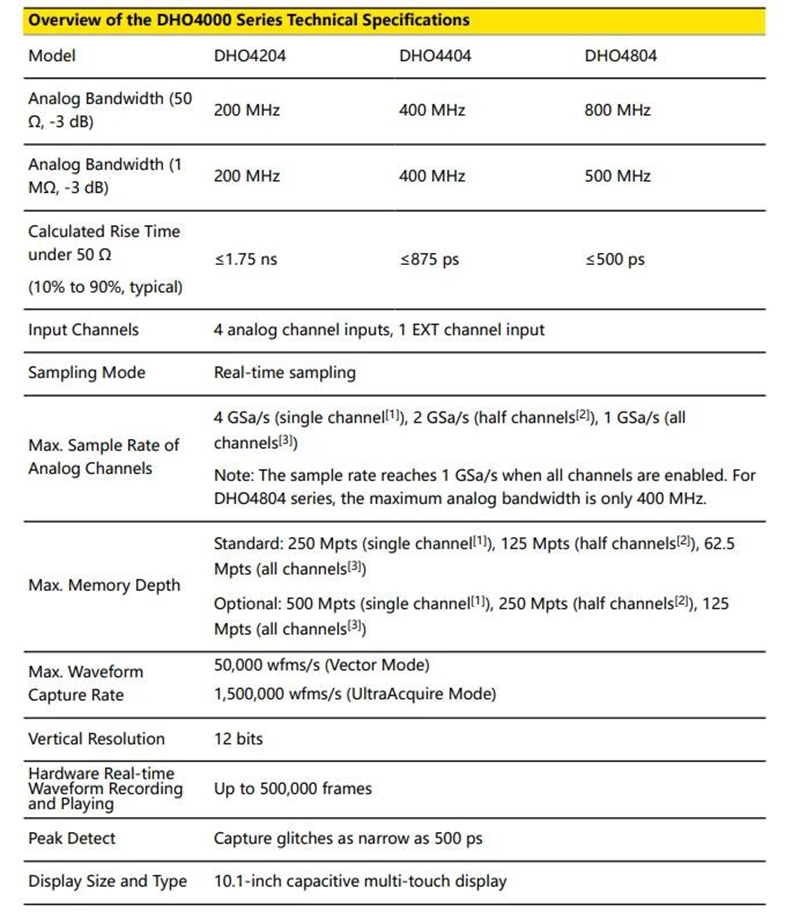

Features:
- Ultra-low noise floor at 18 μVrms in minimum
- 12-bit vertical resolution[1]
- 200/400/800 MHz analog bandwidth (selectable), 4 analog channels, and 1 EXT channel
- Up to 4GSa/s real-time sample rate
- Max. memory depth: 500Mpts
- Min. vertical sensitivity: 100μV/div
- Up to 1,500,000wfms/s waveform acquisition rate with the UltraAcquire mode
- 10.1-inch 1280x800 HD touch display
- User-friendly Flex Knobs, bringing smoother interaction
- Standard photoelectric encoder operating knobs, effectively prolonging its service life
- Standard USB Device & Host, LAN, and HDMI-compatible interfaces
- Support online version upgrade

12 Bit Resolution: 16x improvement in quantization uncertainty. RIGOL’s latest Oscilloscope technology includes a new custom chipset design enabling sampling with true 12 bit resolution. This reduces the quantization level between bits by a factor of 16. These high resolution samples improve signal fidelity and analysis capabilities for signals from power to communications.

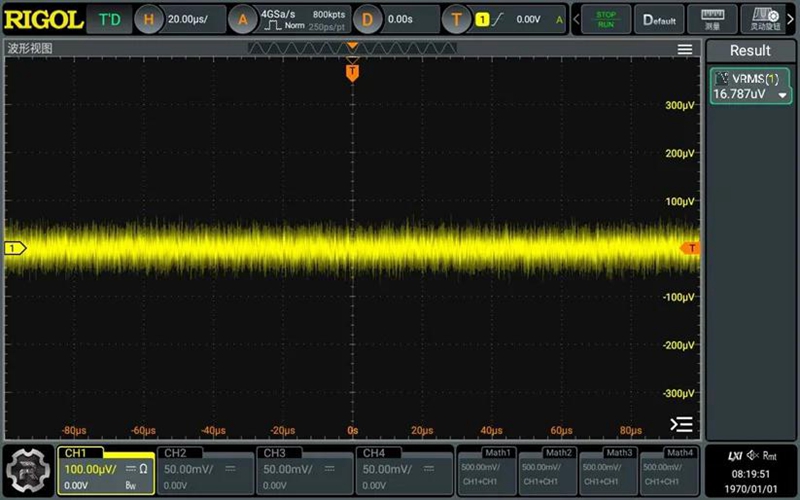

Low Noise: New ASIC chipset with dramatically lower front end noise. Make the most of 12 bit analog to digital converters with a significantly lower noise floor. With the noise reduced by a factor of 5 compared to our UltraVision II Oscilloscopes analyze smaller signal artifacts with a combination of speed and accuracy. The HDO4000 has a 100uV/div range setting with demonstrated noise as low as 18uVrms with a 20MHz bandwidth filter. Regardless of the level or signal speed, view more of the signal with the high signal fidelity of the HDO4000 Series.

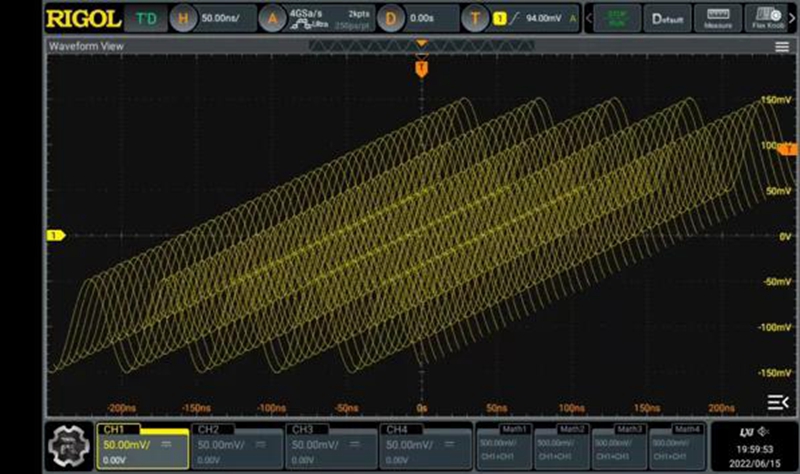

Ultra Acquire Burst Acquisition: Visualize dynamic signals with multiple display modes. Acquisition and visualize events at up to an equivalent rate of 1.5 million waveforms per second. Set your frame number to catch and visualize using a density, waterfall, perspective, or mosaic display. Utilize UltraAcquire to catch small, dynamic changes within a complex signal.

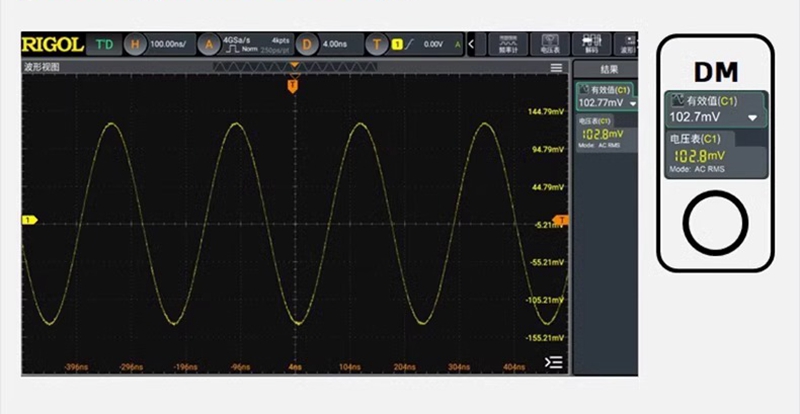

DHO is not only a high-resolution oscilloscope, but also a 3-digit voltmeter with 1M FFT function and protocol analysis (standard RS232/UART/12C/SPI/CAN).

Fully compliant with SCPI standards: Supports both LAN/USB programming modes, with instruction sets fully compliant with SCPI standards and compatible with the instruction sets of mainstream oscilloscopes on the market, helping you seamlessly switch.

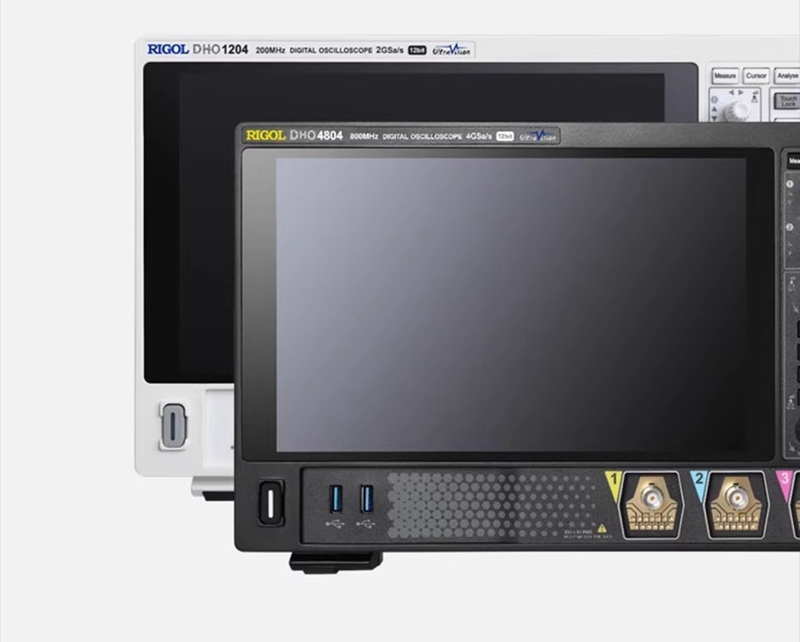

10.1 inches, large field of view, 1280 x 800, high-definition touch screen, providing you with sufficient observation field of view.

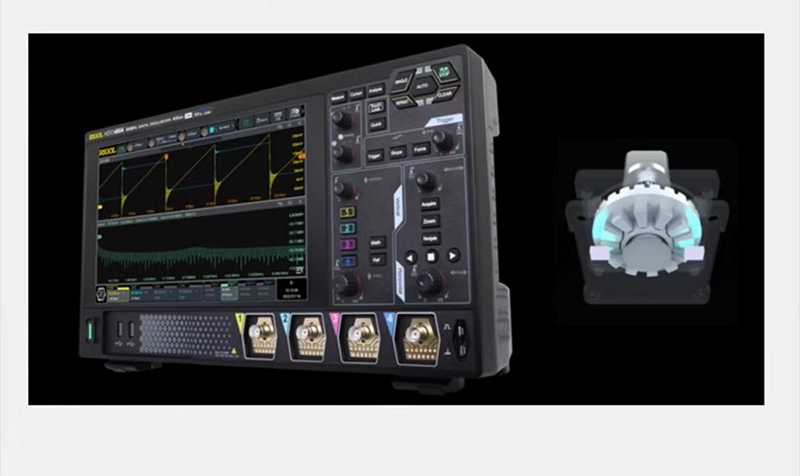

The photoelectric encoder has a long button lifespan. Compared with traditional mechanical encoders, the photoelectric encoder effectively reduces wear on the mechanical structure and improves the lifespan of the knob through photoelectric conversion.

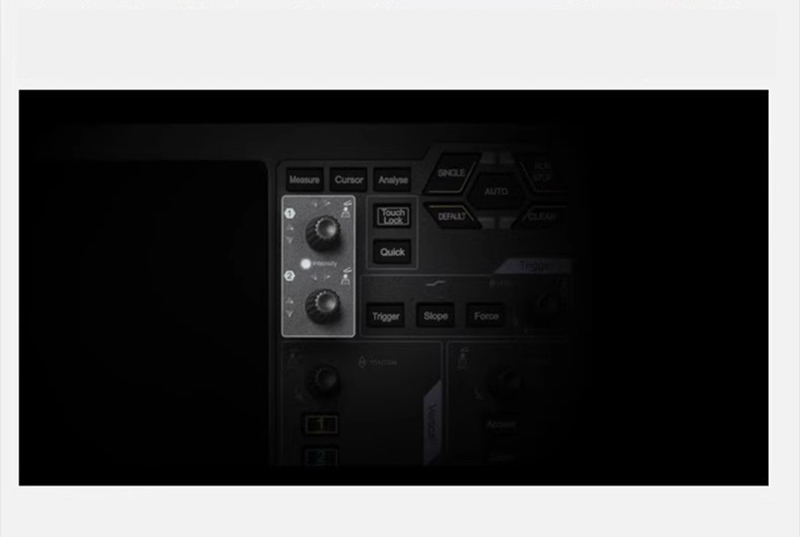

Dual multifunctional knob, more flexible to use: Flex knob, efficient interaction. In cursor measurement mode, the presence of dual knobs allows for separate control of the x cursor and y cursor, making cursor usage more convenient.

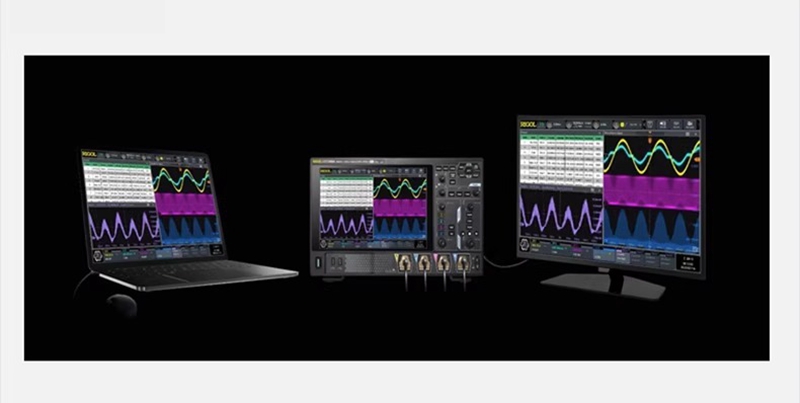

Equipped with HDMI-compatible interface, supporting Web control for web pages; To meet your diverse usage needs, whether you need a large screen demonstration or remote network control of an oscilloscope (also compatible with sigma and scope upper computer control), the DHO series can easily handle it.

Package Included:
- 1 x Digital Oscilloscope
