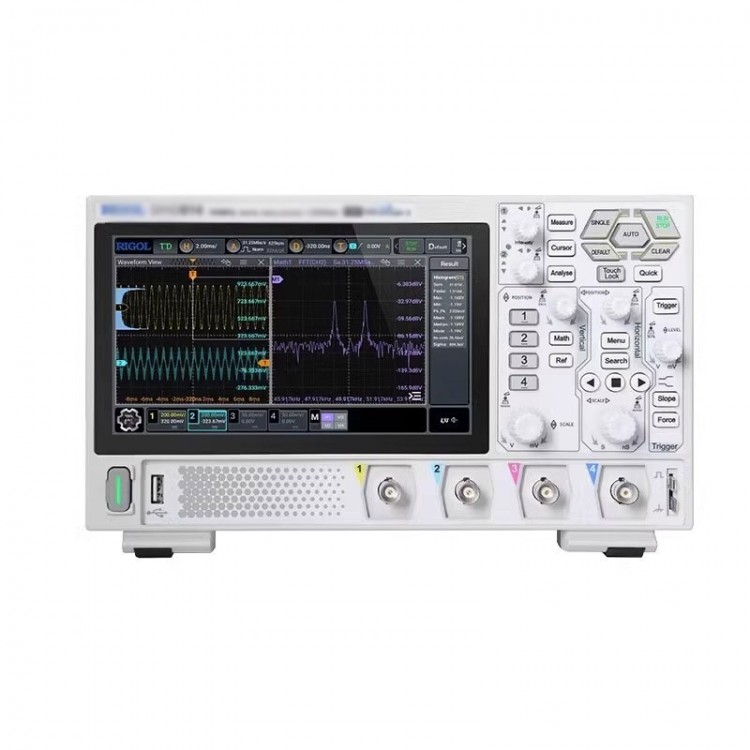

RIGOL DHO802 70MHz 2-Channel 12Bit Portable High Resolution Digital Oscilloscope 7-inch Touch Screen with 2PCS 150MHz Probes

RIGOL DHO802 70MHz 2-Channel 12Bit Portable High Resolution Digital Oscilloscope 7-inch Touch Screen with 2PCS 150MHz Probes

Description:
- The DHO800 series is high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a acquisition rate up to 1,000,000wfms/s (in Ultra Acquire Mode), 25Mpts memory depth, 12 bits resolution, and low noise.
- The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.

Features:
- Ultra-low noise floor, purer signal, never miss the small signals.
- Up to 12 bits resolution for all the models of this series.
- Max. analog bandwidth of 100MHz, 4 analog channels, external trigger output(std.) available for the dual-channel model.
- Max. real-time sample rate of 1.25GSa/s.
- Max. memory depth of 25Mpts.
- Vertical sensitivity range: 500μV/div to 10V/div.
- Max. acquisition rate of 1000000wfms/s (in Ultra Acquire mode).
- Digital phosphor display with real-time 256-level intensity grading.
- Waveform search and navigation function allows you to debug the signal anomalies faster.
- 7" (1024 x 600) capacitive multi-touch screen.
- Brand new for Flex Knob brings user-friendly experience.
- USB Device & Host, LAN, and HDMI-compatible interfaces (std.) for all the models of this series.
- Novel and delicate industrial design, easy to operate.
- Unique online upgrade.

Highlights:
- 12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.
- Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.
- Sleek Design: The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.
- 7-inch high-definition touchscreen for more convenient human-machine interaction.
- The DHO800 series comes standard with USB, LAN, and HDMI-compatible output interfaces, supporting remote control and conference presentations, making collaboration more convenient.

Specification:
- Bandwidth: 70MHz for DHO802/DHO804; 100MHz for DHO812/DHO814
- Analog channels: 2 for DHO802/DHO812; 4 for DHO804/DHO814
- External trigger: available for DHO802/DHO812
- Storage depth upper limit: 25Mpts (sharing)
- Sampling rate upper limit: 1.25GSa/s (sharing)
- Waveform acquisition rate upper limit: 30000wfms/s; 1000000wfms/s (condensation mode)
- Vertical resolution: 12bit
- Lowest vertical gear: 500uV/div
- Lowest horizontal gear: 2ns/div
- Frequency meter: 3 - 6bit
- Accumulator: 48-bit
- FFT: support
- Digital voltmeter: 3-bit
- Serial decoding: parallel, RS232, I2C, SPI
- Screen: 7-inch touch screen, 1024 x 600
- Communication interface: USB, LAN, HDMI-compatible
- Product size: 265.35 x 161.75 x 77.38mm
- Net wight: 1.78kg
- Power supply method: main power supply / mobile power supply
- Power supply voltage: DC12V, 3A
- Power: ≤36W

Package Included:
- 1 x Oscilloscope
- 2 x 150MHz Probe (1.2m long)
- 1 x Power Cable (1.5m long)
- 1 x Data Cable (1.5m long)
- 1 x Grounding Wire (1m long)
