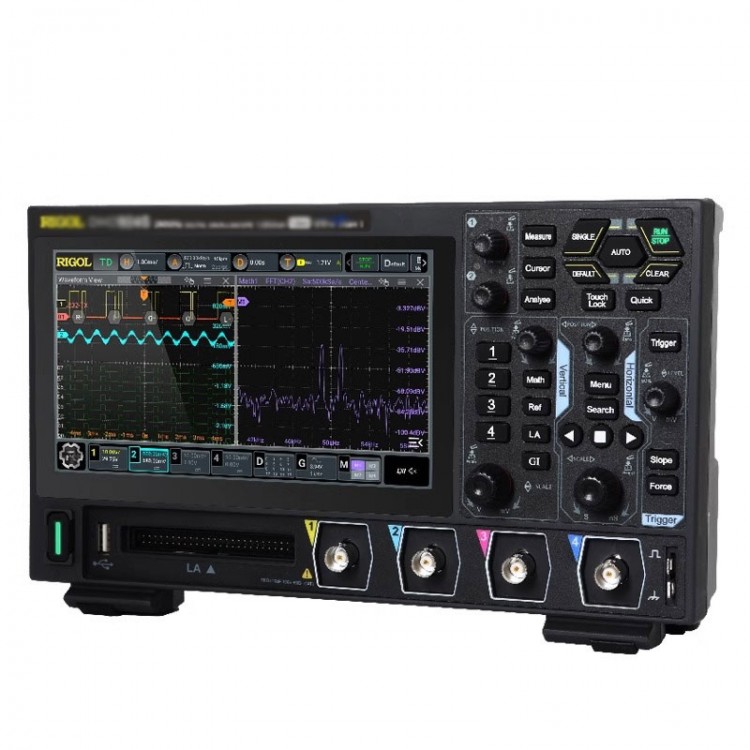

RIGOL DHO914S 125MHz 4-Channel 12Bit 1.25GSa/s Portable Digital Oscilloscope Support Bode Plot Loop Analysis

RIGOL DHO914S 125MHz 4-Channel 12Bit 1.25GSa/s Portable Digital Oscilloscope Support Bode Plot Loop Analysis

Description:
- The DHO900 series is a high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a acquisition rate up to 1,000,000wfms/s (in UltraAcquire Mode), 50Mpts memory depth, 12 bits resolution, and low noise.The DHO900 series supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

Features:
- Ultra-low noise floor, purer signal, never miss the small signals
- Up to 12 bits resolution for all the models of this series
- Max. analog bandwidth of 250MHz, 4 analog channels
- 16 digital channels (std.), logic probe (not included) required to be purchased if needed
- Max. real-time sample rate of 1.25GSa/s
- Max. memory depth of 50Mpts
- Vertical sensitivity range: 200μV/div to 10V/div
- Max. capture rate of 1,000,000wfms/s (in UltraAcquire mode)
- Digital phosphor display with real-time 256-level intensity grading
- Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc
- Waveform search and navigation function allows you to debug the signal anomalies faster
- 7" (1024x600) capacitive multi-touch screen
- Brand new Flex Knob brings user-friendly experience
- USB Device & Host, LAN, and HDMI-compatible interfaces (std.) for all the models of this series
- Novel and delicate industrial design, easy to operate
- Unique online upgrade

12-bit vertical resolution:
- 12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.

Support Type-C Power:
- Designed with a Type-C power interface, the DHO900 can be powered by just a portable power source, enabling on-site testing.

Sleek Design:
- The DHO900 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.

Supports Bode Plot Analysis:
- The DHO900S series comes standard with Bode plot loop analysis function, effectively addressing switching power loop response analysis.

Standard Digital Channels:
- The entire DHO900 series comes equipped with digital channels as standard, allowing digital signal analysis when paired with the PLA2216 logic analysis probe.

Package Included:
- 1 x Digital Oscilloscope
- 4 x Probes (1.2m)
- 1 x Power Cable (1.5m)
- 1 x Data Cable (1.5m)
- 1 x GND Wire (1m)
