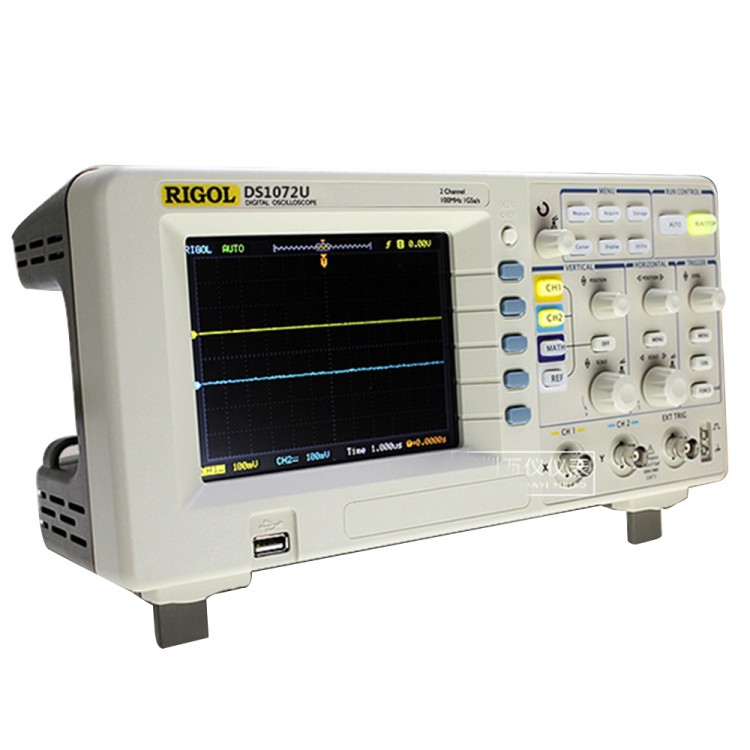

Rigol DS1072U 5.6-inch TFT LCD Digital Storage Oscilloscope 70MHz Dual CH 2 Channels 500MSa/s OSC

Rigol DS1072U 5.6-inch TFT LCD Digital Storage Oscilloscope 70MHz Dual CH 2 Channels 500MSa/s OSC

Product overview
- DS1000U series is a kind of economical digital oscilloscope with high-performance.
- The front panel of DS1000U series comes with clear visual design, conforming to the usage of traditional instruments, which is convenient for the users.

Application
- Electronic circuit test
- Circuit function test
- Logical relation between signals verification
- Circuit of mixed signal test
- Education and training
- Easy to use design
- Built-in help menu enables information getting more convenient
- Multiple Language User Interface, support English and Chinese input
- Support U disk and local files storage
- Waveform intensity of analog channel can be adjusted
- To display a waveform automatically by (AUTO)
- Pop-up menu makes it easy to operate

Main Features
1. 500MSa/s real-time sample rate and 10GSa/s equivalent sample rate
2. 5.6 inch and 64k TFT LCD make waveform display more clear and vivid
3. Abundant trigger types: Edge, Pulse Width, Video, Slope and Alternate
4. Unique adjustable trigger sensitivity enables to meet different demands
5. Enable to measure 22 types of waveform parameters and track measurements via cursor automatically
6. Unique waveform record and replay
7. Fined delayed scan function
8. Built-in FFT function, hold practical digital filters
9. Pass/Fail detection function enables to output testing results
10. Math operation available to multiple waveforms
11. Powerful PC application software UltraScope
12. Standard configuration interface: USB device, USB Host, R232 and support U disk storage and PictBridge print standards
13. Unique "Key Lock” function meets the needs of industrial production
14. Support remote command control

Package List:
- 1 x Oscilloscope
- 1 x Power cable
- 1 x CD
- 2 x Probe
- 1 x Manual
