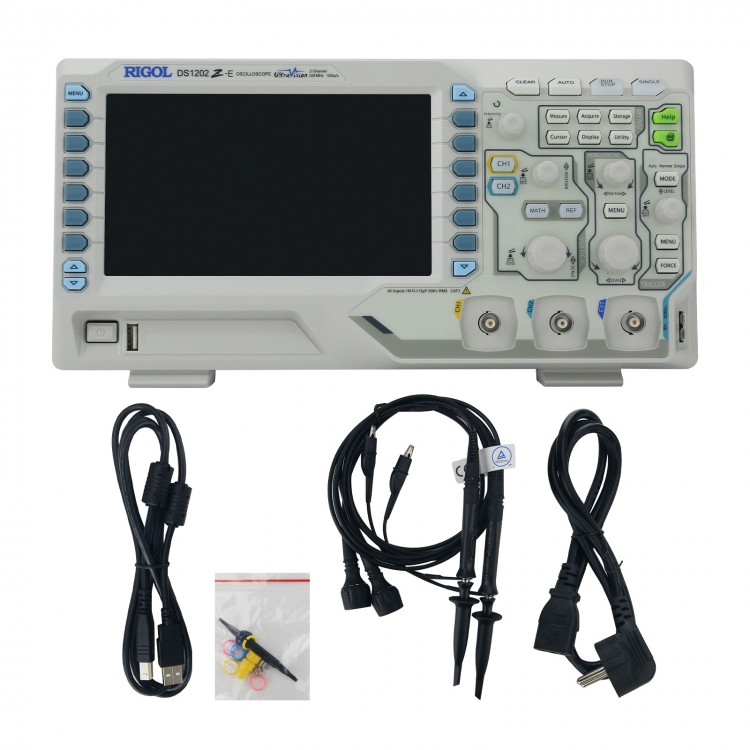

RIGOL DS1202Z-E 200MHz Bandwidth Dual Channel Digital Oscilloscope Support Multiple Languages
Description:
- The DS1000Z-E series is a multifunctional and high-performance digital oscilloscope based on RIGOL's original technology for UltraVision.
- The triggering function of communication, aerospace, national defense, embedded systems, computers, research and education, and many other industries.
- A rare debugging instrument in the field. Among them, the mixed signal digital technology launched for the field of embedded design and testing has extremely high storage depth, ultra wide dynamic range, good display effect, excellent waveform acquisition rate, and comprehensiveness.
- The oscilloscope allows users to measure both analog and digital signals simultaneously.
Features:
- Simulated channel real-time sampling rate of 1GSa/s, standard with 24Mpts storage depth
- 2 analog channels, analog channel bandwidth of 200MHz, 100MHz
- Waveform acquisition rate of 30000wfms/s (point display)
- Real time hardware waveform recording and playback function, capable of recording up to 60000 frames
- Multi level grayscale display
- Low background noise, ultra wide vertical dynamic range from 1mV/div to 10V/div
- 7-inch WVGA (800 x 480) TFT widescreen, realistic colors, low power consumption, and long lifespan
- Waveform brightness adjustable
- Waveform display can be automatically set (AUTO)
- Up to 15 triggering functions, including multiple protocol triggers
- Standard parallel decoding and multiple serial decoding
- 37 waveform parameters automatic measurement (with statistical function)
- Fine tuned delay scanning function
- Embedded FFT function
- Multiple waveform mathematical operation functions
- Pass/fail detection function
- Standard interfaces: USB Device, USB Host, LAN, Aux
- Compliant with LXI CORE 2011 DIVICE instrument standards, able to quickly, economically, and efficiently create and reconfigure
- Set up testing system
- Support remote command control
- Embedded help for easy information acquisition
- Supports multiple languages with Chinese and English input
- Innovative and exquisite industrial design, convenient operation
Package Included:
- 1 x Set of Digital Oscilloscope
