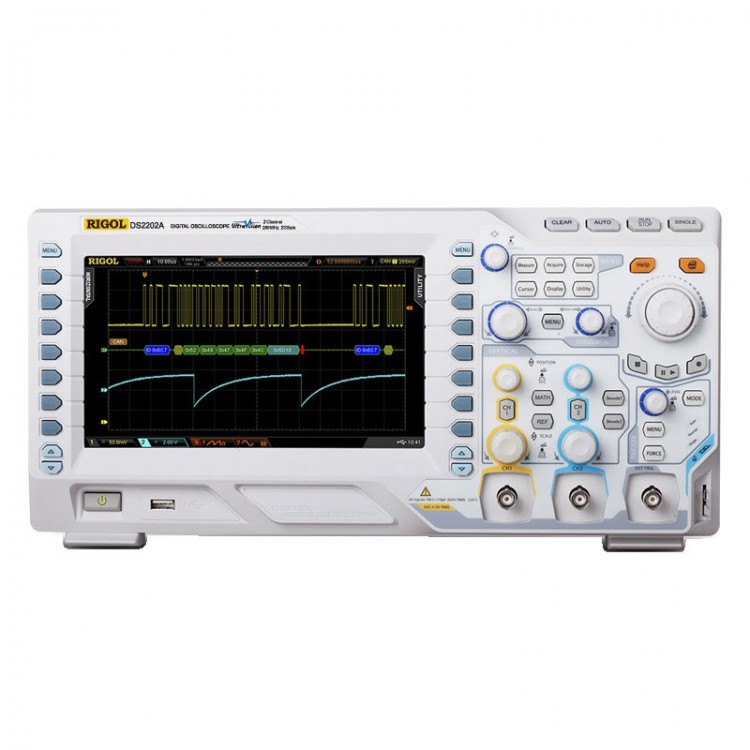

RIGOL DS2202A 200MHz 2-Channel Digital Oscilloscope 2GSa/s Sampling Built-in Signal Source

RIGOL DS2202A 200MHz 2-Channel Digital Oscilloscope 2GSa/s Sampling Built-in Signal Source

Description:
- The DS2000A series digital oscilloscope has a bandwidth ranging from 100MHz-300MHz, a sampling rate of up to 2GSa/s. The DS2000A series is easy to operate, fully functional, with a 256 level grayscale display that allows abnormal signals to be fully displayed. Its user-friendly UI design makes it a powerful tool for addressing application challenges such as circuit design, embedded debugging, and power supply design.

Features:
- 500μV/DIV sensitivity, acquisite weaker signals; 56M storage depth, maintaining high sampling rate for a longer period of time.
- DS2000A series independently developed UltraVision technology.
- The unique sensitivity range of 500μV/div, with extremely low background noise, suitable for testing weak signals from biological, medical, and various sensors.
- With a waveform acquisition rate of up to 52000 times per second, occasional problems can be detected in a timely manner, reducing circuit debugging time.
- The maximum storage depth can reach 56M, allowing users to comprehensively consider both the global and detailed waveform, maintain the highest sampling rate for a longer period of time, and not miss any waveform changes.
- The real-time recording function implemented by hardware can record up to 65000 frames of waveforms. The dedicated data analysis navigation knob allows for quick viewing of recorded content, convenient playback, analysis, and comparison of waveforms, and identification of faults.

Specification:
- Analog bandwidth: 200MHz
- Analog channel: 2
- Maximum sampling rate: 2GSa/s (single channel), 1GSa/s (per channel)
- Storage depth: 7Mbps (dual channel), 14Mbps (single channel)
- Waveform acquisition rate: 50000wfms/s
- Time base range: 2ns/div to 1000s/div
- Input impedance: (1Mohm±1%)||(16pF±3pF) or 50ohms±1.5%
- Vertical sensitivity: 500uV/div to 10V/div (1Mohm) or 500uV to 1V/div (50ohms)
- DC precision: ±2% of full scale
- Waveform record and analysis: up to 65000 frames
- Trigger function: edge, pulse width, underestimation, slope, video, code pattern, establish/maintain, RS232/UART, I2C, SPI
- Waveform calculation: A+B, A-B, AxB, A/B, FFT, digital filtering, editable advanced operation, logic operation
- Automatic measurement: 29 kinds of automatic measurement analog channels
- Interface: USB Host, USB Device, LAN (LXI), AUX
- Screen: 8-inch WVGA LCD screen, 800 x 480 pixel, 256 level grayscale display

Package Included:
- 1 x Digital Oscilloscope
