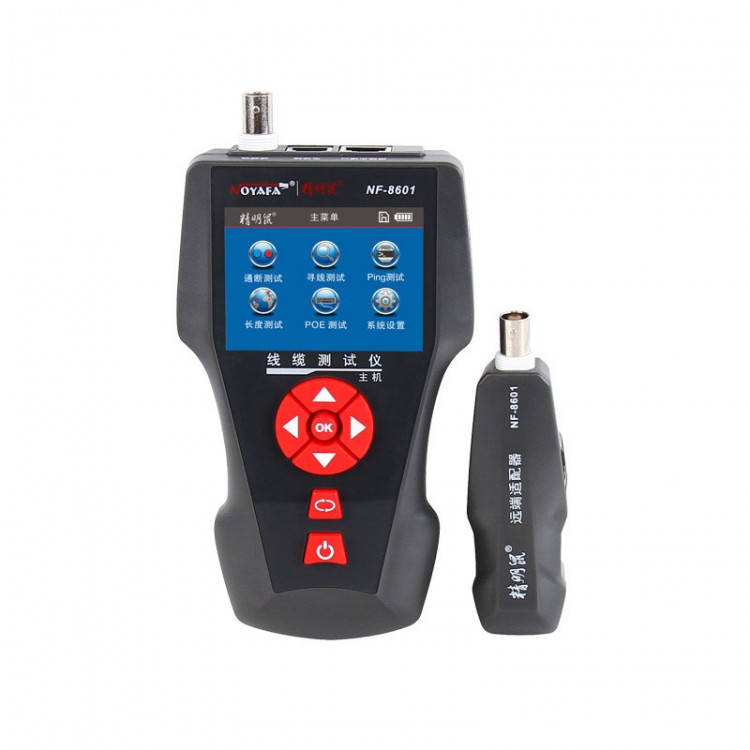

RisePro Network Phone Wire Tracker Cable Tester RJ45 RJ11 BNC POE PING NF-8601

RisePro Network Phone Wire Tracker Cable Tester RJ45 RJ11 BNC POE PING NF-8601

Specification:
NF-8601 Transmitter
- Indictor: LCD 320x240 mm, with backlight
- Cable test type: STP/UTP 5E,6E network , telephone , coaxial cable.
- Max. distance of wiremap: 2000 m
- Max. distance of tracing: 2000m
- Max. distance of cable length: 1000 m
- Min. distance of calibration: 10 m
- Accuracy: 3% ( after calibration )
- Compatible connectors:  RJ11，RJ45,Coaxial, PING/POE,BNC
- Cable map indication: LCD (#1-#8)
- Battery Type: 3.7V lithium battery 1800mAh
- Work temperature / humidity: 10℃ ~ -60℃ / 0℃~70℃
- Dimension(LxWxD): 173x92x34mm

NF-8601 Receiver
-  Cable hunting: RJ11，RJ45, BNC
-  Types of cable: ? 2 cores
- Battery Type: 3.7V lithium battery 1800mAh
- Dimension(LxWxD): 183x58x35 mm

NF-8601 Remote Unit
- Compatible connectors: RJ11，RJ45, BNC
-  Dimension(LxWxD): 106x32x30mm

Function
- PoE / PING testing.
- Trace targeted cable among lots of unknown cables ;
- Locate faults for RJ11/RJ45/BNC Cable;
- measure cable length accurately
- Voltage detecting function.
- Memory and storage function, export or upload the data from PC.
- Lithium battery and color screen

Application
- 3.7V lithium battery power supply(not included) ,Convenient and durable.
- 2.8 inches LCD Color screen ,Clear, intuitive and personalization.
- can save and export 160 groups of data to computer (txt. format).

Package Included:
- 1 x NF-8601 Network Phone Wire Tracker Cable Tester
- 2 x Bulit-in battery
- 1 x Adapted telephone line
- 1 x Adapted network cable
- 1 x Cable clips
- 1 x Toolkit
