Robocat 270mm Carbon Fiber Racing Mini Quadcopter Frame with Emax 2204 Motor & 12A ESC & CC3D Flight Control

Robocat 270mm Carbon Fiber Racing Mini Quadcopter Frame with Emax 2204 Motor & 12A ESC & CC3D Flight Control

Description:
- Robocat was designed with aerodynamics in mind.
- The carbon fiber allows us to create a sturdy but lightweight structure .
- For the Canopy we took into account the ease of maintenance. The design incorpo-rates a hinge feature allowing for easy access to the electronic inside.
- An eye-catching form paired with a streamlined canopy, high speeds are achievable due to the low drag. The Canopy comes in different colors suitable for various situations . The Canopy is made from shock-absorbing PC material.
- Color: Yellow

Specification:


CC3D Flight Controller Description:
- CC3D openpilot opensource flight control is suitable fro MINI 200/250/300 multicopter
- With damper two sides sticks, and three connecting cables
- Shell size: 40mm*40mm*14mm
- Board size: :36mm*36mm
- Board net weight: 7.3g
- Total weight: 15.2g

MT2204 2300KV Brushless Motor:
Specification:
- KV: 2300
- Max Trust: 440g
- No. of cell: 2-3S
- Framework: 12N14P
- Propeller: 5" - 6"
- Length: 32.2mm
- Shaft: 3mm
- Diameter: 27.9mm
- Weight: 25g

Emax Brushless ESC:
- Based on Simonk programme
- Low voltage protection, over current protection, power on self detection function
- Supportmax rotate speed: 210,000r（2 magnetic poles), 70,000r(6 magnetic pole), 35000r(12 magnetic poles)
- MCJ and BEC adopts different stabilizer, improve anti interference ability
- ESC multiparameters can be set through RC
- Throttle range can be set, to compatible with different receiver, has very good low speed performance
- Built in linear BEC or switch BEC

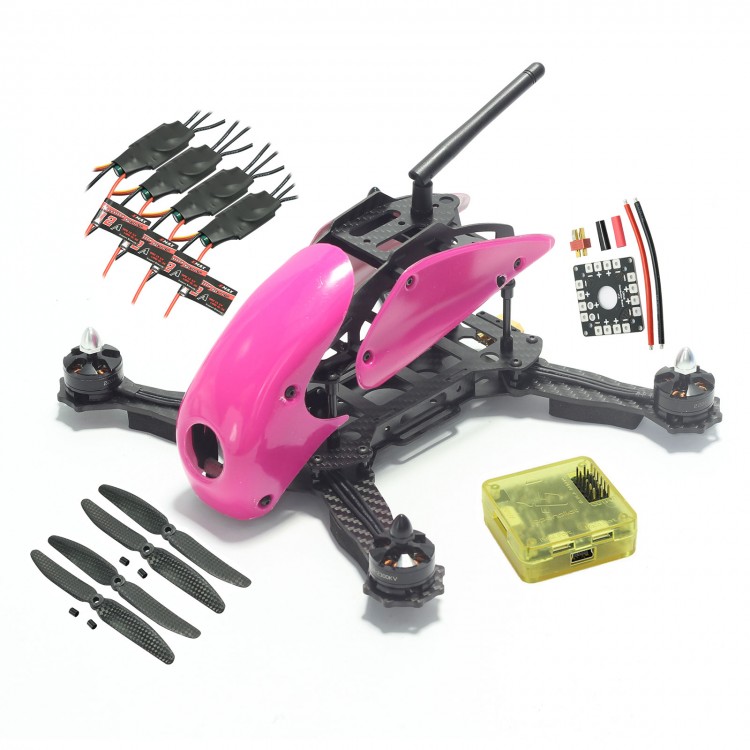

Package Include:
- 1 x Robocat 270mm Carbon Fiber Racing Mini Quadcopter Frame Kit
- 1 x CC3D Flight Control
- 4 x Emax MT2204 Motor
- 4 x Emax 12A ESC
- 2Pairs x 5*3 5030 Carbon Fiber Propeller  (2pcs CW + 2 PCS CCW)
- 1 x BEC ESC Power Distribution Board
