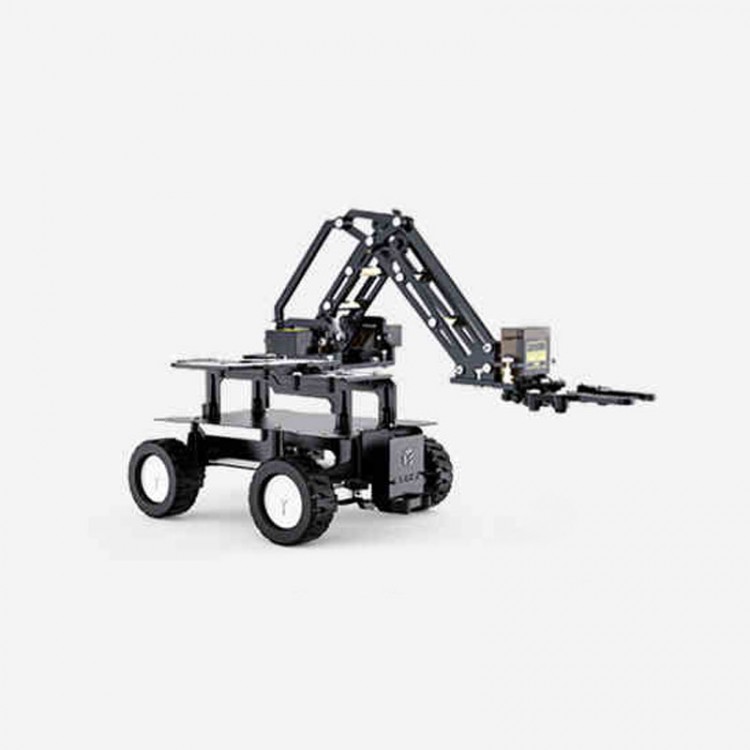

Robot Car Parts w/ Motors & 3DOF Robot Arm for 2-Mode Smart Cars (Differential + Ackerman Modes)

SKU: 93437
0(0 Reviews)
Write a review(Get Thanksbuyer Points!)

Availability: In stock, usually dispatched in 1 business day

Price:$47.81
Price in reward points: 478 Reward Points: 5

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$46.85	$45.90	$44.46	$42.55	Contact US

Buy it now Add cart

You might like

Robot Car Parts w/ Motors & 3DOF Robot Arm for 3-Mode Smart Cars (Differential + Ackerman + Mecanum) $52.08
3-Mode Line Follower Car (Differential + Ackerman + Mecanum) + Robot Arm + STM32F103C8T6 + Controller $92.70
3-Mode Line Follower Car (Differential + Ackerman + Mecanum) + Robot Arm + STM32F103C8T6 Core Board $84.15

Product details
Reviews (0)

Robot Car Parts w/ Motors & 3DOF Robot Arm for 2-Mode Smart Cars (Differential + Ackerman Modes)

Description:

The structural parts can be used for smart cars with 4-wheel differential and Ackerman modes. The smart car parts feature all-metal gears, long motor life and good quality. Motors come with motor wire and no need to weld.

Motor Parameters:

* Motor model: N20 DC gear motor

* Rated voltage: 6V

* Rated speed: 400r/min

* Rated current: 70ma

Servo Parameters:

* Servo model: SG90

* Servo torque: 1.5kg/cm

* Servo running speed: 0.3s/60°

* Servo line sequence: dark gray for GND; red for VCC; orange for pulse input

Robotic Arm Parameters:

* Degrees of freedom: 3DOF

* Material: Black acrylic

* Maximum extension length: 69-190mm

* Maximum height extension: 62-88mm

* Maximum claw opening: 30mm

Package Included:

* 1 x Black acrylic base plate

* 1 x ABS car frame

* 4 x Rubber wheels

* 4 x N20 metal motors

* 1 x SG90 servo

* 1 x Set of black acrylic frame for robotic arm

* 3 x SG90 servos for robotic arm

Packaging Details:

* Weight: 1kg

Note:

* Assembling is needed.
