Robot Suction Cup Vacuum Pump Kit For 25T Servos MG996 MG995 DS3218 (with Electronic Switch)
Features:
- Robot suction cup vacuum pump kit with electronic switch.
- Compatible with 25T servos, including KS3518, KS3620, MG995, MG996 and DS3218.
- Vacuum pump perfect for DC 3V-5V. With carbon brush commutator, its motor works excellently.
Air Pump Parameters:
- Rated Voltage: DC 4.5V
- No-Load Current: 0.35A
- Compatible Voltage: DC 3V-5V
- Pressure Range: 400-650mmhg
- Max. Vacuum Degree: -350mmhg
- Weight: 60g
Electronic Valve:
- Rated Voltage: DC 6V
- Current: 220mA
- Compatible Voltage: DC 5V-6V
- Power: <2W
- Pressure Range: 0-350mmhg
- Usable Fluid: Air
- Cable Length: 15cm
- Weight: 16g

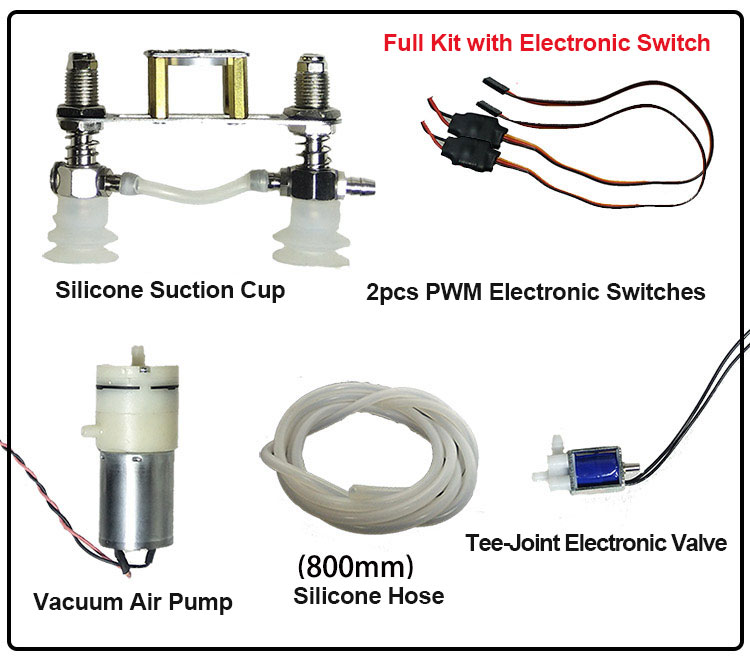

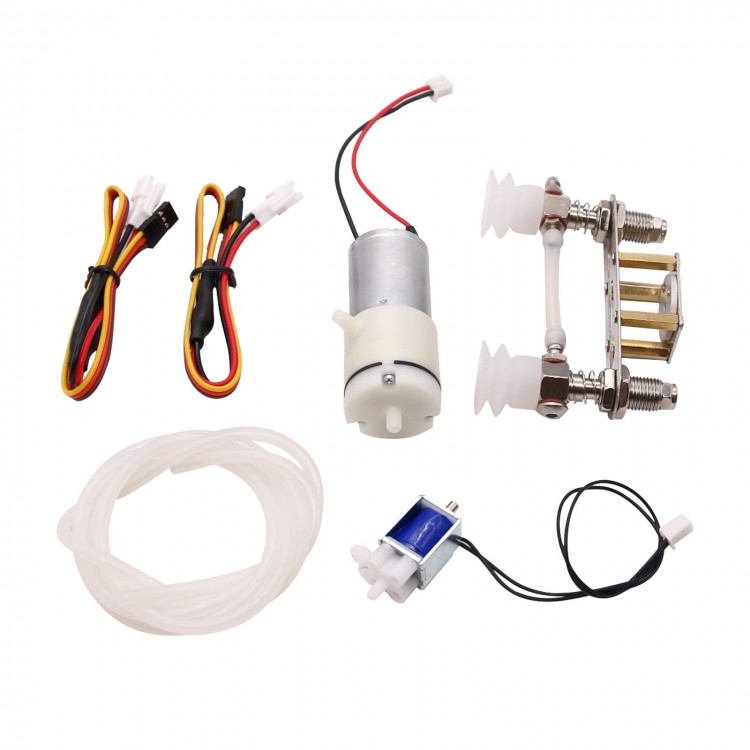

Package Included:
- 1 x Set of Silicone Suction Cup
- 2 x PWM Electronic Switches
- 1 x Vacuum Pump
- 1 x 800mm Silicone Hose
- 1 x Tee-Joint Electronic Valve
Note: Other items in the pictures are not included.
Product Parameters:
- Voltage Range: 3.5-7.4V
- Peak Current: 2A
- Working Current: 1A
- Over-Temperature Protection: Automatically cut off power supply and stop working

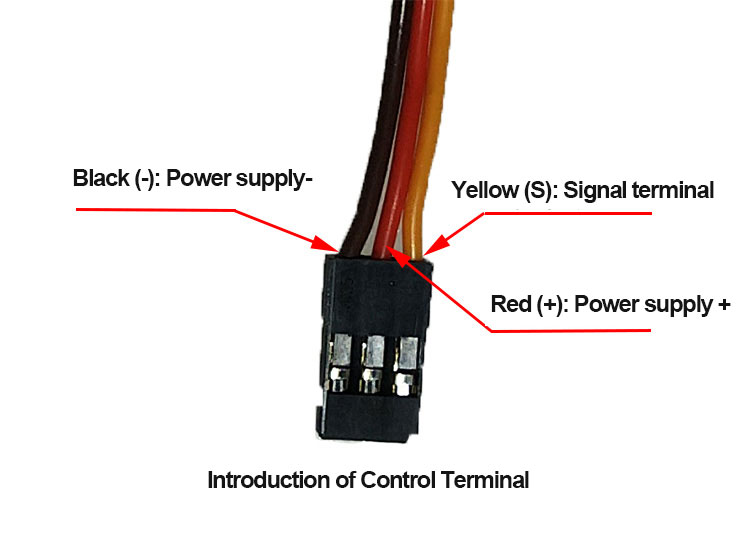

Introduction of Control:
- Control Method: By changing pulse width
- Starting: Pulse 2500usec
- Stop Working: 500usec
