Robot Tank Car Open Source 6DOF Mechanical Arm Tracking Gripping Support PS2 Controller/APP Control

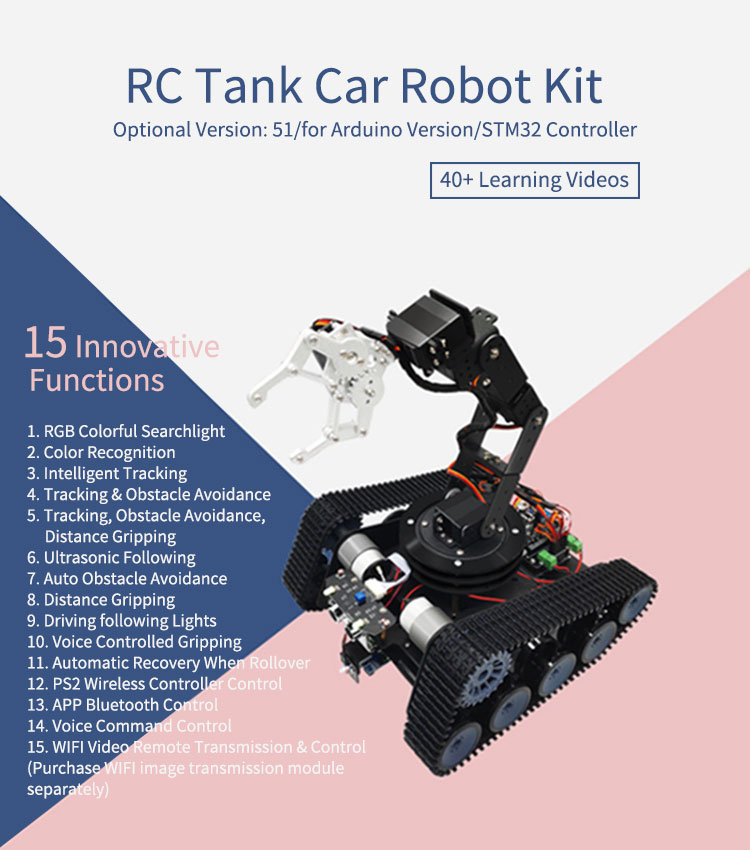

Features:
- Powerful Functions:
1. RGB Colorful Searchlight
2. Color Recognition
3. Intelligent Tracking
4. Tracking & Obstacle Avoidance
5. Tracking, Obstacle Avoidance, Distance Gripping
6. Ultrasonic Following
7. Auto Obstacle Avoidance
8. Distance Gripping
9. Driving following Lights
10. Voice Controlled Gripping
11. Automatic Recovery When Rollover
12. PS2 Wireless Controller Control

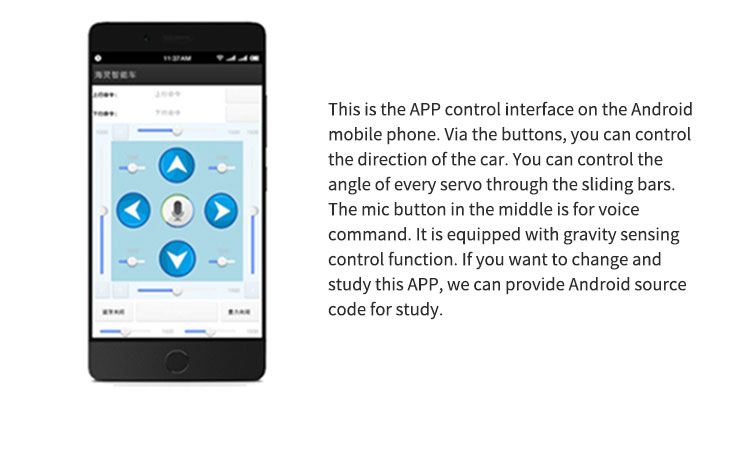

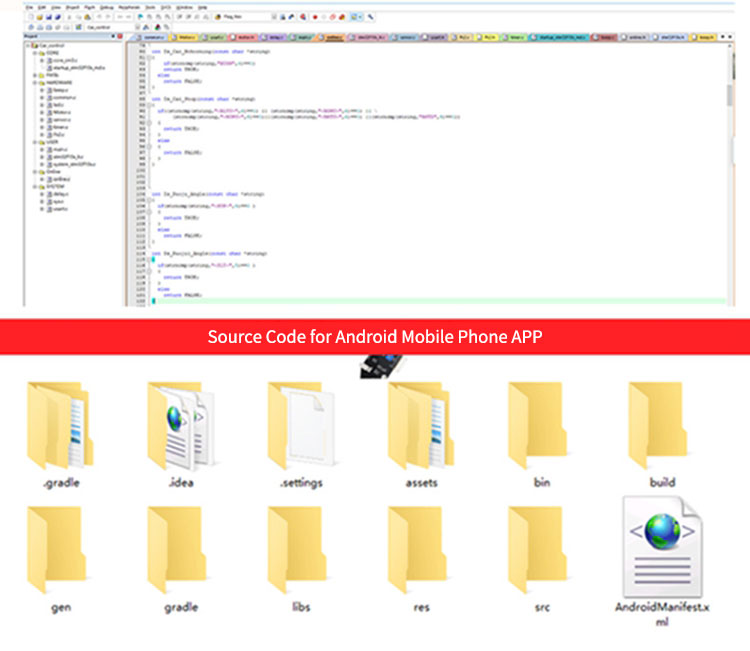

13. APP Bluetooth Control
14. Voice Command Control
15. WIFI Video Remote Transmission & Control (Purchase WIFI image transmission module separately)
- This item is already assembled!!!!

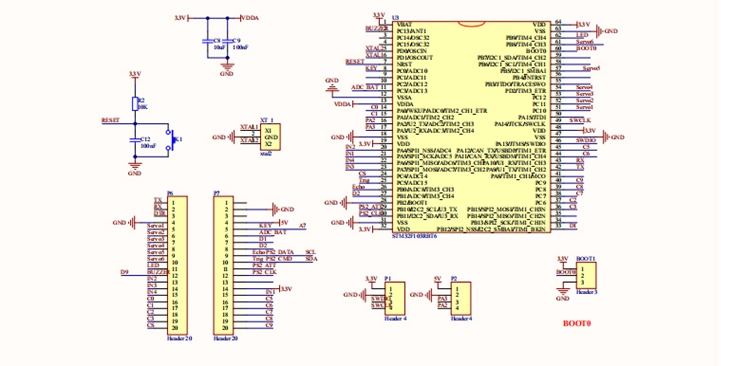

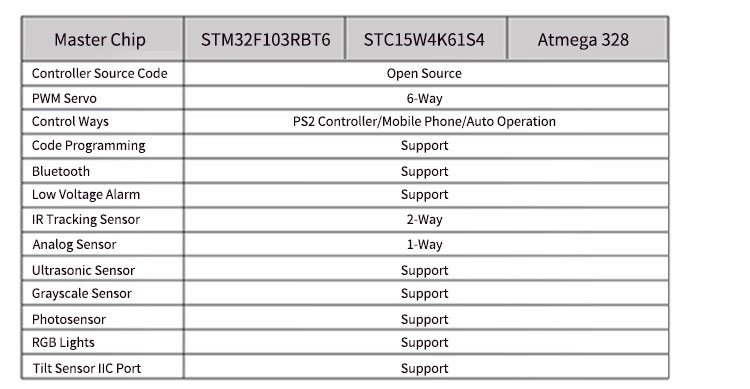

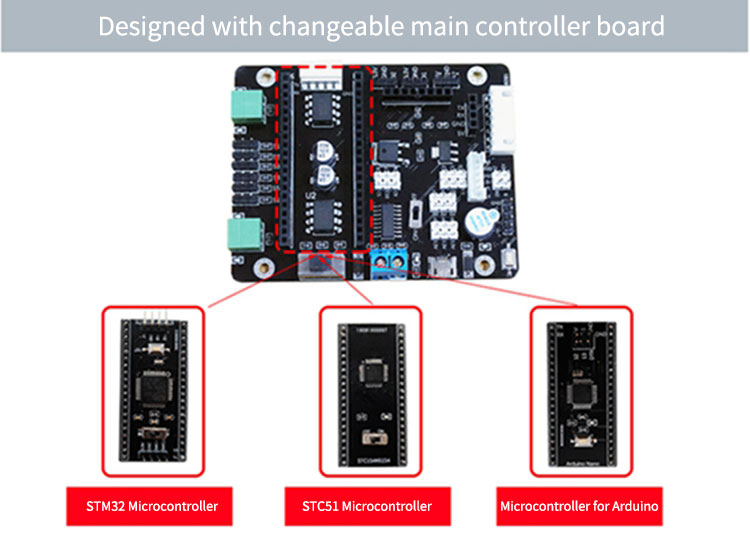

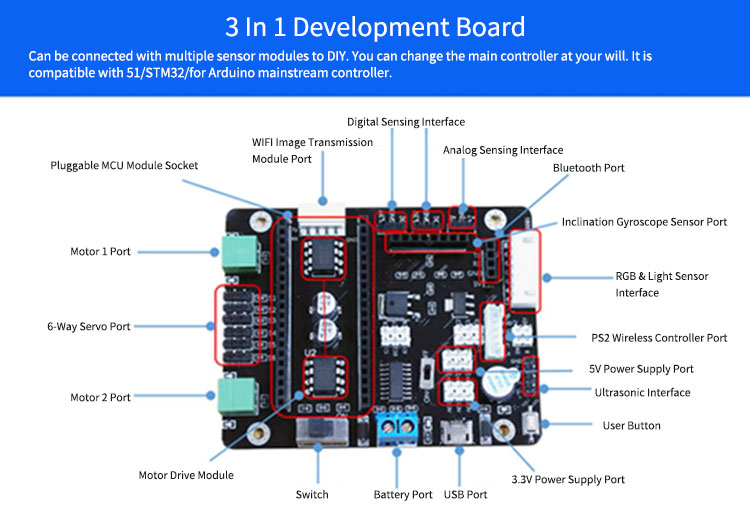

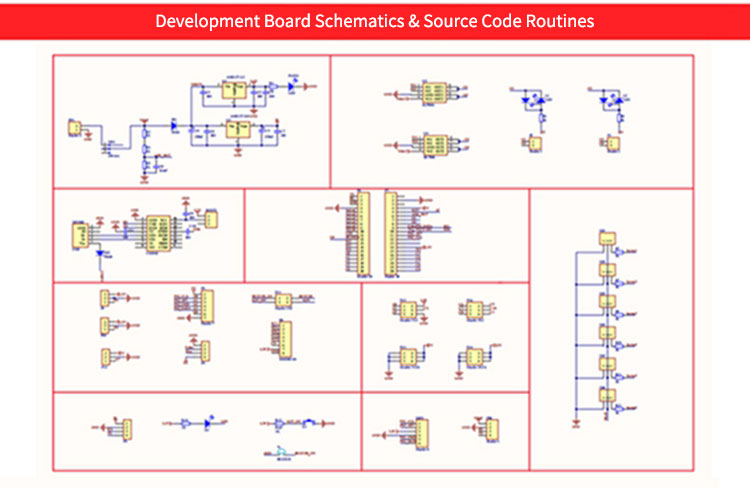

- Optional Open Source Controller Board: 51/for Arduino Version/STM32

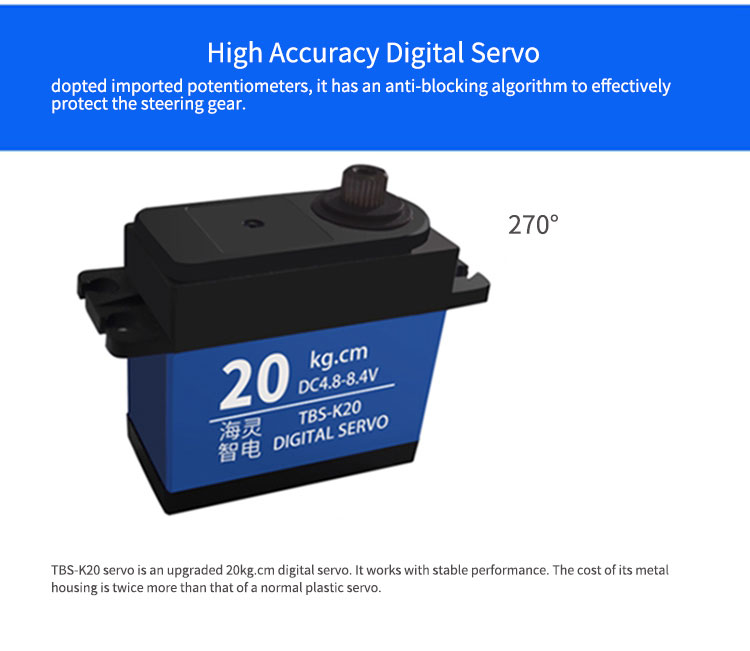

- Adopt digital servos, metal gears, and imported potentiometers. At the same time, it has an anti-blocking algorithm to effectively protect the steering gear.

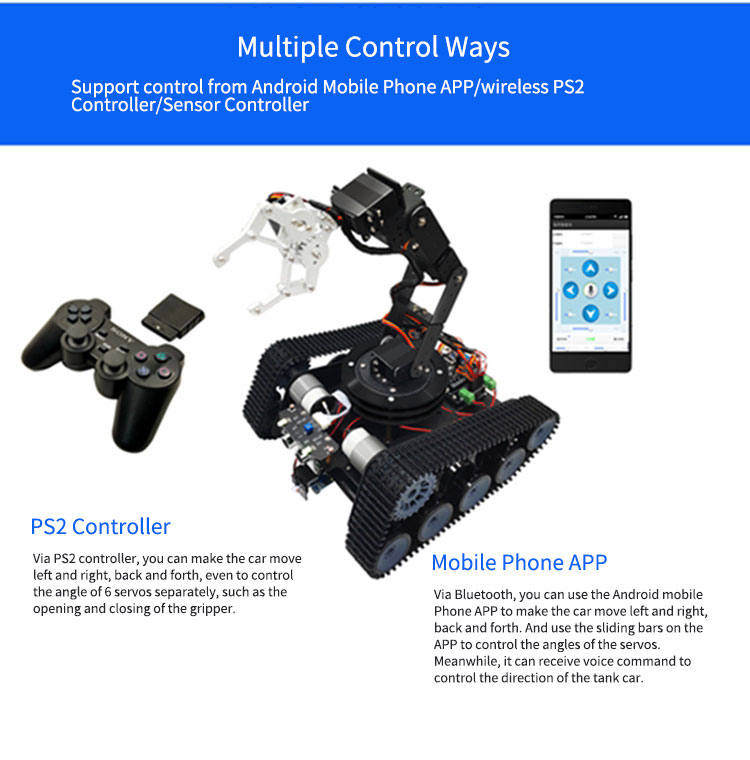

- Support control from PS2 wireless controller & Android mobile phone APP
- 6DOF mechanical arm with every joint controlled separately

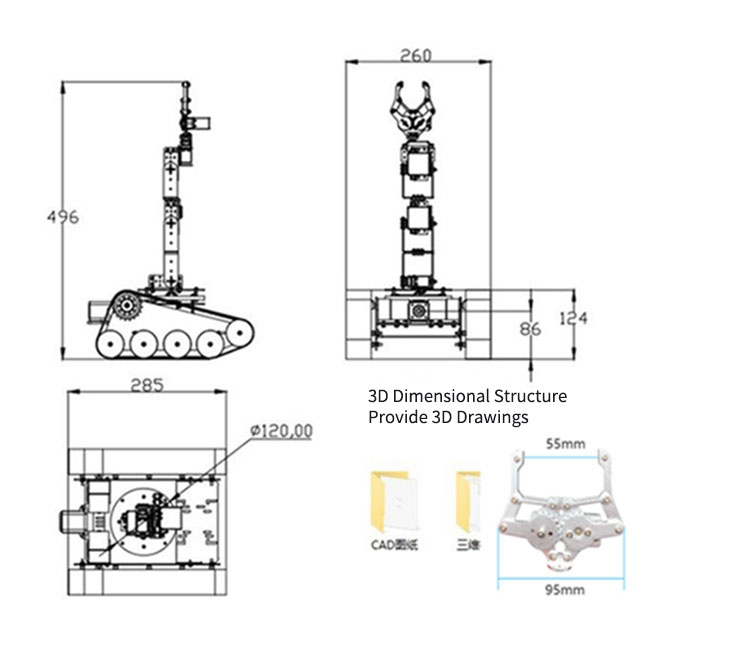

Overall Basic Parameters:
- Item Height: 496mm
- Item Length: 285mm
- Item Width: 260mm
- Weight: 2.6kg
- Normally Working Voltage: 6-12V
- Using Time after Fully Charging: 100 minutes
- Charging Time: 3-4 hours
Functional Parameters:
- Weight Capacity: 0.5 kg
- Speed Limit: 0.5m/s
- PS2 Controller Control: ≥10m
- Mobile Phone APP Control: ≥10m
- Gripper Weightlifting Capacity: 0.27 kg
- Climbing Ability: 25°
- Ultrasonic Detection Distance: 2cm-300cm (Accuracy 3mm)

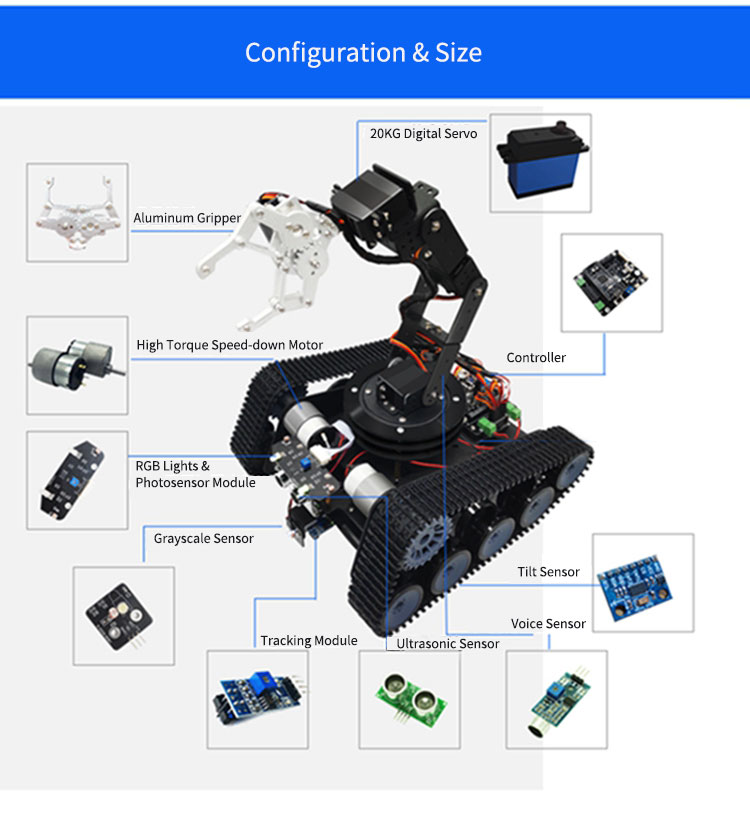

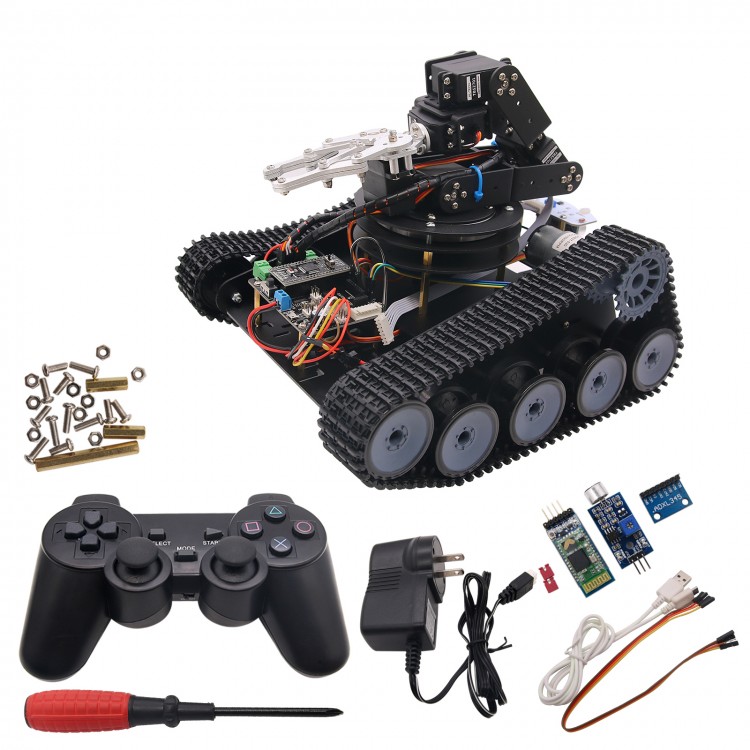

Package Included:
- 1 x Set of Metal Tank Car Body
- 1 x Set of 6DOF Mechanical Arm
- 1 x 51/for Arduino Version /STM32 Controller Board (Optional)
- 1 x USB Data Cable
- 1 x TBSN-K15 Heat-resistant Servo for Gripper
- 5 x TBS-K20 Digital Servos
- 2 x DC Speed-down Motors
- 1 x Charger
- 1 x PS2 Controller & Receiver Set
- 1 x Bluetooth Module
- 1 x Overall DIY Material
- 1 x Ultrasonic Sensor
- 2 x IR Tracking Sensors
- 1 x Grayscale Sensor
- 1 x RGB & Sourcing Integrated Module
- 1 x Voice Sensor
- 1 x Tilt Acceleration Gyroscope
Note:
- This item is already assembled!!!!
- Please leave a message about the controller board you want when purchasing. Thank you!
