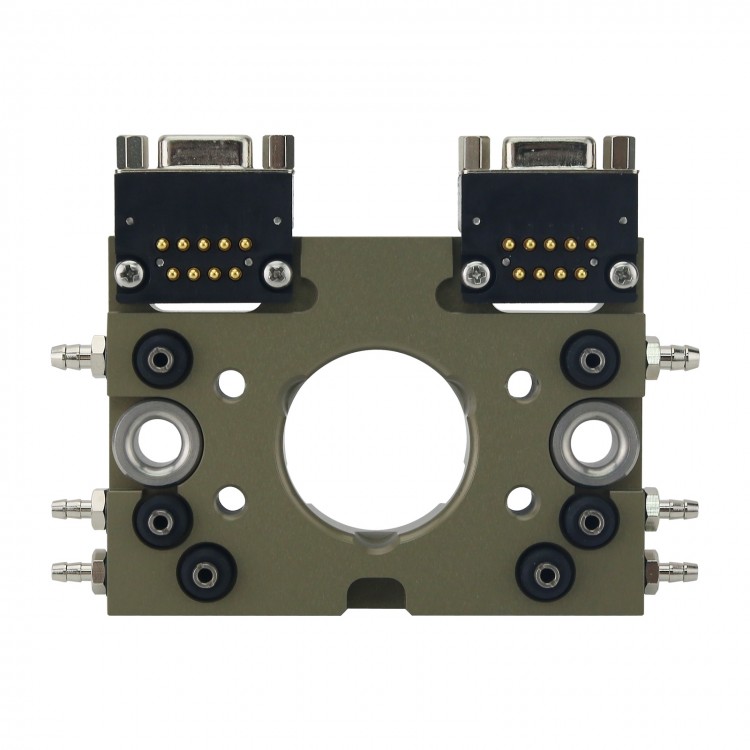

Robot Tool Changer 10KG Robotic Automatic Tool Changer ATC With Signal Module Ideal Replacement For Star EINS OX-SBI (Tool Side)

Robot Tool Changer 10KG Robotic Automatic Tool Changer ATC With Signal Module Ideal Replacement For Star EINS OX-SBI (Tool Side)

Description:
This product is made of 7 series aviation aluminum and processed by imported five-axis machining center. The product processing accuracy reaches 0.005mm. The surface treatment is hard oxide and the surface color is uniform, there being no scratches and no burrs. The product runs smoothly without any abnormal noise. In order to ensure the sealing and durability of the product, all parts of the product such as wear-resistant rings, sealing rings, and springs are imported. Each product has passed the holding pressure test, load test and running test before shipment. We randomly inspect each batch of products, and the durability test is two million times. During the test, the product boasts stable performance and high repeat positioning accuracy.

Each quick-change body side and fixture side produced in this shop can be matched with the body side and fixture side of any batch for EINS, and they all have passed load test and running test before shipment. The easiest way to judge whether the product can be exchanged correctly and used smoothly is to use a feeler gauge of 0.03mm or more after the body side and the fixture side are vented and locked. The smooth insertion gap is NO, and the non-insertion gap is OK.

Features:
- Quick to change fixtures
- Quality assurance
- Made of super hard aluminum alloy
- High speed grabbing

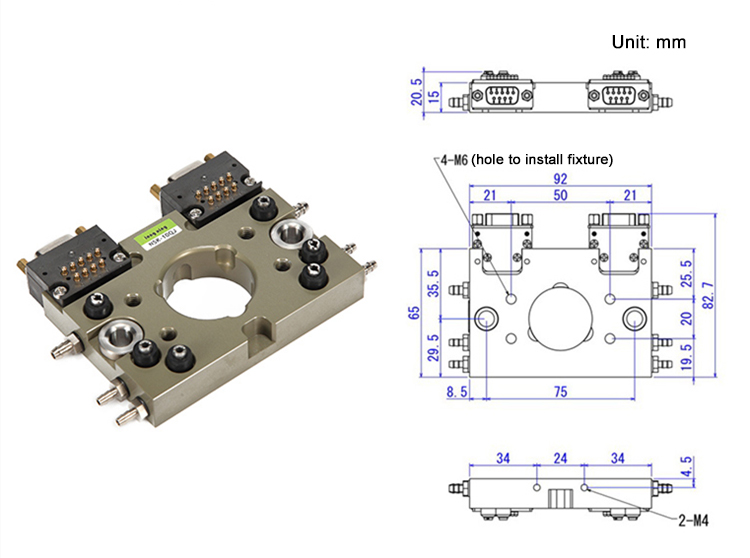

Specifications:
- Type: NSK-10QJ (with connector)
- Material: super hard aluminum alloy
- N.W.: 235g/0.5 LB
- Installation position: fixture's side
- Transportable weight: 0-10KG/0-22LB
- Thickness after installation: 40MM/1.6"
- Fast exchange fixture suitable for multi-joint robots

Package Included:
- 1 x Set of Robot Quick Changer
