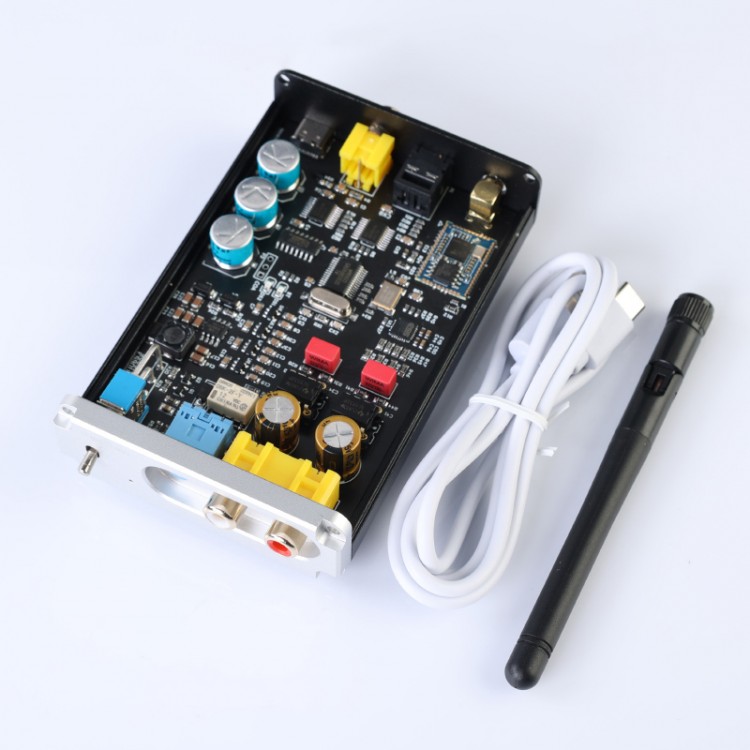

Rod Rain Audio Bluetooth 5.1 Receiver DAC Headphone Amp 9018-2 Silver (Dual 5532 Op Amp) for APTX-HD

Rod Rain Audio Bluetooth 5.1 Receiver DAC Headphone Amp 9018-2 Silver (Dual 5532 Op Amp) for APTX-HD

Features:
- QCC5125 Bluetooth 5.1 module for LDAC, APTX-HD, etc.
- ES9018 decoder supports USB decoding and type-c power supply
- Bluetooth 5.1 version supports optical, coaxial, RCA and 3.5mm outputs
- Dual 17V op amp power supply, featuring better dynamics
- Coaxial port for input and output
- Relay with output protection
- All-aluminum housing and gold-plated terminals
- 3pcs filter capacitors for Rubycon
- Original SMD capacitors for Samsung

Front & Real Panels:
- ANT: Antenna
- OPT: Optical output
- COA: Coaxial input/output
- TYPE-C: Type-c socket and USB DAC port for PC
- With a switch
- PHONE: Headphone jack
- Audio L and R: RCA output

Functions:
- After connecting to a phone via Bluetooth, it supports optical, coaxial, 3.5mm and RCA output
- Bluetooth disconnected, its coaxial port can input digital signals. Additionally, it enables 3.5mm and RCA outputs, while optical output is disabled.

Specifications:
- Model: ES9018 decoder with optical, coaxial and analog outputs
- Power consumption: about 2W
- Power supply: type-c port for 5V power supply and USB DAC function
- Impedance: RCA output 47KΩ; support 8-300Ω headphones
- Product size: 72 x 29 x 116mm/2.8 x 1.1 x 4.6"
- Net weight: around 165g/0.4lb

Package Included:
- 1 x Bluetooth Receiver
- 1 x Antenna
- 1 x USB Cable

Note:
- It is assembled and ready to use.
