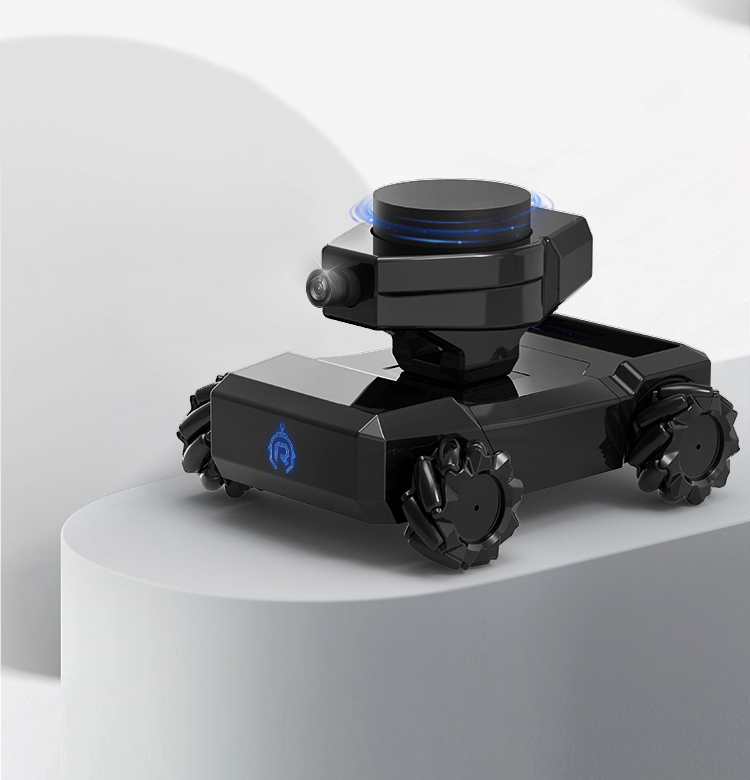

ROS MINI ROS Robot Car Assembled Mecanum Wheel Car Lidar Development Board with 1MP Camera

ROS MINI ROS Robot Car Assembled Mecanum Wheel Car Lidar Development Board with 1MP Camera

Functions:
- ROS operation system
- Programming for Python
- Advanced image processing technology
- Mecanum wheel
- SLAM mapping and navigation
- Path planning and navigation
- Gesture recognition
- Wifi real-time video transmission

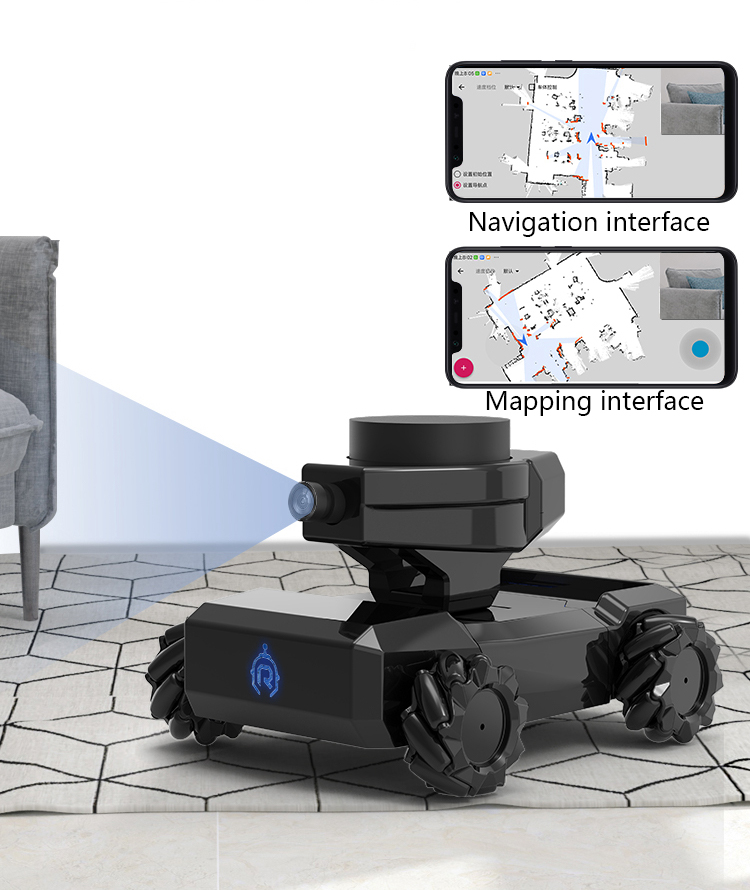

- Mapping and navigation in phone APP

Features:
- SLAM algorithm; Lidar mapping and navigation
- ROS MINI radar car supports ROS2. The robot supports for ROS1 Melodic and Noetic versions, and ROS2 Foxy version. ROS2 is developed based on the Foxy version, which realizes functions such as keyboard control, radar mapping, and radar navigation. More functions of ROS2 are under continuous development

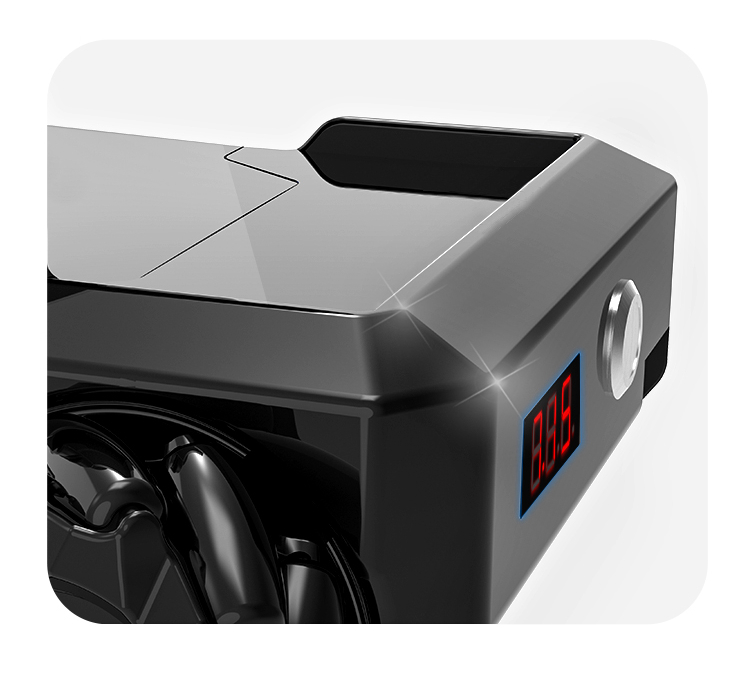

- Baking paint process, the paint film is plump. Piano texture, timeless

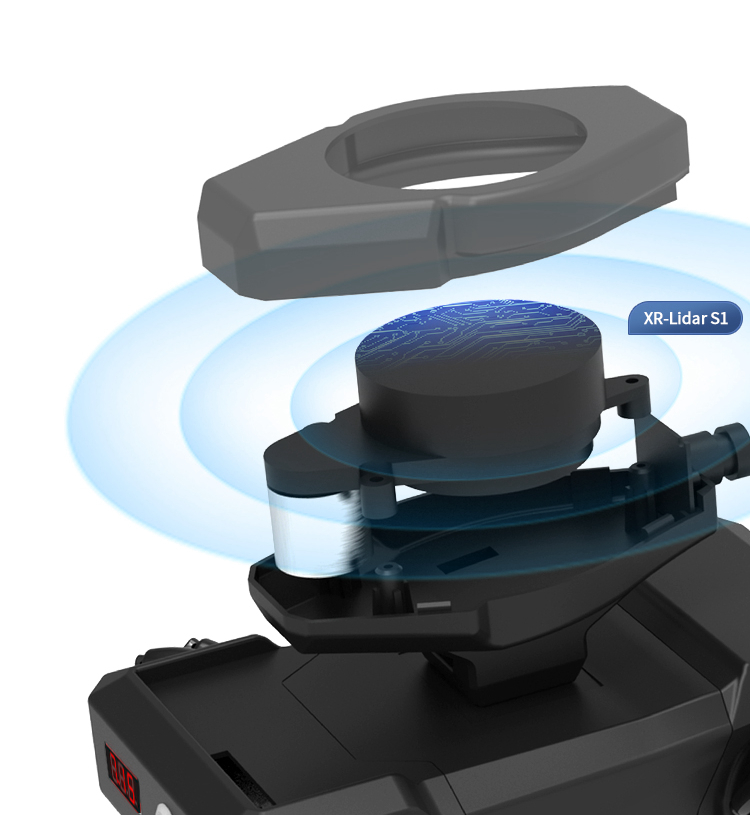

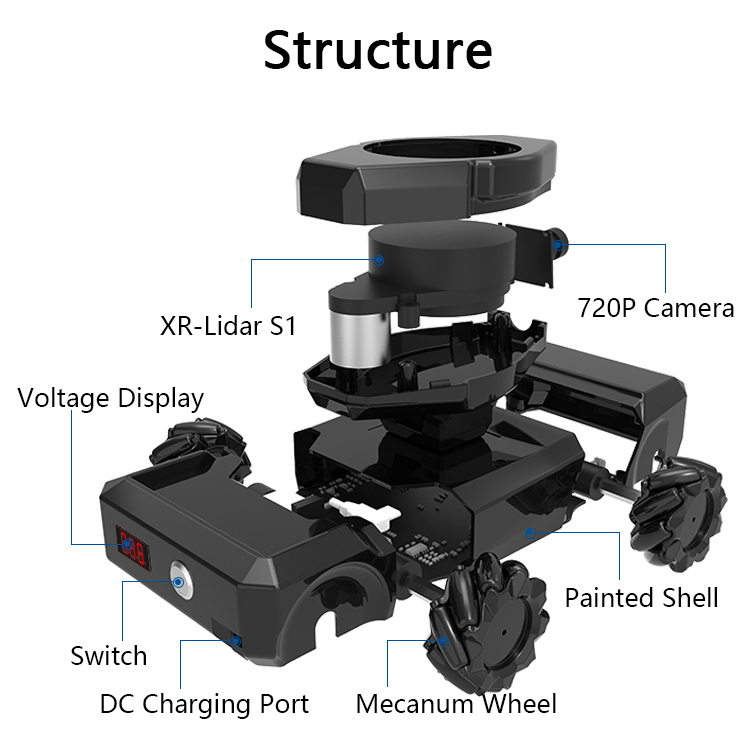

- Fully shielded body shell and laser scanning ranging radar. OPTMAG optical and magnetic fusion (meeting Class I laser safety standards); 8m/26.2ft measurement radius; 360 scanning distance; 3860 times/second measurement frequency
- With a X3 development board for Horizon Robotics. It has a significantly faster processor, richer multimedia and better connectivity. Quad-core processor for ARM Cortex-A53 at 1.2GHz; MIPI CSI 2 lane* 2; 2 x micro-HDMI port carrier circuit; Gigabit Ethernet RJ45 port; USB Type-C 5V-2A; USB Type-A 3.0*1, USB Type-A 2.0*1
- Real-time video transmission: through WiFi, it can transmit the video collected by the camera in real time and display it on the APP

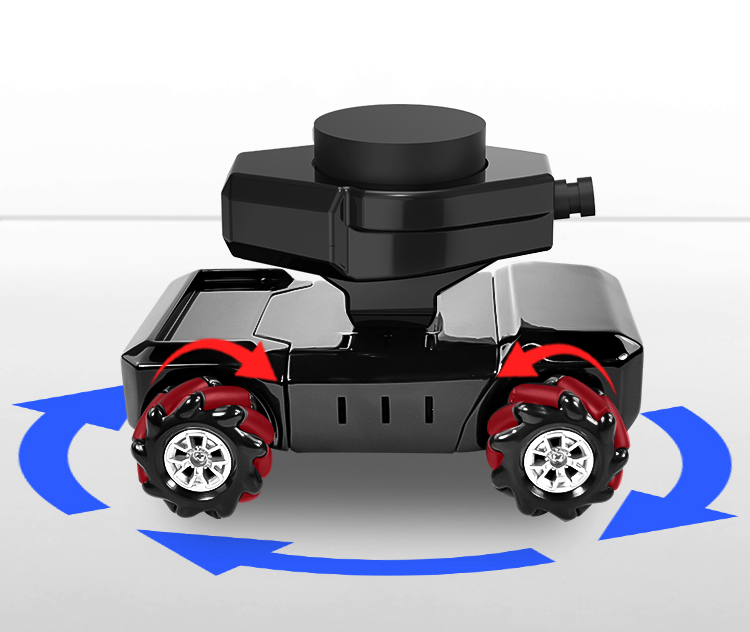

- Mecanum wheels can move in all directions. The mobile phone controls the ROS radar car, which allows the car to move in all directions. Three controllable speed: low speed, medium speed, and high speed
- Intelligent gesture recognition: precise machine vision and neural network technology. It can intelligently recognize the meaning of gestures through the camera and control the movement of the car body

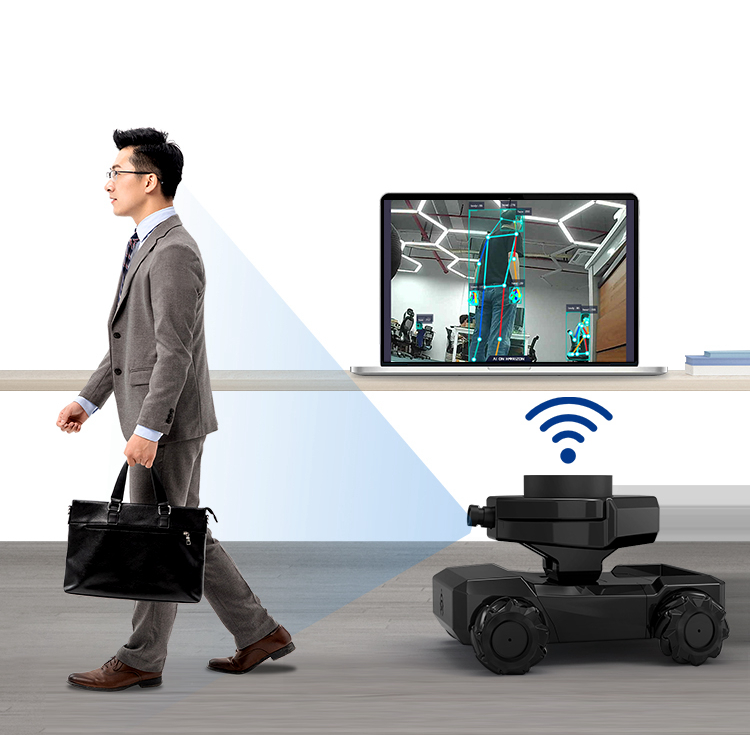

- Human body recognition and following: it can recognize and match the human body model through the camera to intelligently calculate the target position, and automatically follow the human body movement

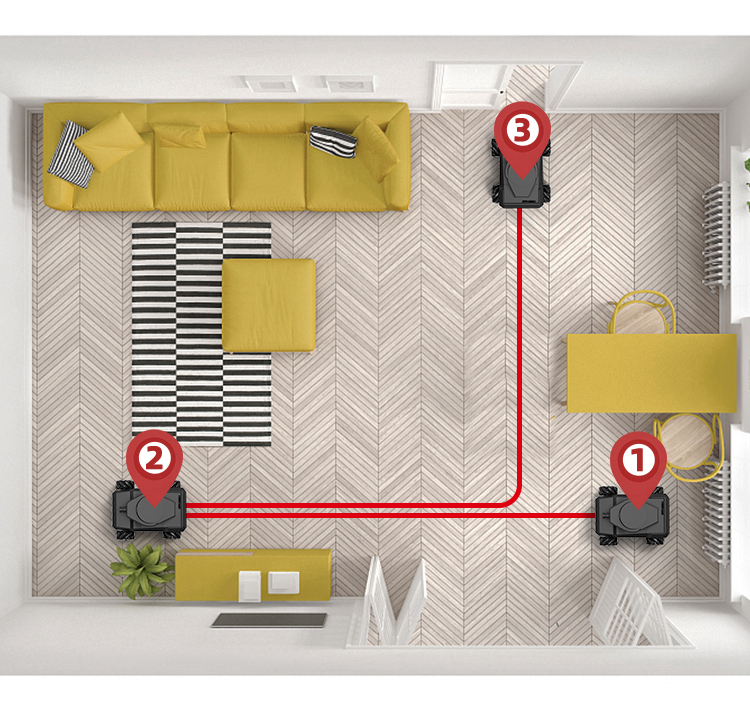

- Indoor autonomous path planning: with multiple built-in algorithms, it can automatically plan the path and reach the destination

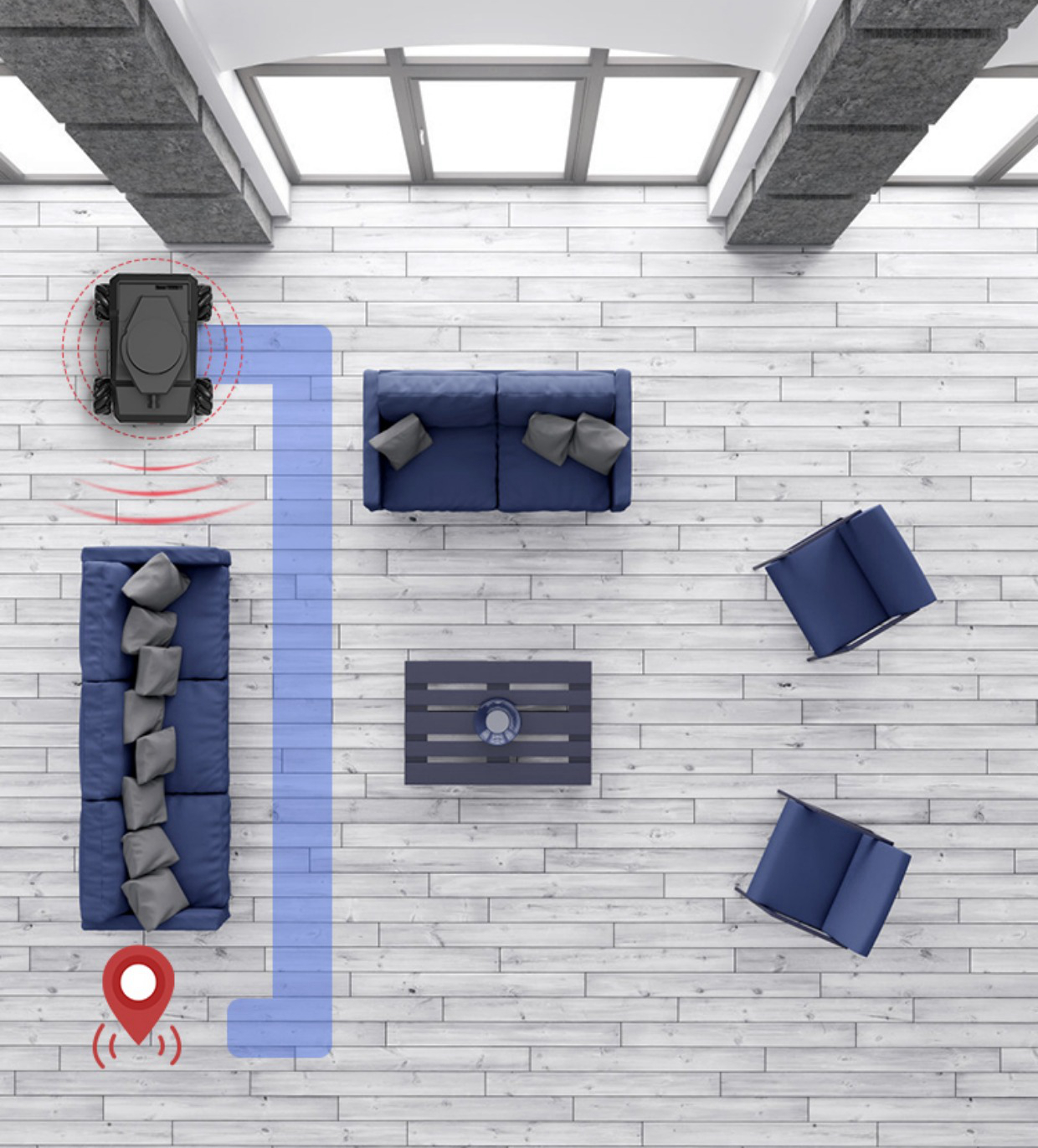

- Indoor autonomous navigation and dynamic obstacle avoidance: According to the indoor map, it can plan the path and perform secondary planning to achieve dynamic obstacle avoidance when the road is blocked

Specifications:
- Item name: XR ROSMINI Car with Mecanum Wheel
- Maximum speed: 35cm/sec (13.8inch/sec)
- Core processor: for Sunrise X3 (4G)
- Car body weight: 600g/1.3lb

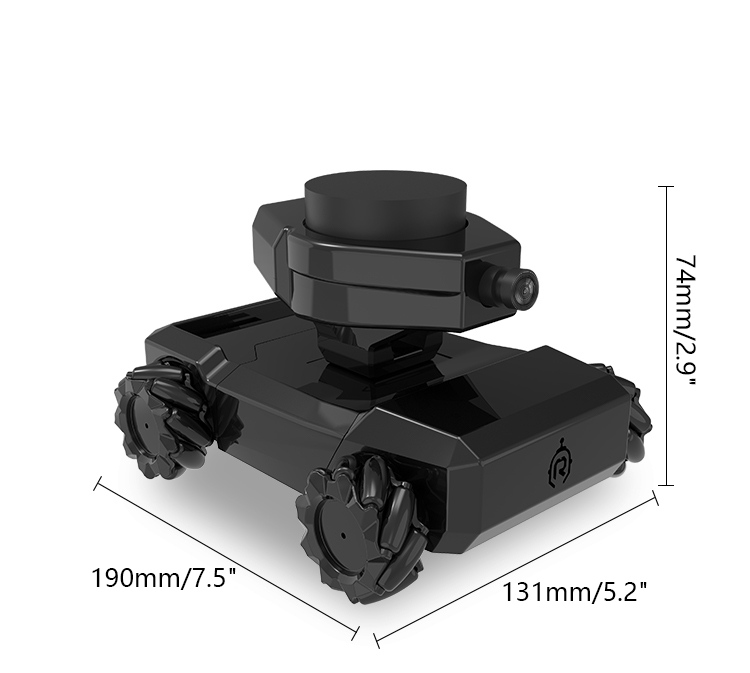

- Body Dimensions: 190 x 131 x 74mm/7.5 x 5.2 x 2.9"
- Control range: ≤ 20M/65.6FT
- Supply voltage: DC 8V
- Working current: 1.5A
- Control method: mobile phone, PAD, PC
- Endurance time: 2 hours
- Camera: 720P 1MP
- Programming language: for Python
- Radar: XR-Lidar S1
- Scanning angle: 0-360°
- Radar detection distance: 8M/26.2FT
- Radar scanning frequency: 10Hz

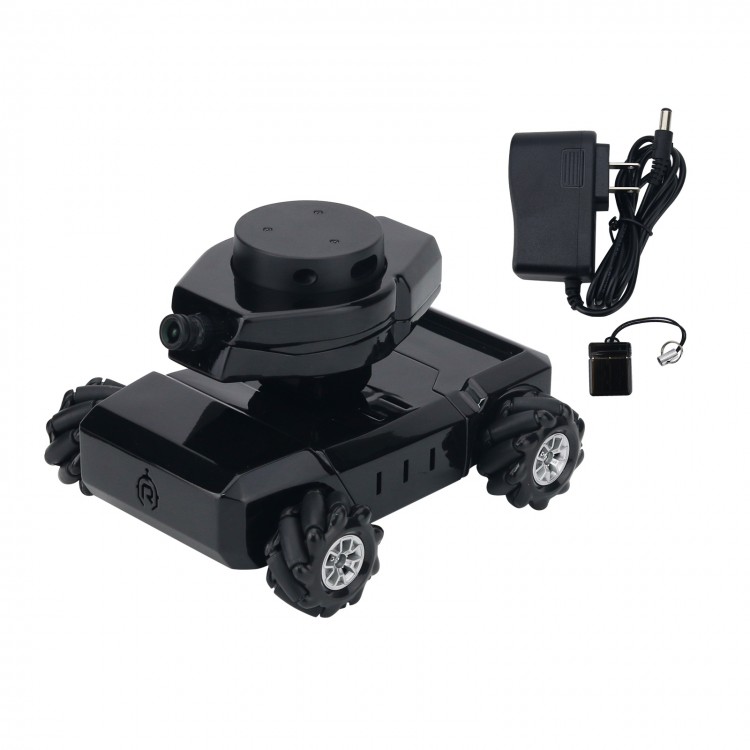

Package Included:
- 1 x ROS Robot Car
