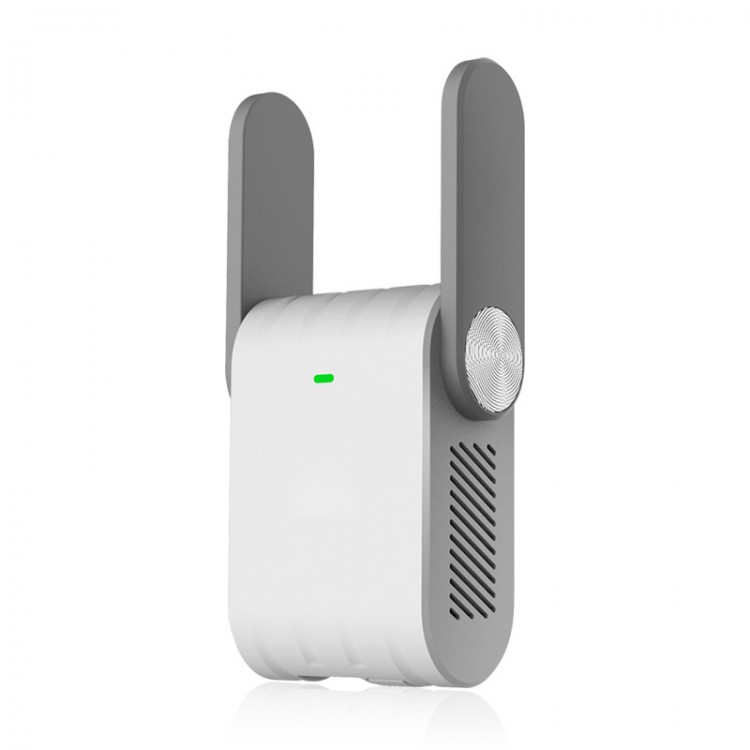

RP102 Wifi Range Extender Wireless Repeater 300Mbps 2.4GHz Wifi Signal Booster 8M+64M

RP102 Wifi Range Extender Wireless Repeater 300Mbps 2.4GHz Wifi Signal Booster 8M+64M

Features:
- Supports IEEE802.11b/802.11g/802.11n/802.3/802.3u
- Wireless Transmitted Power: 2.4G: 802.11b, 19dBm±1dBm; 802.11g, 15dBm±1dBm; 802.11n, 13dBm±1dBm.
- Receiving Sensitivity: 802.11b: -75dBm@10% PER; 802.11g: -71dBm@10% PER; 802.11n: -68dBm@10% PER
- 1 Port 10/100 Mbps (Auto MDI/MDIX)
- Supports RESET function

Hardware Specifications:
- Main Chip: QCA9533-BL3A
- Memory: 64M
- Flash Memory: 8M

Antennas:
- Built-in 2.4GHz, 5dBi*2 Omnidirectional Gain Antenna (non-removable)

RF Parameters:
- Maximum transmission power: 80mW (19dBm)
- Maximum receiving sensitivity: -90dBm
- Operating frequency: 2.412GHz to 2.4835GHz

Modulation:
- DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
- OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
- MIMO-OFDM: MCS 0-15

Rates:
- 11b: 1, 2, 5.5, 11 Mbps
- 11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- 11n: MCS0-MCS15 (20MHz and 40MHz analog bandwidth)
- 20MHz: 144.4Mbps
- 40MHz: 300Mbps

Physical Interfaces:
- 1 10/100Mbps LAN RJ45 port
- 1 RESET button

Other Parameters:
- Indicator Lights: SYS, LAN, WIFI (three color lights)
- Power Supply: built-in 220V AC
- Maximum Power: <5W
- Housing: PC+ABS fireproof V0 engineering plastic shell
- Working temperature: -10℃ to 65℃
- Storage temperature: -40℃ to 70℃
- Operating humidity: 10% to 90% RH (does not condense)
- Storage humidity: 5% to 90% RH (does not condense)

Package Included:
- 1 x Wifi Range Extender Wireless Repeater
- 1 x Quick Guide
