RPLIDAR A2M8 360 Degree Laser Scanner Development Kit Detecting Radius 12M For Robot SLAM

RPLIDAR A2M8 360 Degree Laser Scanner Development Kit Detecting Radius 12M For Robot SLAM

Features:

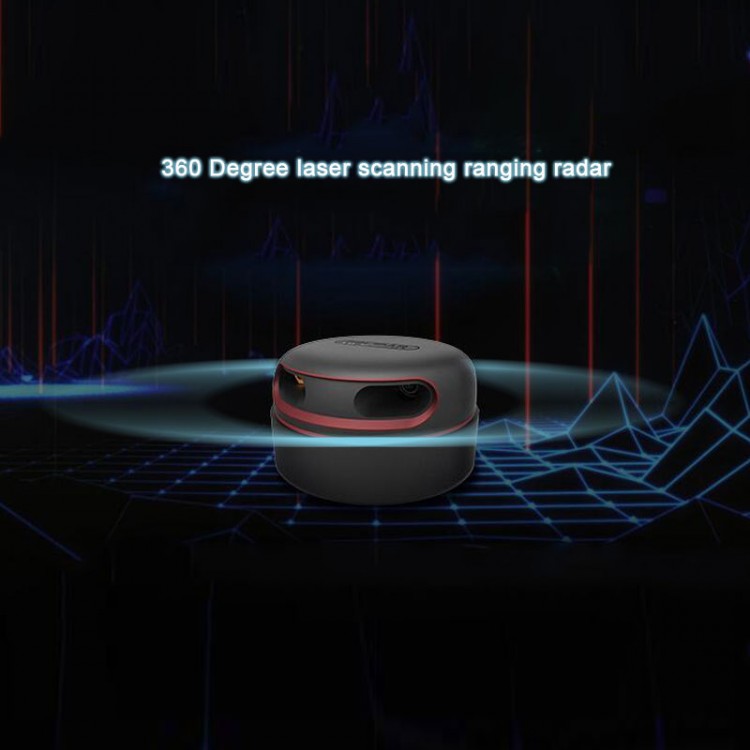

- 360° Laser Range Scanning: The core of the scanner runs clockwise to perform a 360 degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.

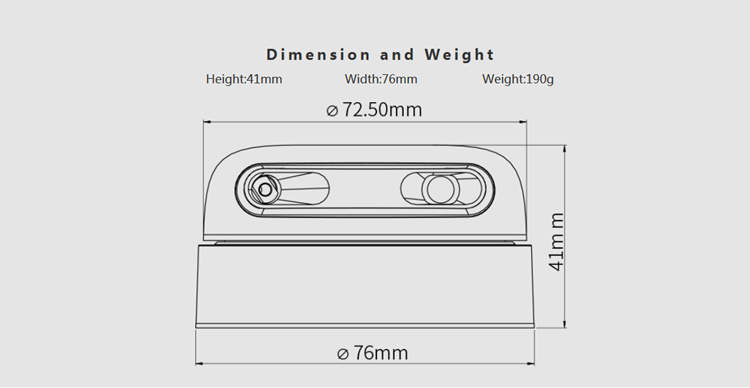

- Ultra Thin 4CM: With customized special parts and carefully designed internal mechanical system, it keeps its excellent performance, with 4cm in thickness. It is ideal for all kinds of service robots.

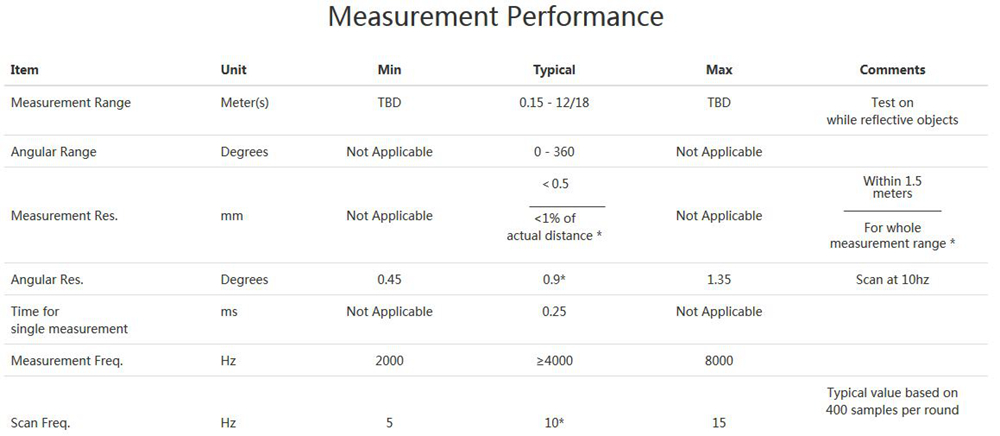

- 8000 Sampling Frequency: RPLIDAR improves internal optical design and algorithm system to make the sampling rate up to 8000 times per second. It ensures that your robot can map quickly and accurately.
- Low-Noise Brushless Motor: Compared with the traditional belt drive mode, it adopts self-designed brushless motor to reduce mechanical friction in running. Therefore, the laser scanner can run smoothly almost without noise.
- 12M Measuring Radius: With algorithm optimization, it improves the range radius to 12 meters, which will provide more data for mapping.
- OPTMAG Original Design: Most traditional non-solid LIDARs use slip ring to transfer power and data information. However, they only have thousands of hours of life due to mechanical wearing out. The scanner integrates wireless power supply and optical communications technology, and unique OPTMAG technology, which solves the problems of electrical connection failure and short lidar life due to physical contact and mechanical wear.
- Class 1 Laser Safety Standard: It adopts low power infrared laser light as its light source and drives it by modulated pulse. It reaches Class 1 Laser Safety Standard which can ensure its safety to human eyes and pets.
- High-Speed RPVision Range Engine RPVision 2.0: Adopting laser triangulation ranging principle and high-speed RPVision range engine,it measures distance data 8000 times per second and also has a excellent performance in a long distance.
- Application Scenario: Widely used in robotic SLAM location, obstacle avoidance, fast scanning in industrial field, environmental scanning and 3D reconstruction, multi-touch and human-computer interaction.
- Support Robot Autonomous Positioning & Navigation Solutions: RPLIDAR A2 is the core sensor, which can quickly obtain the information of environmental profile. It can be used with SLAMWARE to help your robot to independently map and make real-time path planing and avoid obstacles automatically.
- Development & Supported Kits: Fits RPLIDAR, related tools, SDK and the like. Fit SDK & Demo for Windows, Linux, IOS and Android.

Package Included:
- 1 x USB Cable For Adapter Board
- 1 x Adapter Board
- 1 x Laser Range Sensor A2M8
- 1 x Power Cord For Adapter Board

Note: If software LidarTouch or Ethernet module for interaction is needed, please contact us for price and more details.
