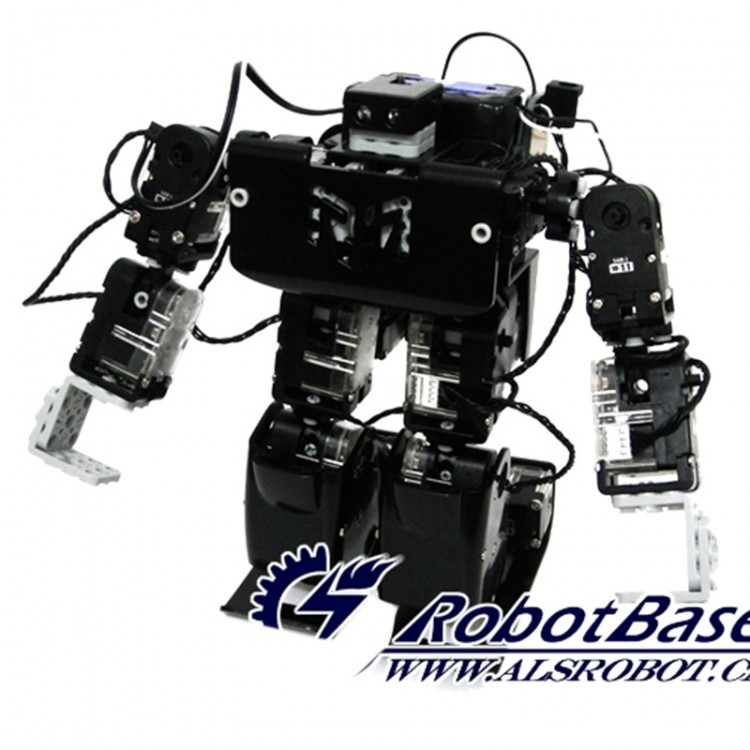

RQ-HUNO Robot RoboBuilder Humanoid Robotic Manufacture Intelligent Boxing Robot
Description:
HUNO is a humanoid type standard robot platform that can walk with 2 Legs. It's one of the most fancy robots that can be built with RoboBuilder Kit. With simple remote control, it can demonstrate various dynamic actions such as walk, jog, kick, head-stand, etc. By motion programming, you can have it show dancing, martial arts, reacting to external inputs (sound or vision).
- Microsoft robot software. Graphical interface of the action design software, you can make it easier to write RQ-HUNO action.
- Motion Builder/Action Buileder software. Motion Builder software allows users to control the servo and the RQ-HUNO operation; the Builder Action design software allows users to make the RQ-HUNO to make the action through the built-in sensor.
- APP Android application software (need a Bluetooth module). Let the user control the RQ-HUNO robot through the Android mobile phone or tablet.
- Support the C and JAVA. Let the user design any type of robot action through the C or JAVA language
Features:
- Compact Design.
- 2 way mechanical power transmission.
- Quick & Simple joint assembly.
- Precise PID control.
- Error compensation algorithm.
- Position Control, Speed Control, Torque Control.
- Multi-drop full duplex UART serial communication.
- Control optimized protocol.
- External I/O support (1A/I, 2D/O).
- Standalone Motion programmable.
- Passive Sensor Mode, Power-saving Break Mode.
- Various Parameters, Various Speed levels.
- Voltage-adaptive automatic adjustment of control gain.
- Windows-based programming software.
- Wide range of input voltage.
- Wide range of operating angle.
- Reverse-voltage protection, over current protection.
- Two Metal bearings for mechanical durability.
Parameters:
- Operating voltage: 9-12V
- Servo: 10bit/0.3degree for SAM-3
- IR/ bluetooth (optional) remote control
- Android control
- C program
- Music output
- Li-Poly battery: over 40mins
Package included:
- 1 x RQ-HUNO Robot
