RS-10 HD Bluetooth Receiver HIFI Music Bluetooth 5.0 Receiver CSR8675 For APTX/APTX-HD/SBC/AAC
Features:
- Hifi Bluetooth 5.0 receiver
- Wide sound field; three-band equalization; comfortable to listen to delicate sound
- Fit your Hifi amplifiers and active speakers
- Support coaxial, optical and analog audio outputs. The optical and coaxial outputs of this machine only provide pure digital signals for connection to external DAC. Its internal digital signals are dedicated digital shaping IC and coupling transformers to output high-quality SPDIF coaxial signals
- Its front panel with a blue indicator light for power supply

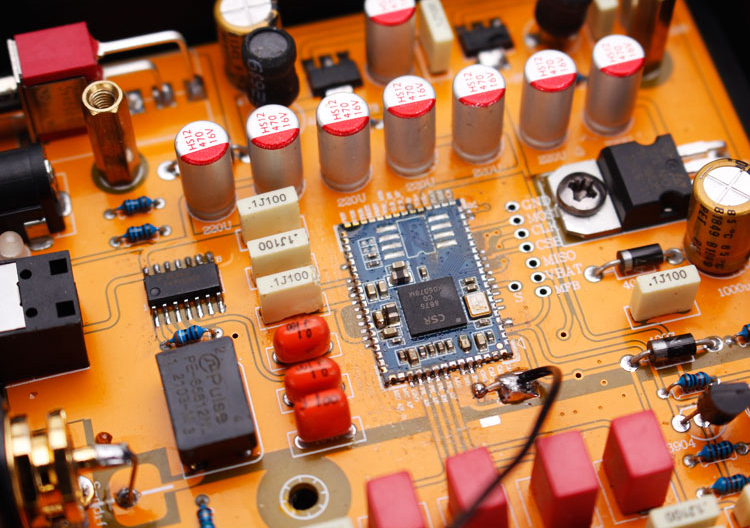

- Bluetooth chip CSR8675 for SBC/AAC/APTX/APTX-LL/APTX-HD. Born for the sake of high quality sound

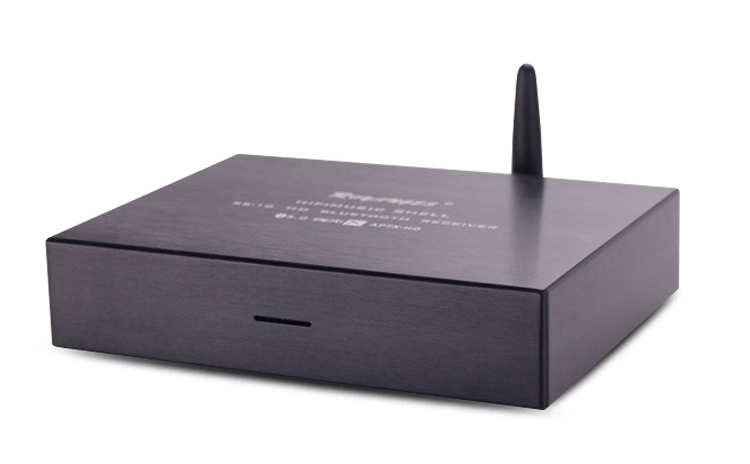

- Hollow-out chassis in solid aluminum with a brushed finish
- Quality gold-plated output terminal made of pure copper
- The output part of the bluetooth module is simulated by the chip, and then it is coupled by four red capacitors for WIMA after the chip outputs true balanced 4-channel differential signals
- Gold-plated IC socket for Nextron allows you to replace op amps to meet your demanding audio requirements

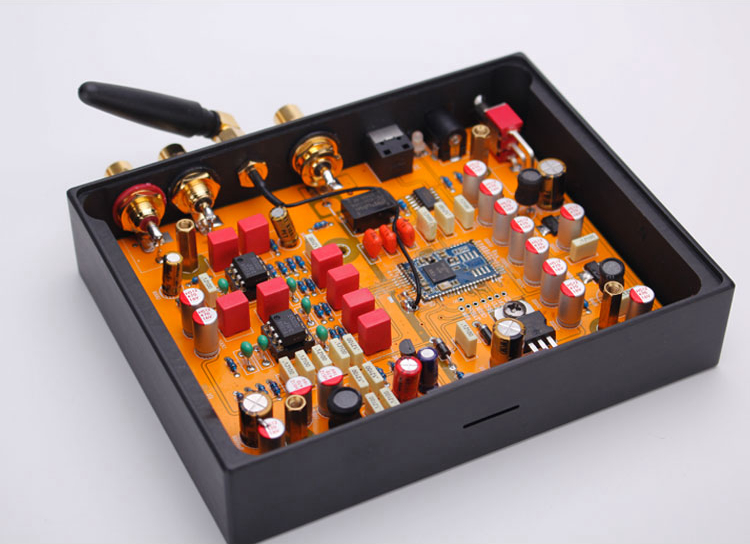

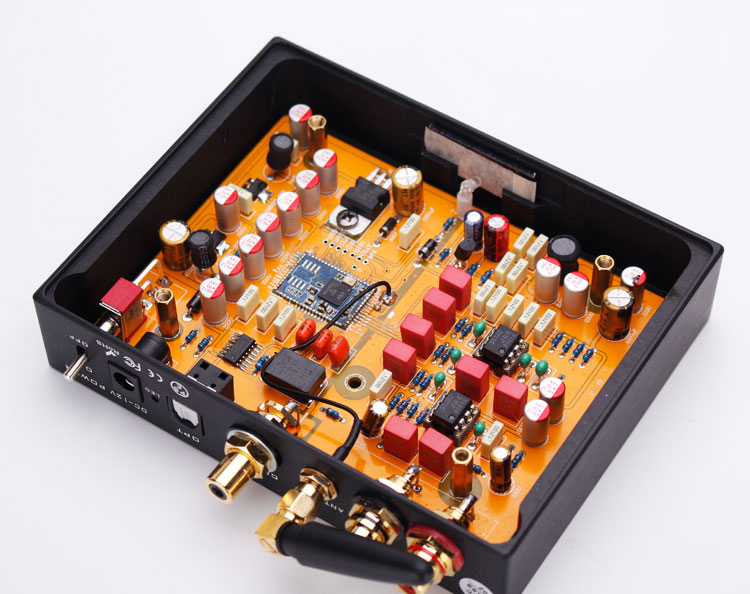

- In-line components are used. High precision copper pin 1% resistor. Long-life high-frequency capacitors are used in the chip part. Using solid capacitors for Japanese Fuji; components for WIMA and ELNA; audio capacitors for NICHICON FW series; audio capacitor feedback for for Rubycon; and correction capacitors for Philips
Specifications:
- Model: RS-10
- SNR: ≥92dB
- Signal output amplitude: 1.5VRMS

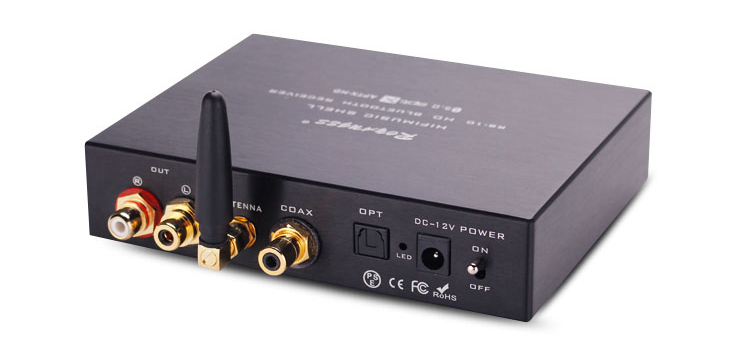

- Audio output: RCA terminals/coaxial/optical
- Power consumption: 4W
- Power supply: power adapter 1.5A, 12V DC

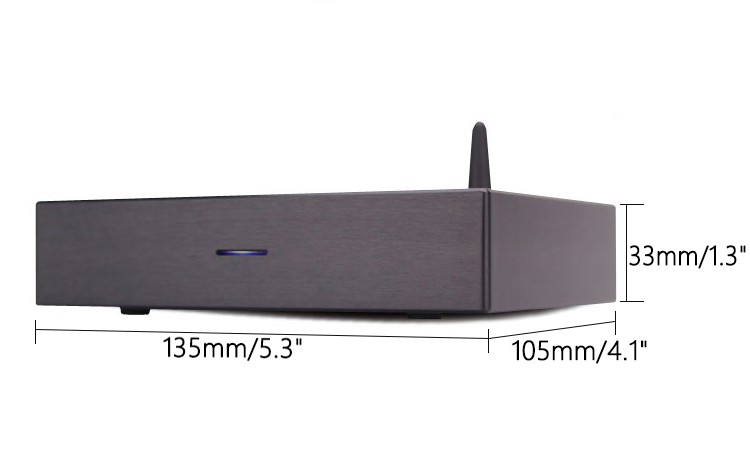

- Machine size: 135 x 105 x 33mm/5.3 x 4.1 x 1.3"
Package Included:
- 1 x Main Unit
- 1 x Power Adapter
- 1 x Bluetooth Antenna
- 1 x User Manual
- 1 x RCA Cable
Note:
- It is assembled and ready to use.
