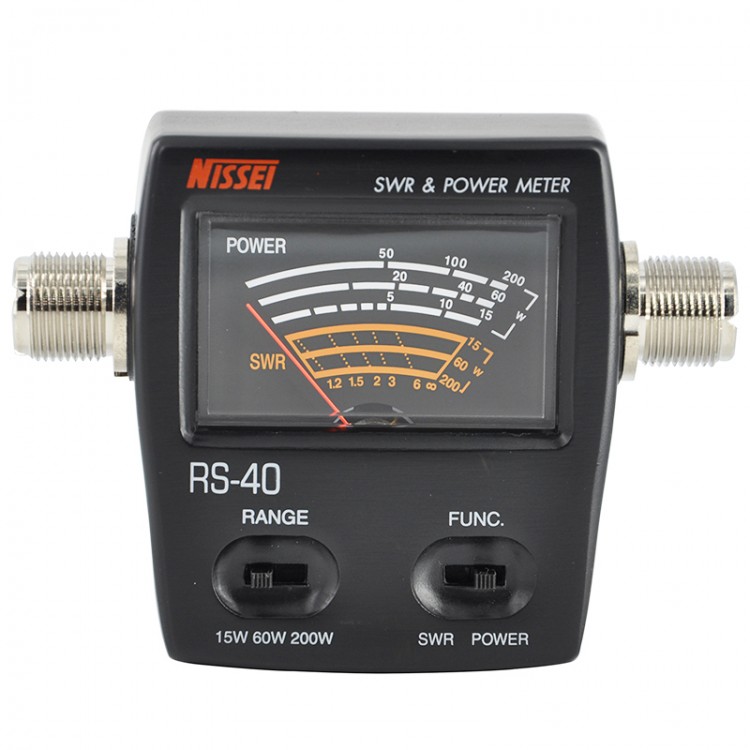

RS-40 200W SWR & Power Meter PWR SWR Meter 140-150MHz 430-450MHz VHF UHF for NISSEI
Advantages:
- SWR & POWER meter can read out directly without any calibration
- Maximum measurable power range up to 200W
- Low insertion loss (0.3dB or even lower) structure allows it to be connected permanently
- High precision; convenient to use for HAM people
Specifications:
- Frequency Range: 140-150MHz and 430-450MHz
- Measurable Power Range: 0-200W
- Power gear range: 15W, 60W, and 200W
- Accuracy: Average±10%
- VSWR: F.S.D required for minimum power of 3W
- Impedance: 50Ω
- Connector: SO-239M
- Dimensions: 70 x 78 x 30mm/2.8 x 3.1 x 1.2" (WxHxD)
- Weight: 180G/0.4LB
Package Included:
- 1 x SWR & Power Meter
