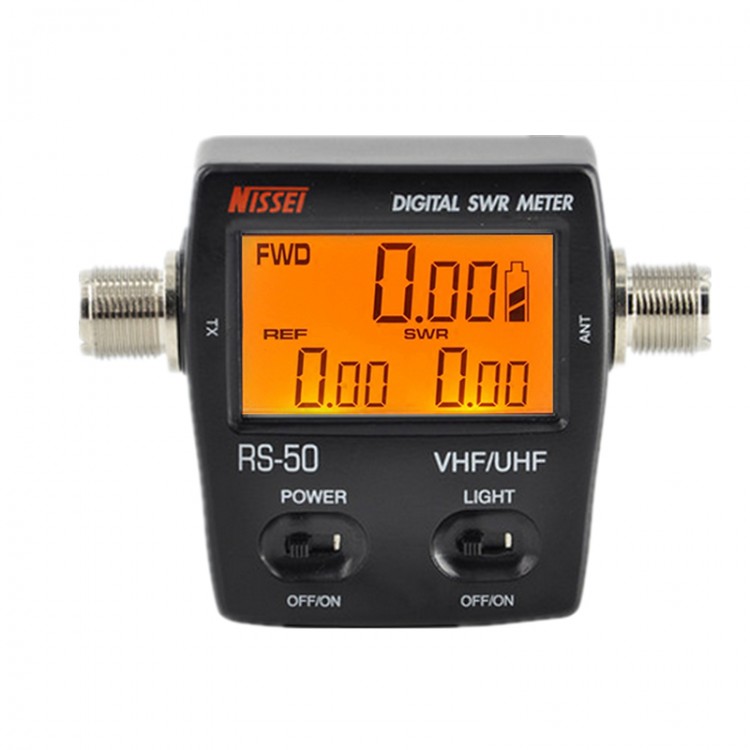

RS-50 120W 125-525MHz Digital SWR Meter SWR Power Watt Meter VHF UHF for TYT Baofeng
Advantages:
- SWR power meter can read out directly without any calibration
- Maximum measurable power range up to 120W
- Low insertion loss (0.3dB or even lower) structure allows it to be connected permanently
- High precision; convenient to use for HAM people
Features:
- Forward/Reversed/VSWR ration in one push button
- LED backlight display for easy reading
- Micro USB-DC 5V output (not including adapter)
- Convenient control layout for ease operation
Specifications:
- Frequency range: 125-525MHz
- Measurable power range: 0-120W±5%
- Testing functions: Fwd/Rev Power, SWR
- Impedance: 50Ω
- Connector: SO-239 M type
- Size: 70 x 78 x 30mm/2.8 x 3.1 x 1.2" (WxHxD)
- Weight: 180G/0.4LB
Measurement:
1. Apply output of transceiver to "TX" and antenna or load to "ANT".
2. "POWER" on for ready to use.
3. LCD display show simultaneously "Fwd/Rev Power and SWR".
4. For back-light, please switch "LIGHT" to "ON". No function in 30 seconds, the backlight will automatically off. Once PTT launched, the backlight will be back.
Package Included:
- 1 x SWR Power Meter
