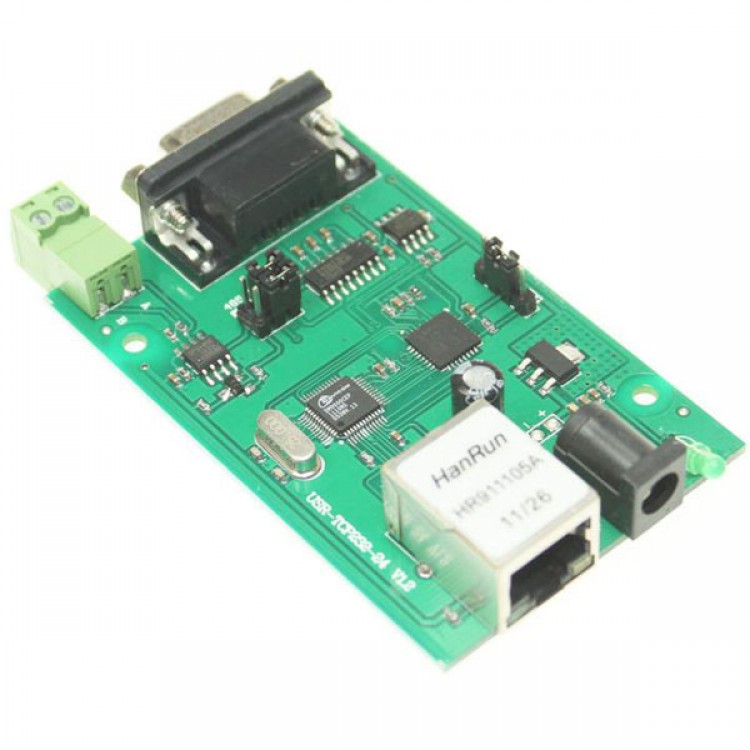

RS232 RS485 Serial Port to Ethernet TCP/IP Converter Adpter Communication Module

RS232 RS485 Serial Port to Ethernet TCP/IP Converter Adpter Communication Module
Description:
- RS232 RS485 Serial Port to Ethernet TCP/IP Converter Adpter Communication Module is used to transfer serial data between internet TCPIP data. It can be upgrade normal equipment to networking equipment easily, plug and play, it needn’t second development.
- Embedded Serial Port module has various Ethernet TCP/IP (TCP SERVER/ CLIENT,UDPServer/Client) , enable your equipment connect to networking immediately. with TCP/IP, the module can connect your equipment to networking ao that you needn't  make TCP/IP  programm. this product has the feature that can adapts 10/100M networking  which can transfer data in a high speed.
Product Features:
- 10/100M self-adaptive high-speed network
- Support RS232 and RS485 dual interface, jumper selectable
- support AUTO MDI / MDIX, can use a crossover cable or parallel cable connection;
- support in the 300 ~ 256000 bps baud rate
- ways of working can choose TCP Client, UDP mode, UDP Server mode;
- supports virtual serial port mode
- working port, destination IP address and port can be set arbitrarily;
- automatically disconnected from the network disconnected, the entire network to ensure a reliable TCP connection;
- flexible serial data sub-frame set to meet a variety of sub-users needs;
- TCPIP to provide supporting information and programming support;
- original full use of imported chips, machine chip production process, quality assurance.
- Protocol: ETHERNET, ARP, IP, UDP, TCP;
- Power supply: Input Power: 5V DC.
- Mechanical Dimensions: (L × W × H): 80 × 50 × 13.6 (mm).
- Operating temperature: Industrial: -25 ~ 75 ° C.
- Save the environment: -40 ~ 85 ° C, 5 ~ 95% RH.
Packing list：
- 1 * RS232 RS485 Serial Port to Ethernet TCP/IP Converter Adpter
