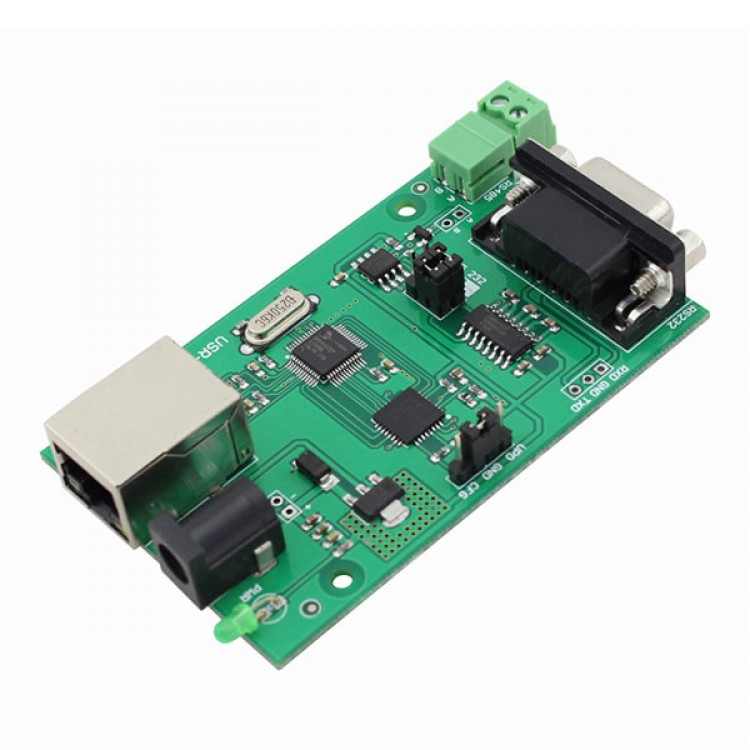

RS232 RS485 to TCP/IP Ethernet Serial Device Server Module Converter


Features:
- 100M high speed Ethernet card, Auto detected 10/100M High speed ethernet
- Auto MDI/MDIX,Can use a crossover cable or parallel cable connection
- RS232 bound rate can set up from 300 to 256000
- RS485 bound rate can set up from 300 to 115200
- Work mode: TCP Client, UDP mode, UDP Server mode; TCP Server mode
- Support Virtual serial port
- Across the gateway,across switches,routers
- Can work in LAN,also can work on the Internet(external network)
- Working port,destination IP address and port can be easily set up
- Auto connect when in tcp mode, take a Safe and reliable link all the time

Specifications:
- 32 bits ARM CPU
- LAN:10/100Mbps;protect:Built-2KV isolated electromagnetic
- RS232: TXD RXD GND
- RS485: A(Data+)B(Data-);120 Ohms Termination Resistance on board
- Network protocol:Ethernet ARP IP UDP TCP ICMP
- Software tool:configuration software,TCP/UDP test soft,RS232 debug soft
- Configuration method:RS232 or via Ethernet,free software avaliable
- Power:5V
- Size (L*W*H):90mm*50mm*18mm
- Operating temperature: -25~75°C
- Preservation: -40~85°C, 5~95%RH

Package list:
- 1 x RS232/RS485 to Ethernet TCP/IP module
