RS232 TTL to Ethernet TCPIP RJ45 Converter Module

RS232 TTL to Ethernet TCPIP RJ45 Converter Module

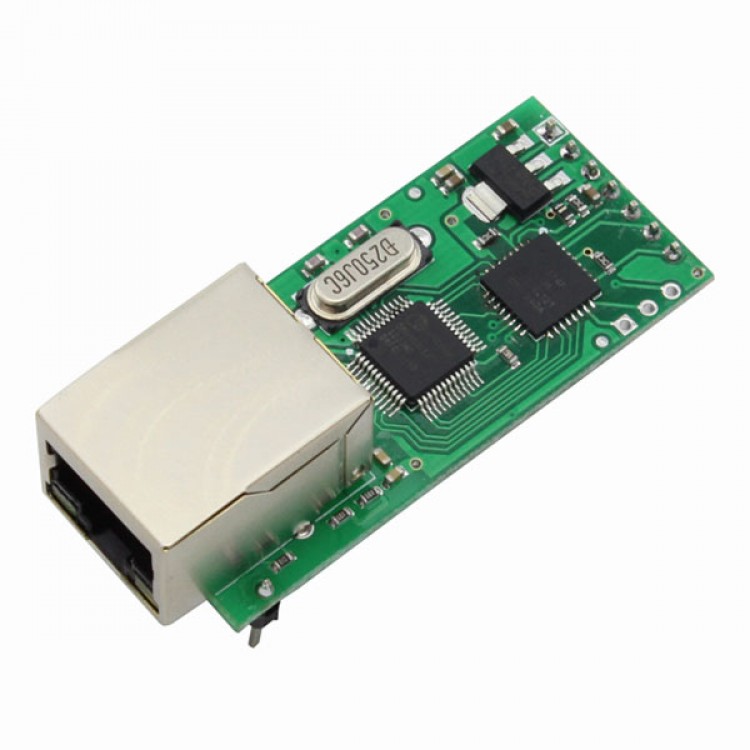

RS232 serial to ethernet converter tcp ip module is a powerful product for convert your RS232 serial data to ethernet, translate your data from RS232 and server.This module has small size 55x23mm only, low power consumption, powered by ARM processors, high speed, high stability, can work at UDP and TCP Client mode.

Usr's family of RS232 to Ethernet adapters (commonly referred to as Terminal Servers or Device Servers) are the best choice for transmitting serial data across an IP network. Offering flexibility, high performance and advanced RS232 to Ethernet adapter technology, USR-TCP232 modules are ideal for applications and devices that require an efficient way of communicating with serial RS232 devices over an Ethernet network.

You can have big discount if you buy large quantity Serial to Ethernet module, and we can provide customized services, customized features need only hundred for minimum order.

RS232 serial to ethernet converter tcp ip module is a multi-functional Embedded Ethernet serial data conversion module, which integrates a TCP / IP protocol stack, the user can easily use it to complete the networking of embedded devices, saving human and material resources and development time, to make products more faster to market, enhance their competitiveness. Integrated 10/100M adaptive Ethernet interface module, the maximum baud rate serial communication up to 230.4Kbps, with TCP Client, UDP mode, easily configured by software.

RS232 serial to ethernet converter tcp ip module Features
- 10/100M Auto adaptive Ethernet interface, 2KV Protect inside
- Based on 32 bit ARM
- RS232 band rate from 110 to 256000 bps
- Support AUTO MDI/MDIX, you can use Crossover cable or parallel cable connection
- Work mode UDP , TCP client, TCP Server, UDP Server, Virtual COM port mode
- Support virtual serial COM port mode
- Working port, target IP address and port can be easily set up
- Auto connect if connection break detected
- Two Power port,VDD 4.5~5.5V, VCC 3.3V
- Agreement: ETHERNET, ARP, IP, UDP, TCP
- Ethernet: RJ45 port x 1
- COM port: TTL x 1, TXD RXD GND
- Set up via RS232 , supply free software and Communication protocol
- Supply free software for TCP/IP socket programming
- Module size(LxWxH): 55x23x23(mm) with network port and pin
- PCB size(LxW): 50.4x22.6(mm)
- Module Current: 180 mA max
- Operating temperature: -25 ~ 75 °C
- Storage temperature: -40 ~ 85 °C

User guide in english: http://en.usr.cn/download/USR-TCP232-T-EN.pdf

Free Test and debug software: http://www.usr.cn/Uploads/Download/201107/USR-TCP232-Test.exe
