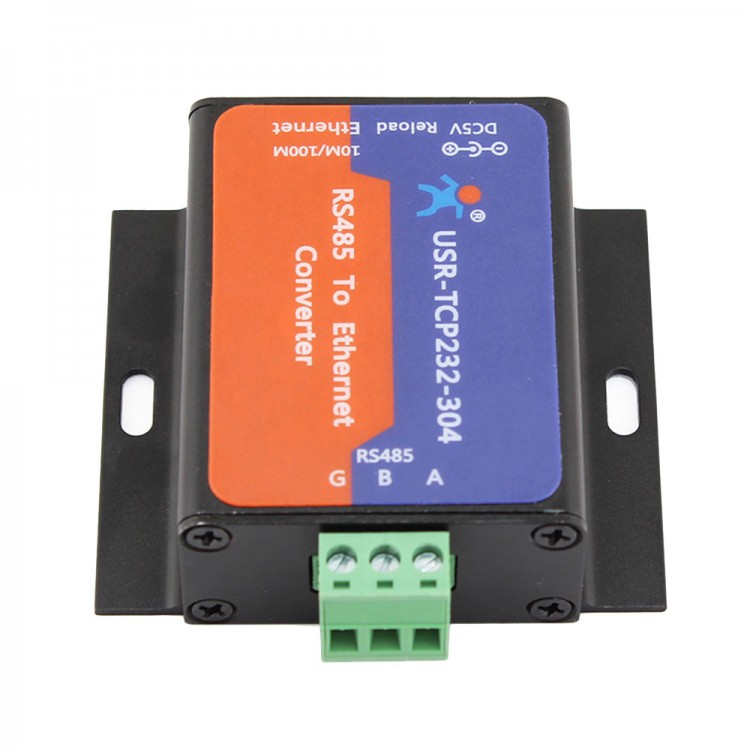

RS485 to Ethernet Converter 10/100MHz Serial Server TCP IP ARM Processor USR TCP232-304

RS485 to Ethernet Converter 10/100MHz Serial Server TCP IP ARM Processor USR TCP232-304

USR-TCP232-304 V1.0.1 instructions: Click here

Description:
- DHCP function, can automatically obtain IP, IP address can be set through the serial port protocol
- DNS server address can be customized
- DNS function, you can resolve the domain name
- Page parameter configuration function, through the web page setup parameters
- Through the network to upgrade the firmware function
- 10/100M adaptive Ethernet interface, support AUTO-MDIX cable cross direct automatic switching
- The serial baud rate from 600bps to 230.4Kbps can be set, support None, Odd, Even, Mark, Space
- Work mode can select TCP Server , TCP Client , UDP Client , UDP Server , HTTPD Client
- Parameters can be set through the serial port or network, providing a set of protocols for customers
- Support virtual serial port
- User-defined heartbeat packet mechanism to ensure that the connection is true and reliable
- User-defined registration package mechanism to detect the status of the connection
- In Server TCP mode, the number of connected Client can be set between 1 to 16 (the default 4pcs), which has been connected to the IP, and send / receive data according to the connection calculation.
- MAC address can be modified
- At the same time support the software and hardware to restore the factory settings
- Can span the gateway, switch, router operation
- Can work in the LAN, also can access the Internet
- Provide PC programming examples (socket), VB, C++, Delphi, Android, IOS, etc.

 Specification:
- Processor: ARM

Ethernet:
- NO. of port: 1
- Interface standard: RJ45
- Speed: 10/100Mbps,MDI/MDIX Cross and direct connect are automatic switching
- Protection: 2KV electromagnetic isolation, enclosure isolation protection
- Internet protocal: IP,TCP,UDP,ARP,ICMP
- Cache: Transmitting: 6K byte, receiving 4K byte

Seriel port:
- NO. of port: 1
- Interface standard: RS485: 2 line A+ B-
- Data bit: 5,6,7,8
- Stop bit: 1,2
- Check bit: None,Even,Odd,Space,Mark
- Baud rate: 600-23.4K
- Protection: RS485,Anti static 2KV
- Internet protocal: IP,TCP,UDP,ARP,ICMP
- RS-485 resistance: 2.2KOhm
- Cache: Receiving 800 byte

Software:
- Analog seriel port (USR-VCOM): Windows 200 or above(32/64bit)
- Configuraio: PC setting software,seriel port instructions, built-in website

Parameter:
- Size: 71*60*25mm
- Operating temperature: -25~75 deg C
- Storage environment: -40~105 deg C,5-95%RH
- Input voltage: DC4.75-7.0V
- Power consumption: <1W

Package List:
- 1 x RS485 to Ethernet Converter
- 1 x 5V 1A power supply
