Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $30.63 | $30.01 | $29.07 | $27.82 | Contact US |
RTL SDR USB Receiver USB Tuner 100KHz-1.7GHz UHF VHF HF RTL2832U+R820T2 with Telescopic Antenna
Features:
- Made of aluminum, it is durable and long lasting
- Portable and lightweight
- RTL.SDR RTL2832U + R820T2 100KHz-1.7GHz tuner receiver
- Shielded aluminum panels
- Direct sampling of the HF branch Q
- Fully assembled and ready to use
- Use the RTL2832U + R820T2chip set
- From 100KHz to 1766MHz operating frequency
- It covers all the HF amateur bands
- It covers the VHF and UHF bands from 24-1766MHz
- Up to 3.2 M sampling rate. (~ 2.8 MHz stable)
Description:
- AM, NFM, FM, DSB, USB, LSB and CW receiver modes
- Input impedance of 50 ohms
- Double SMA gold antenna connector
- Freeware software
- Independent inputs for short-range and VHF antenna
- Computer connection USB (mini usb) powered by a common USB • All specifications subject to change without notice
- It can be used to test the UV band receiving signal, the resonant frequency is GSM band, to receive the UV effect is not the best.
- It is a radio defined as very inexpensive software, based on dongles for USB DVB-T TV (Digital HD TV) receivers that have an RTL2832U chip.
Note: Depends on the SDR software used with the receiver 8-bit ADC with a dynamic range of ~ 50 dB
Specifications:
- Material: aluminum
- Color: Blue
- Size: 95 * 50 * 20mm
- Net weight: 140g

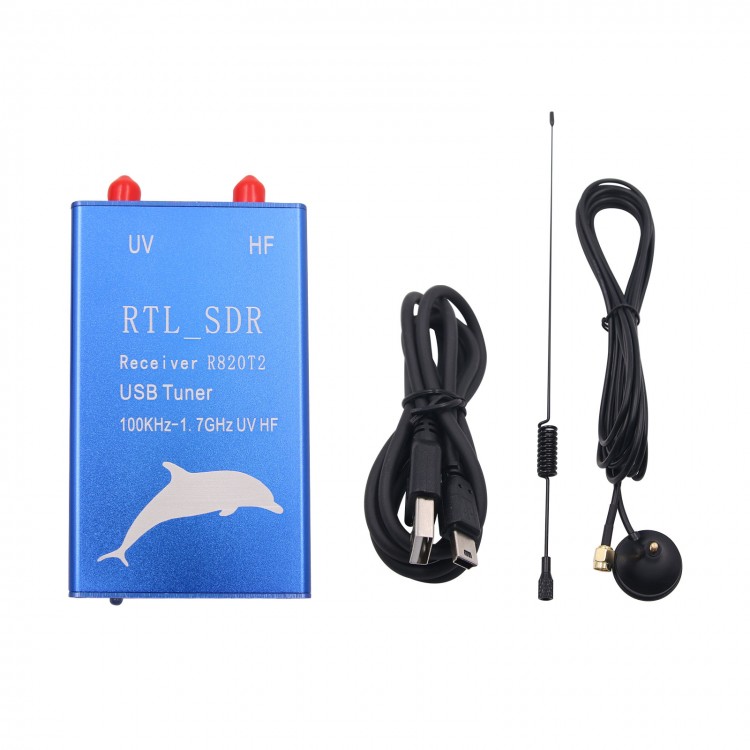

Package Included:
- 1 x 100KHz-1.7GHz UV HF RTL SDR + USB Receiver R820T Radio Receiver
- 1 x Telescopic Antenna
